Suzuki DT 85 Parts Listings 1988 to 2000

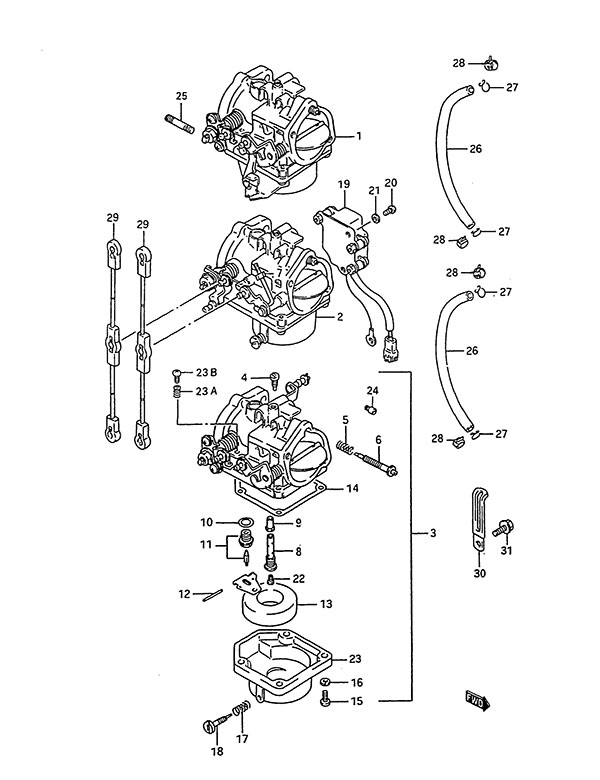

Fig. 5 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-956P3 Top Carburetor Assembly (NLA)
SKU: 13201-956P3 Weight: 1.000000 Brand: Price: $ 295.78 |
Top Carburetor Assembly (NLA) | 1 | $ 295.78 | 1988 to 1997 | |
| 1-2 | 13201-956U0 Top Carburetor Assembly (NLA)
SKU: 13201-956U0 Weight: 1.000000 Brand: Price: $ 309.82 |
Top Carburetor Assembly (NLA) | 1 | $ 309.82 | 1998 to 2000 | |
| 2-1 | 13202-956H0 2nd Carburetor Assembly (NLA)
SKU: 13202-956H0 Weight: 0.100000 Brand: Price: $ 393.05 |
2nd Carburetor Assembly (NLA) | 1 | $ 393.05 | S/N 922553 Older | |
| 2-2 | 13202-956P5 2nd Carburetor Assembly
SKU: 13202-956P5 Weight: 1.500000 Brand: Price: $ 648.92 |
2nd Carburetor Assembly | 1 | $ 648.92 | S/N 922554 Newer | |
| 2-3 | 13202-956U0 2nd Carburetor Assembly (NLA)
SKU: 13202-956U0 Weight: 1.000000 Brand: Price: $ 519.14 |
2nd Carburetor Assembly (NLA) | 1 | $ 519.14 | 1998 to 2000 | |
| 3-1 | 13203-956H0 3rd Carburetor Assembly (NLA)
SKU: 13203-956H0 Weight: 0.100000 Brand: Price: $ 311.18 |
3rd Carburetor Assembly (NLA) | 1 | $ 311.18 | S/N 922553 Older | |
| 3-2 | 13203-956P3 3rd Carburetor Assembly (NLA)
SKU: 13203-956P3 Weight: 1.500000 Brand: Price: $ 414.80 |
3rd Carburetor Assembly (NLA) | 1 | $ 414.80 | S/N 922554 Newer | |
| 3-3 | 13203-956U0 3rd Carburetor Assembly (NLA)
SKU: 13203-956U0 Weight: 1.000000 Brand: Price: $ 370.45 |
3rd Carburetor Assembly (NLA) | 1 | $ 370.45 | 1998 to 2000 | |
| 4-1 | 09492-80005 Pilot Jet #80
SKU: 09492-80005 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #80 | 3 | $ 10.00 | 1988 to 1990 | |
| 4-2 | 09492-75001 Pilot Jet #75
SKU: 09492-75001 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #75 | 3 | $ 10.00 | 1991 to 1997 | |
| 4-3 | 09492-20025 Pilot Jet #100 (NLA)
SKU: 09492-20025 Weight: 0.100000 Brand: Price: $ 11.14 |
Pilot Jet #100 (NLA) | 1 | $ 11.14 | Carb# 1 1998 to 2000 | |
| 4-4 | 09492-22017 Pilot Jet #110 (NLA)
SKU: 09492-22017 Weight: 0.100000 Brand: Price: $ 8.36 |
Pilot Jet #110 (NLA) | 1 | $ 8.36 | Carb# 2 1998 to 2000 | |
| 4-5 | 09492-23002 Pilot Jet #115 (NLA)
SKU: 09492-23002 Weight: 0.100000 Brand: Price: $ 6.60 |
Pilot Jet #115 (NLA) | 1 | $ 6.60 | Carb# 3 1998 to 2000 | |
| 5 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 6-1 | 13269-93311 Pilot Air Screw
SKU: 13269-93311 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 3 | $ 8.28 | 1988 to 1996 | |
| 6-2 | 13269-95210 Pilot Air Screw
SKU: 13269-95210 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 3 | $ 8.28 | 1991 to 1997 | |
| 6-3 | 13269-98100 Pilot Air Screw
SKU: 13269-98100 Weight: 0.060000 Brand: Price: $ 6.87 |
Pilot Air Screw | 1 | $ 6.87 | Carb# 1 1998 to 2000 | |
| 6-4 | 13269-95600 Pilot Air Screw (NLA)
SKU: 13269-95600 Weight: 0.100000 Brand: Price: $ 4.79 |
Pilot Air Screw (NLA) | 1 | $ 4.79 | Carb# 2 1998 to 2000 | |
| 7 | 13582-95216 Nut (NLA)
SKU: 13582-95216 Weight: 0.100000 Brand: Price: $ 3.88 |
Nut (NLA) | 1 | $ 3.88 | Carb# 2 | |
| 8-1 | 13236-96300 Main Nozzle
SKU: 13236-96300 Weight: 0.125000 Brand: Price: $ 24.25 |
Main Nozzle | 3 | $ 24.25 | 1988 to 1990 | |
| 8-2 | 13236-94410 Main Nozzle (NLA)
SKU: 13236-94410 Weight: 0.060000 Brand: Price: $ 20.09 |
Main Nozzle (NLA) | 3 | $ 20.09 | 1991 to 1997 | |
| 8-3 | 13236-95610 Main Nozzle
SKU: 13236-95610 Weight: 0.100000 Brand: Price: $ 21.44 |
Main Nozzle | 3 | $ 21.44 | 1998 to 2000 | |
| 9 | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.47 |
Upper Nozzle | 3 | $ 3.47 | ||
| 10 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 3 | $ 1.91 | ||
| 11 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 3 | $ 49.35 | ||
| 12 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 3 | $ 3.28 | ||
| 13 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 3 | $ 20.17 | ||
| 14 | 13251-95220 Float Chamber Gasket
SKU: 13251-95220 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 3 | $ 8.56 | ||
| 15 | 13249-95520 Screw (NLA)
SKU: 13249-95520 Weight: 0.060000 Brand: Price: $ 2.35 |
Screw (NLA) | 12 | $ 2.35 | ||
| 16 | 09162-05002 Lock Washer
SKU: 09162-05002 Weight: 0.125000 Brand: Price: $ 1.27 |
Lock Washer | 12 | $ 1.27 | ||
| 17 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 18 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 3 | $ 7.95 | ||
| 19 | 37810-95606 Throttle Valve Sensor Assembly
SKU: 37810-95606 Weight: 0.180000 Brand: Price: $ 232.07 |
Throttle Valve Sensor Assembly | 1 | $ 232.07 | ||
| 20 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 21 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | ||
| 22-1 | 09491-31007 Main Jet #157.5 (NLA)
SKU: 09491-31007 Weight: 0.100000 Brand: Price: $ 4.37 |
Main Jet #157.5 (NLA) | 3 | $ 4.37 | 1988 to 1994 | |
| 22-2 | 09491-34007 Main Jet #170
SKU: 09491-34007 Weight: 0.100000 Brand: Price: $ 11.31 |
Main Jet #170 | 2 | $ 11.31 | Carb# 1 1995 to 1997 Carb# 3 1995 to 1997 | |
| 22-3 | 09491-36005 Main Jet #180
SKU: 09491-36005 Weight: 0.060000 Brand: Price: $ 10.63 |
Main Jet #180 | 1 | $ 10.63 | Carb# 2 1995 to 1997 | |
| 22-4 | 09491-33007 Main Jet #167.5 (NLA)
SKU: 09491-33007 Weight: 0.060000 Brand: Price: $ 12.02 |
Main Jet #167.5 (NLA) | 1 | $ 12.02 | Carb# 1 1998 to 2000 | |
| 22-5 | 09491-34008 Main Jet #170 (NLA)
SKU: 09491-34008 Weight: 0.100000 Brand: Price: $ 6.60 |
Main Jet #170 (NLA) | 1 | $ 6.60 | Carb# 2 1998 to 2000 | |
| 22-6 | 09491-31014 Main Jet #155
SKU: 09491-31014 Weight: 0.200000 Brand: Price: $ 16.47 |
Main Jet #155 | 1 | $ 16.47 | Carb# 3 1998 to 2000 | |
| 23 | 13245-95210 Float Chamber (NLA)
SKU: 13245-95210 Weight: 0.100000 Brand: Price: $ 48.93 |
Float Chamber (NLA) | 3 | $ 48.93 | ||
| 23A | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 2 | $ 4.61 | ||
| 23B | 13534-95D00 Screw
SKU: 13534-95D00 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 24-1 | 09493-20007 Air Jet #1.0
SKU: 09493-20007 Weight: 0.060000 Brand: Price: $ 12.75 |
Air Jet #1.0 | 1 | $ 12.75 | Carb# 1 1998 to 2000 | |
| 24-2 | 09493-26004 Air Jet #1.3
SKU: 09493-26004 Weight: 0.060000 Brand: Price: $ 15.28 |
Air Jet #1.3 | 1 | $ 15.28 | Carb# 2 1998 to 2000 | |
| 24-3 | 09493-18001 Air Jet #0.9 (NLA)
SKU: 09493-18001 Weight: 0.060000 Brand: Price: $ 11.35 |
Air Jet #0.9 (NLA) | 1 | $ 11.35 | Carb# 3 1998 to 2000 | |
| 25 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 3 | $ 2.03 | ||
| 26 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->110 | |
| 27 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 4 | $ 1.86 | 1988 to 1990 | |
| 28 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 2000 | |
| 29 | 13510-94700 Throttle Rod Assembly (NLA)
SKU: 13510-94700 Weight: 0.060000 Brand: Price: $ 9.73 |
Throttle Rod Assembly (NLA) | 2 | $ 9.73 | ||
| 30 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 31 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 32 | 13910-94400 Carburetor Repair Kit
SKU: 13910-94400 Weight: 0.080000 Brand: Price: $ 34.42 |
Carburetor Repair Kit | 3 | $ 34.42 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
