Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

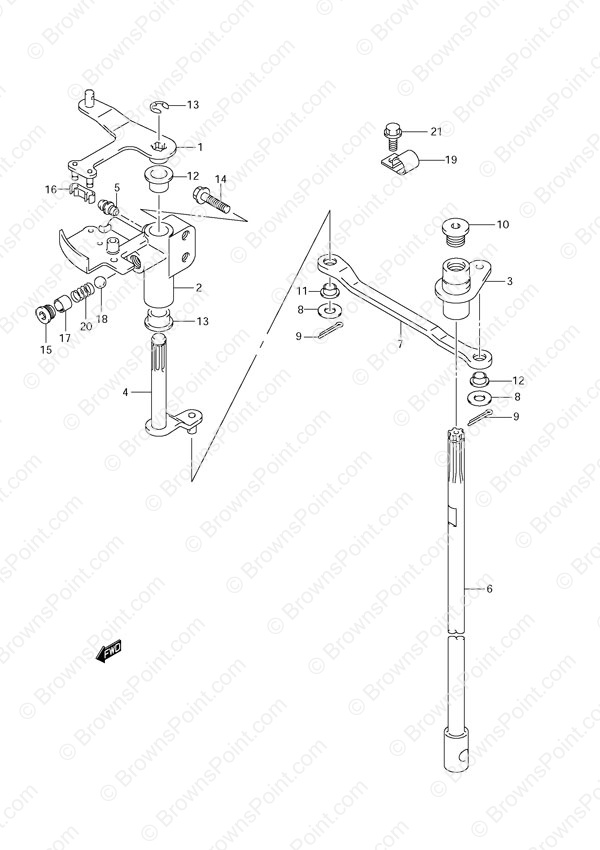

Fig. 22 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-92J00 Clutch Lever
SKU: 21110-92J00 Weight: 0.250000 Brand: Price: $ 68.00 |
Clutch Lever | 1 | $ 68.00 | ||
| 2 | 21151-92J00 Clutch Lever Holder
SKU: 21151-92J00 Weight: 0.100000 Brand: Price: $ 56.38 |
Clutch Lever Holder | 1 | $ 56.38 | ||
| 3 | 21210-92J00 Clutch Shaft
SKU: 21210-92J00 Weight: 0.140000 Brand: Price: $ 56.14 |
Clutch Shaft | 1 | $ 56.14 | ||
| 4 | 21230-92J02 ARM COMP,CLUTCH
SKU: 21230-92J02 Weight: 0.000000 Brand: Price: $ 47.82 |
ARM COMP,CLUTCH | 1 | $ 47.82 | ||
| 5 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 6-1 | 23111-90J02 Clutch Rod (L)
SKU: 23111-90J02 Weight: 1.000000 Brand: Price: $ 81.27 |
Clutch Rod (L) | 1 | $ 81.27 | DF140T | |
| 6-2 | 23111-90J12 Clutch Rod (X)
SKU: 23111-90J12 Weight: 0.840000 Brand: Price: $ 84.90 |
Clutch Rod (X) | 1 | $ 84.90 | DF140T DF140Z | |
| 7 | 23115-92J00 Clutch Lever Link
SKU: 23115-92J00 Weight: 0.250000 Brand: Price: $ 12.25 |
Clutch Lever Link | 1 | $ 12.25 | ||
| 8 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | ||
| 9 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 10 | 09248-12005 Plug
SKU: 09248-12005 Weight: 0.060000 Brand: Price: $ 3.54 |
Plug | 1 | $ 3.54 | ||
| 11 | 09306-06004 Bushing
SKU: 09306-06004 Weight: 0.060000 Brand: Price: $ 1.38 |
Bushing | 2 | $ 1.38 | ||
| 12 | 09306-10001 Bushing
SKU: 09306-10001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 13 | 09383-08004 E Ring
SKU: 09383-08004 Weight: 0.060000 Brand: Price: $ 0.91 |
E Ring | 1 | $ 0.91 | ||
| 14 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 15 | 11118-95J00 Notch Spring Plug
SKU: 11118-95J00 Weight: 0.100000 Brand: Price: $ 7.06 |
Notch Spring Plug | 1 | $ 7.06 | ||
| 16 | 21131-93J00 Clutch Lever Bushing
SKU: 21131-93J00 Weight: 0.060000 Brand: Price: $ 1.72 |
Clutch Lever Bushing | 1 | $ 1.72 | ||
| 17 | 09205-10006 Pin (10.2x10)
SKU: 09205-10006 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (10.2x10) | 1 | $ 4.47 | ||
| 18 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 19 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 20 | 09440-07071 Spring
SKU: 09440-07071 Weight: 0.060000 Brand: Price: $ 5.53 |
Spring | 1 | $ 5.53 | ||
| 21 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
