Suzuki DT 85 Parts Listings 1988 to 2000

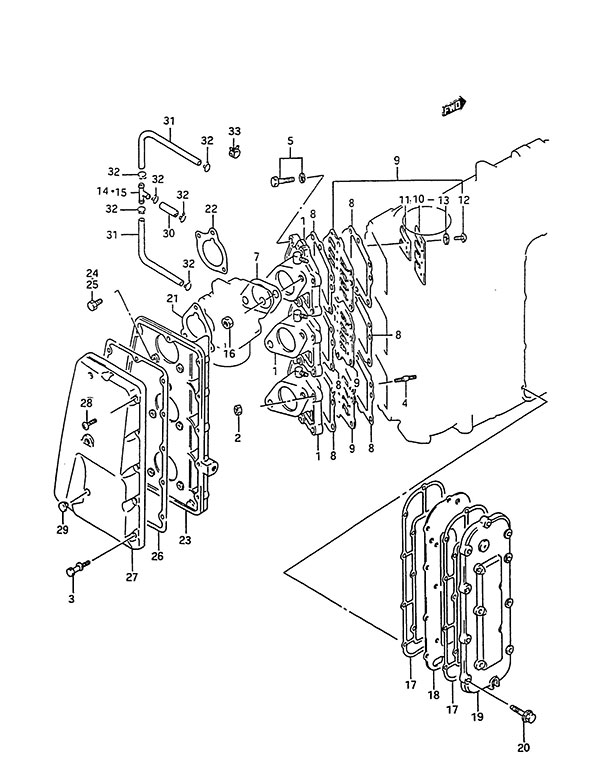

Fig. 3 - Inlet Case - Exhaust Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13110-95602-0ED Inlet Case (NLA)
SKU: 13110-95602-0ED Weight: 0.100000 Brand: Price: $ 36.43 |
Inlet Case (NLA) | 3 | $ 36.43 | 1988 to 1990 | |
| 1-2 | 13110-95640-0ED Inlet Case (NLA)
SKU: 13110-95640-0ED Weight: 0.100000 Brand: Price: $ 36.11 |
Inlet Case (NLA) | 3 | $ 36.11 | 1991 to 1994 | |
| 1-3 | 13110-95670-0ED Inlet Case
SKU: 13110-95670-0ED Weight: 1.000000 Brand: Price: $ 74.77 |
Inlet Case | 1 | $ 74.77 | 1995 to 1997 | |
| 1-4 | 13111-95680-0ED Inlet Case (NLA)
SKU: 13111-95680-0ED Weight: 1.000000 Brand: Price: $ 55.80 |
Inlet Case (NLA) | 3 | $ 55.80 | 1998 to 2000 | |
| 2 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 6 | $ 2.25 | ||
| 3 | 09139-05041 Screw (NLA)
SKU: 09139-05041 Weight: 0.100000 Brand: Price: $ 5.83 |
Screw (NLA) | 1 | $ 5.83 | ||
| 4 | 01421-06257 BOLT, STUD
SKU: 01421-06257 Weight: 0.125000 Brand: Price: $ 2.62 |
BOLT, STUD | 6 | $ 2.62 | ||
| 5 | 01570-06307 Bolt (NLA)
SKU: 01570-06307 Weight: 0.100000 Brand: Price: $ 1.85 |
Bolt (NLA) | 12 | $ 1.85 | ||
| 7 | 13125-95210 Carburetor Gasket
SKU: 13125-95210 Weight: 0.060000 Brand: Price: $ 4.33 |
Carburetor Gasket | 3 | $ 4.33 | ||
| 8 | 13121-95520 Inlet Case Gasket (NLA)
SKU: 13121-95520 Weight: 0.060000 Brand: Price: $ 4.96 |
Inlet Case Gasket (NLA) | 6 | $ 4.96 | ||
| 9 | 13150-95510 Reed Valve Assembly (NLA)
SKU: 13150-95510 Weight: 0.350000 Brand: Price: $ 69.26 |
Reed Valve Assembly (NLA) | 3 | $ 69.26 | ||
| 10 | 13152-95500 Reed Valve Stopper (NLA)
SKU: 13152-95500 Weight: 0.100000 Brand: Price: $ 2.38 |
Reed Valve Stopper (NLA) | 12 | $ 2.38 | ||
| 11 | 13153-95501 Reed Valve
SKU: 13153-95501 Weight: 0.060000 Brand: Price: $ 7.91 |
Reed Valve | 12 | $ 7.91 | ||
| 12 | 02112-0306B SCREW
SKU: 02112-0306B Weight: 0.060000 Brand: Price: $ 1.60 |
SCREW | 24 | $ 1.60 | ||
| 13 | 08321-2103B Lock Washer
SKU: 08321-2103B Weight: 0.100000 Brand: Price: $ 1.43 |
Lock Washer | 24 | $ 1.43 | ||
| 14 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | 1988 to 1990 | |
| 15 | 09367-08004 3 Way
SKU: 09367-08004 Weight: 0.100000 Brand: Price: $ 4.19 |
3 Way | 1 | $ 4.19 | 1991 to 2000 | |
| 16 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 6 | $ 2.27 | ||
| 17 | 14151-95611 Exhaust Cover Gasket
SKU: 14151-95611 Weight: 0.080000 Brand: Price: $ 19.56 |
Exhaust Cover Gasket | 2 | $ 19.56 | ||
| 18 | 14131-95600 Exhaust Plate (NLA)
SKU: 14131-95600 Weight: 0.500000 Brand: Price: $ 42.72 |
Exhaust Plate (NLA) | 1 | $ 42.72 | ||
| 19 | 14141-95600-0ED Exhaust Cover (NLA)
SKU: 14141-95600-0ED Weight: 0.100000 Brand: Price: $ 62.66 |
Exhaust Cover (NLA) | 1 | $ 62.66 | ||
| 20 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 15 | $ 2.74 | ||
| 22 | 13855-95210 Silencer Gasket
SKU: 13855-95210 Weight: 0.060000 Brand: Price: $ 3.99 |
Silencer Gasket | 3 | $ 3.99 | ||
| 23 | 13811-94700 Silencer Case (NLA)
SKU: 13811-94700 Weight: 0.800000 Brand: Price: $ 45.65 |
Silencer Case (NLA) | 1 | $ 45.65 | ||
| 25 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 26 | 13853-94710 Silencer Cover Gasket (NLA)
SKU: 13853-94710 Weight: 0.200000 Brand: Price: $ 9.45 |
Silencer Cover Gasket (NLA) | 1 | $ 9.45 | ||
| 27 | 13812-94700 Silencer Cover (NLA)
SKU: 13812-94700 Weight: 0.340000 Brand: Price: $ 48.73 |
Silencer Cover (NLA) | 1 | $ 48.73 | ||
| 28 | 02142-05207 SCREW
SKU: 02142-05207 Weight: 0.060000 Brand: Price: $ 1.43 |
SCREW | 10 | $ 1.43 | ||
| 29 | 09250-15010 Plug
SKU: 09250-15010 Weight: 0.060000 Brand: Price: $ 1.88 |
Plug | 3 | $ 1.88 | ||
| 30-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 1988 to 1990 L:600->45 | |
| 30-2 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 1 | $ 13.02 | 1991 to 2000 L:600->50 | |
| 31-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | 1988 to 1990 L:600->125 | |
| 31-2 | 44421-12FR0 Hose (6.5x11.5x600)
SKU: 44421-12FR0 Weight: 0.180000 Brand: Price: $ 13.02 |
Hose (6.5x11.5x600) | 2 | $ 13.02 | 1991 to 2000 L:600->130 | |
| 32 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 6 | $ 1.86 | 1988 to 1990 | |
| 33 | 09401-11415 Clip
SKU: 09401-11415 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 6 | $ 2.27 | 1991 to 2000 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
