Suzuki DT 85 Parts Listings 1988 to 2000

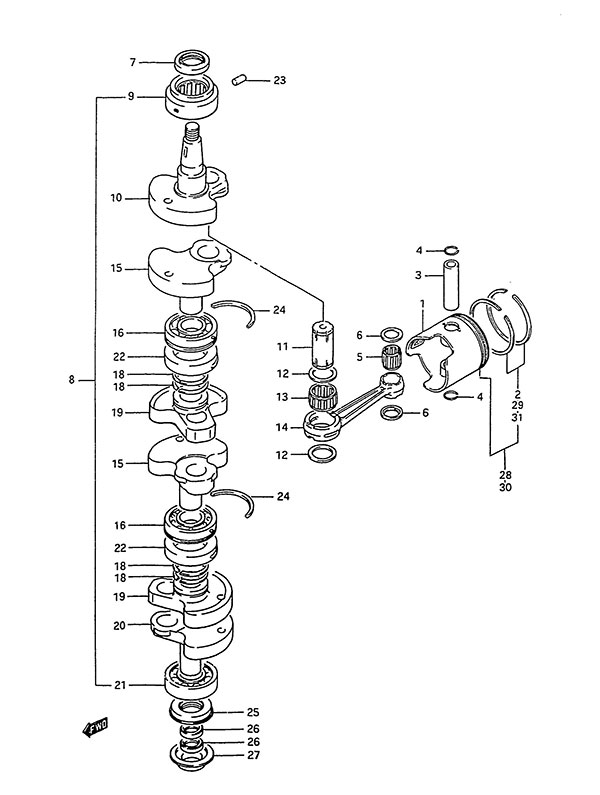

Fig. 2 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12110-95516 Piston
SKU: 12110-95516 Weight: 0.960000 Brand: Price: $ 105.86 |
Piston | 3 | $ 105.86 | ||
| 2 | 12140-95302 Piston Ring Set (NLA)
SKU: 12140-95302 Weight: 0.250000 Brand: Price: $ 39.44 |
Piston Ring Set (NLA) | 3 | $ 39.44 | ||
| 3 | 12151-87E01 Piston Pin
SKU: 12151-87E01 Weight: 0.200000 Brand: Price: $ 16.86 |
Piston Pin | 3 | $ 16.86 | ||
| 4 | 09381-20004 Circlip
SKU: 09381-20004 Weight: 0.060000 Brand: Price: $ 1.66 |
Circlip | 6 | $ 1.66 | ||
| 5 | 09263-20034 RN 20x25x27.9 Bearing
SKU: 09263-20034 Weight: 0.080000 Brand: Price: $ 17.19 |
RN 20x25x27.9 Bearing | 3 | $ 17.19 | ||
| 6 | 09169-20001 Washer
SKU: 09169-20001 Weight: 0.060000 Brand: Price: $ 3.68 |
Washer | 6 | $ 3.68 | ||
| 7 | 09283-30029 Oil Seal
SKU: 09283-30029 Weight: 0.060000 Brand: Price: $ 7.70 |
Oil Seal | 1 | $ 7.70 | ||
| 8 | 12200-95640 Crankshaft Assembly (NLA)
SKU: 12200-95640 Weight: 39.600000 Brand: Price: $ 1,331.71 |
Crankshaft Assembly (NLA) | 1 | $ 1,331.71 | ||
| 9 | 09264-40001 Bearing (40x72x33) (NLA)
SKU: 09264-40001 Weight: 1.220000 Brand: Price: $ 144.30 |
Bearing (40x72x33) (NLA) | 1 | $ 144.30 | ||
| 10 | 12221-95503 Upper Crankshaft (NLA)
SKU: 12221-95503 Weight: 10.000000 Brand: Price: $ 125.66 |
Upper Crankshaft (NLA) | 1 | $ 125.66 | ||
| 11 | 12211-95503 Crankshaft Pin
SKU: 12211-95503 Weight: 0.250000 Brand: Price: $ 50.88 |
Crankshaft Pin | 3 | $ 50.88 | ||
| 12 | 09181-28184 Thrust Washer (1.50) (NLA)
SKU: 09181-28184 Weight: 0.060000 Brand: Price: $ 3.91 |
Thrust Washer (1.50) (NLA) | 6 | $ 3.91 | ||
| 13 | 09263-28018 RN 26x37x20.8 Bearing
SKU: 09263-28018 Weight: 0.120000 Brand: Price: $ 52.14 |
RN 26x37x20.8 Bearing | 3 | $ 52.14 | ||
| 14 | 12161-95301 Connecting Rod
SKU: 12161-95301 Weight: 0.650000 Brand: Price: $ 115.00 |
Connecting Rod | 3 | $ 115.00 | ||
| 15 | 12231-95502 Middle Upper Crankshaft (NLA)
SKU: 12231-95502 Weight: 0.100000 Brand: Price: $ 95.15 |
Middle Upper Crankshaft (NLA) | 2 | $ 95.15 | ||
| 16 | 09269-30012 Bearing (30x72x19)(NLA)
SKU: 09269-30012 Weight: 0.800000 Brand: Price: $ 101.66 |
Bearing (30x72x19)(NLA) | 2 | $ 101.66 | ||
| 18 | 12323-95600 Ring Seal
SKU: 12323-95600 Weight: 0.100000 Brand: Price: $ 8.21 |
Ring Seal | 4 | $ 8.21 | 1988 to 1992 | |
| 19 | 12232-95600 Middle Crankshaft Wheel (NLA)
SKU: 12232-95600 Weight: 10.000000 Brand: Price: $ 169.78 |
Middle Crankshaft Wheel (NLA) | 2 | $ 169.78 | ||
| 20 | 12240-95504 Lower Crankshaft (NLA)
SKU: 12240-95504 Weight: 0.100000 Brand: Price: $ 95.15 |
Lower Crankshaft (NLA) | 1 | $ 95.15 | ||
| 21 | 09262-30055 B1 30x72x19 Bearing
SKU: 09262-30055 Weight: 0.800000 Brand: Price: $ 54.03 |
B1 30x72x19 Bearing | 1 | $ 54.03 | ||
| 22 | 12324-95600 Outer Seal
SKU: 12324-95600 Weight: 0.200000 Brand: Price: $ 17.44 |
Outer Seal | 2 | $ 17.44 | 1988 to 1992 | |
| 23 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 1 | $ 1.11 | ||
| 24 | 09390-72008 C Ring
SKU: 09390-72008 Weight: 0.060000 Brand: Price: $ 3.02 |
C Ring | 2 | $ 3.02 | ||
| 25 | 09283-30077 Oil Seal (30x55x8x)
SKU: 09283-30077 Weight: 0.060000 Brand: Price: $ 13.59 |
Oil Seal (30x55x8x) | 1 | $ 13.59 | ||
| 26 | 09282-20003 Oil Seal (20x30x6)(NLA)
SKU: 09282-20003 Weight: 0.060000 Brand: Price: $ 4.39 |
Oil Seal (20x30x6)(NLA) | 2 | $ 4.39 | ||
| 27 | 11431-95502 Under Oil Seal Housing
SKU: 11431-95502 Weight: 0.100000 Brand: Price: $ 175.02 |
Under Oil Seal Housing | 1 | $ 175.02 | ||
| 28 | 12100-95331-025 Piston & Ring Set (OS:0.25)(NLA)
SKU: 12100-95331-025 Weight: 1.060000 Brand: Price: $ 123.96 |
Piston & Ring Set (OS:0.25)(NLA) | 3 | $ 123.96 | Optional | |
| 29 | 12140-95320-025 Piston Ring Set (OS:0.25)(NLA)
SKU: 12140-95320-025 Weight: 0.250000 Brand: Price: $ 41.79 |
Piston Ring Set (OS:0.25)(NLA) | 3 | $ 41.79 | Optional | |
| 30 | 12100-95331-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-95331-050 Weight: 1.060000 Brand: Price: $ 137.90 |
Piston & Ring Set (OS:0.50) (NLA) | 3 | $ 137.90 | Optional | |
| 31 | 12140-95320-050 Piston Ring Set (OS:0.50)
SKU: 12140-95320-050 Weight: 0.250000 Brand: Price: $ 43.05 |
Piston Ring Set (OS:0.50) | 3 | $ 43.05 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
