Suzuki DT 5 Parts Listings 1999 to 2001

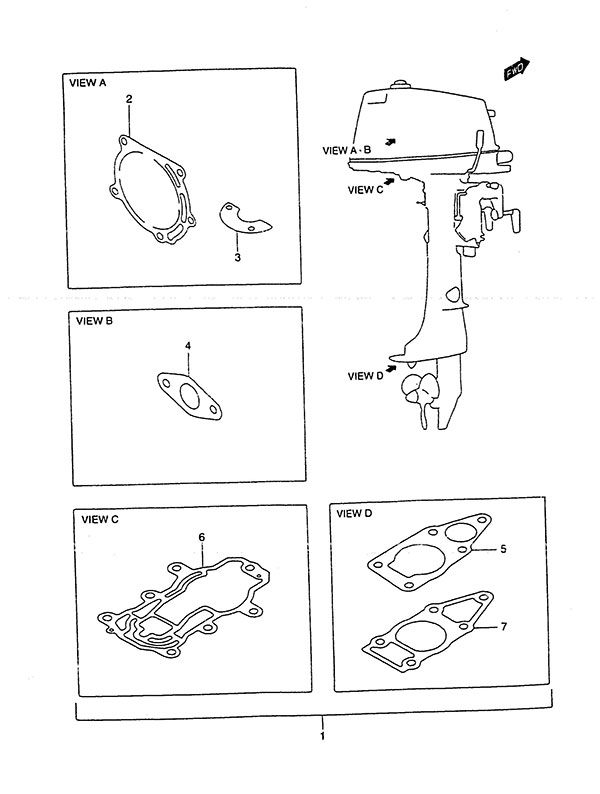

Fig. 47 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-98802 Engine Gasket Set
SKU: 11400-98802 Weight: 2.000000 Brand: Price: $ 46.91 |
Engine Gasket Set | 1 | $ 46.91 | ||
| 2 | 11141-986A0 Cylinder Head Gasket
SKU: 11141-986A0 Weight: 0.200000 Brand: Price: $ 17.89 |
Cylinder Head Gasket | 1 | $ 17.89 | ||
| 3 | 11219-98610 Water Jacket Gasket
SKU: 11219-98610 Weight: 0.060000 Brand: Price: $ 3.19 |
Water Jacket Gasket | 1 | $ 3.19 | ||
| 4 | 13125-90C10 Carburetor Gasket
SKU: 13125-90C10 Weight: 0.060000 Brand: Price: $ 4.13 |
Carburetor Gasket | 2 | $ 4.13 | ||
| 5 | 17472-98611 Water Pump Plate Gasket
SKU: 17472-98611 Weight: 0.060000 Brand: Price: $ 2.82 |
Water Pump Plate Gasket | 1 | $ 2.82 | ||
| 6 | 52113-98610 Drive Shaft Housing Gasket
SKU: 52113-98610 Weight: 0.080000 Brand: Price: $ 16.29 |
Drive Shaft Housing Gasket | 1 | $ 16.29 | ||
| 7 | 56132-98610 Drive Shaft Housing Gasket
SKU: 56132-98610 Weight: 0.060000 Brand: Price: $ 5.97 |
Drive Shaft Housing Gasket | 1 | $ 5.97 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
