Suzuki DT 5 Parts Listings 1999 to 2001

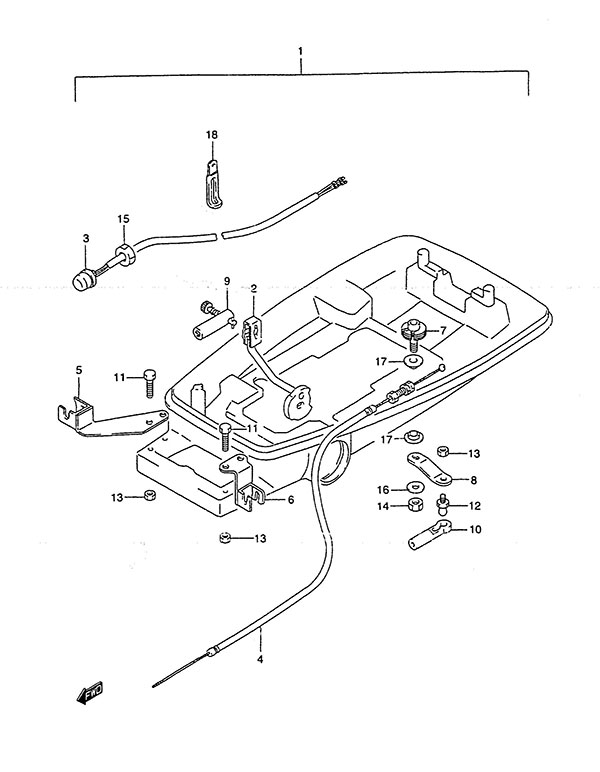

Fig. 45 - Opt: Remote Control Parts
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-98820 Remote Control Parts Set (NLA)
SKU: 67130-98820 Weight: 0.100000 Brand: Price: $ 116.98 |
Remote Control Parts Set (NLA) | 1 | $ 116.98 | ||
| 2 | 21110-98650 Clutch Lever (NLA)
SKU: 21110-98650 Weight: 0.100000 Brand: Price: $ 24.54 |
Clutch Lever (NLA) | 1 | $ 24.54 | ||
| 3 | 37800-93714 Engine Stop Switch Assembly (NLA)
SKU: 37800-93714 Weight: 0.100000 Brand: Price: $ 26.37 |
Engine Stop Switch Assembly (NLA) | 1 | $ 26.37 | ||
| 4 | 63610-98610 Throttle Cable Assembly (NLA)
SKU: 63610-98610 Weight: 0.100000 Brand: Price: $ 21.51 |
Throttle Cable Assembly (NLA) | 1 | $ 21.51 | ||
| 5 | 67340-98600 Remocon Cable Holder (NLA)
SKU: 67340-98600 Weight: 0.100000 Brand: Price: $ 21.26 |
Remocon Cable Holder (NLA) | 1 | $ 21.26 | ||
| 6 | 67340-98610 Remocon Cable Holder (NLA)
SKU: 67340-98610 Weight: 0.100000 Brand: Price: $ 18.64 |
Remocon Cable Holder (NLA) | 1 | $ 18.64 | ||
| 7 | 67410-98600 Remocon Throttle Shaft (NLA)
SKU: 67410-98600 Weight: 0.100000 Brand: Price: $ 33.88 |
Remocon Throttle Shaft (NLA) | 1 | $ 33.88 | ||
| 8 | 67412-98600 Remocon Throttle Lever (NLA)
SKU: 67412-98600 Weight: 0.100000 Brand: Price: $ 7.01 |
Remocon Throttle Lever (NLA) | 1 | $ 7.01 | ||
| 9 | 67440-93701 Clutch Cable Guide
SKU: 67440-93701 Weight: 0.060000 Brand: Price: $ 29.11 |
Clutch Cable Guide | 1 | $ 29.11 | ||
| 10 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | ||
| 11 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 4 | $ 2.10 | ||
| 12 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 | ||
| 13 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 5 | $ 1.82 | ||
| 14 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 15 | 09140-14030 Nut (NLA)
SKU: 09140-14030 Weight: 0.060000 Brand: Price: $ 3.29 |
Nut (NLA) | 1 | $ 3.29 | ||
| 16 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 17 | 09306-08002 Bushing (NLA)
SKU: 09306-08002 Weight: 0.100000 Brand: Price: $ 0.95 |
Bushing (NLA) | 2 | $ 0.95 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
