Suzuki DT 5 Parts Listings 1999 to 2001

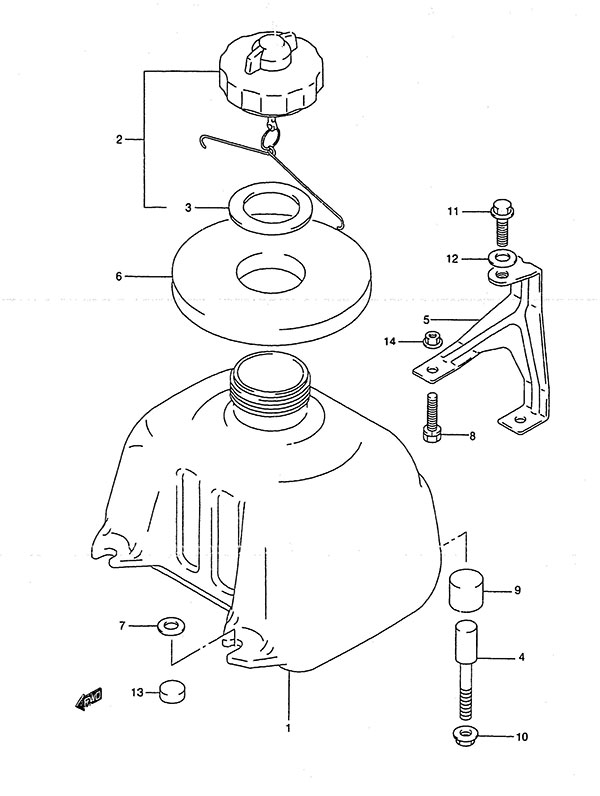

Fig. 31 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65111-98624 Fuel Tank
SKU: 65111-98624 Weight: 0.100000 Brand: Price: $ 89.83 |
Fuel Tank | 1 | $ 89.83 | ||
| 2 | 65510-91J02 Fuel Tank Cap Assembly
SKU: 65510-91J02 Weight: 0.120000 Brand: Price: $ 29.78 |
Fuel Tank Cap Assembly | 1 | $ 29.78 | ||
| 3 | 09168-32003 Tank Cap Gasket
SKU: 09168-32003 Weight: 0.060000 Brand: Price: $ 2.05 |
Tank Cap Gasket | 1 | $ 2.05 | ||
| 4 | 09119-06097 Bolt
SKU: 09119-06097 Weight: 0.100000 Brand: Price: $ 8.41 |
Bolt | 2 | $ 8.41 | ||
| 5-1 | 65260-98610 Fuel Tank Bracket (NLA)
SKU: 65260-98610 Weight: 0.100000 Brand: Price: $ 8.24 |
Fuel Tank Bracket (NLA) | 1 | $ 8.24 | S/N 031487 Older | |
| 5-2 | 65260-98620 Fuel Tank Bracket (NLA)
SKU: 65260-98620 Weight: 0.100000 Brand: Price: $ 7.50 |
Fuel Tank Bracket (NLA) | 1 | $ 7.50 | S/N 031488 Newer | |
| 6 | 65281-98610 Fuel Tank Grommet (NLA)
SKU: 65281-98610 Weight: 0.100000 Brand: Price: $ 8.44 |
Fuel Tank Grommet (NLA) | 1 | $ 8.44 | ||
| 7 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | 1999 | |
| 8-1 | 01570-06257 BOLT
SKU: 01570-06257 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 2 | $ 2.62 | 1999 to 2000 | |
| 8-2 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | 2001 | |
| 9 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 2 | $ 2.67 | ||
| 10-1 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | 1999 to 2000 | |
| 10-2 | 09159-06084 Nut (NLA)
SKU: 09159-06084 Weight: 0.100000 Brand: Price: $ 1.62 |
Nut (NLA) | 2 | $ 1.62 | 2001 | |
| 11-1 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | S/N 032360 Older | |
| 11-2 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | S/N 032361 Newer | |
| 12 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | ||
| 13 | 09329-06002 Cushion (NLA)
SKU: 09329-06002 Weight: 0.100000 Brand: Price: $ 1.38 |
Cushion (NLA) | 1 | $ 1.38 | ||
| 14 | 09159-06084 Nut (NLA)
SKU: 09159-06084 Weight: 0.100000 Brand: Price: $ 1.62 |
Nut (NLA) | 2 | $ 1.62 | S/N 031488 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
