Suzuki DT 5 Parts Listings 1999 to 2001

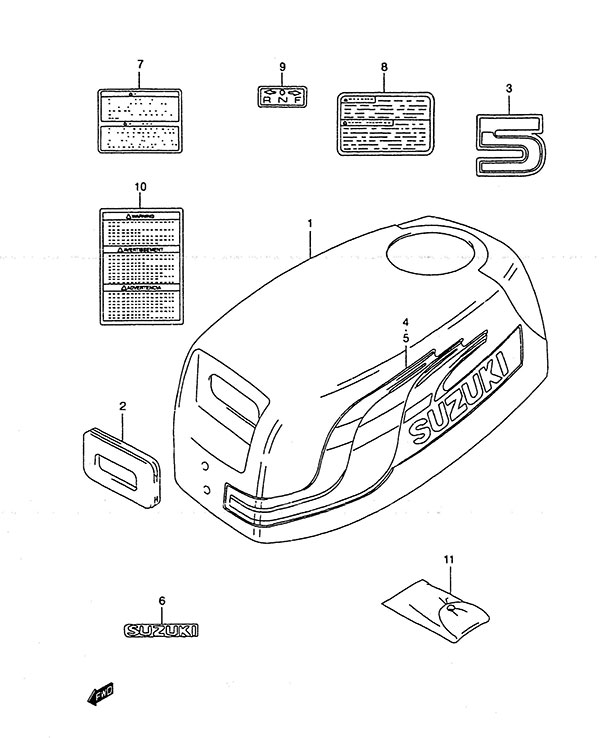

Fig. 28 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-986A0-0EM Engine Cover Assembly
SKU: 61410-986A0-0EM Weight: 4.000000 Brand: Price: $ 247.34 |
Engine Cover Assembly | 1 | $ 247.34 | ||
| 2 | 61622-98600 Recoil Starter Seal (NLA)
SKU: 61622-98600 Weight: 0.100000 Brand: Price: $ 5.18 |
Recoil Starter Seal (NLA) | 1 | $ 5.18 | ||
| 3 | 61435-981A2 Rear Engine Cover Mark (NLA)
SKU: 61435-981A2 Weight: 0.100000 Brand: Price: $ 11.89 |
Rear Engine Cover Mark (NLA) | 1 | $ 11.89 | ||
| 4 | 61443-986A0 Starboard Engine Cover Stripe
SKU: 61443-986A0 Weight: 0.200000 Brand: Price: $ 22.56 |
Starboard Engine Cover Stripe | 1 | $ 22.56 | ||
| 5 | 61453-986A0 Port Engine Cover Stripe
SKU: 61453-986A0 Weight: 0.100000 Brand: Price: $ 29.09 |
Port Engine Cover Stripe | 1 | $ 29.09 | ||
| 6 | 68166-98600-0JW Suzuki Emblem (NLA)
SKU: 68166-98600-0JW Weight: 0.100000 Brand: Price: $ 4.94 |
Suzuki Emblem (NLA) | 1 | $ 4.94 | ||
| 7 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | 1999 to 2000 | |
| 8 | 61582-98100 Warning Mark (NLA)
SKU: 61582-98100 Weight: 0.060000 Brand: Price: $ 4.70 |
Warning Mark (NLA) | 1 | $ 4.70 | 1999 to 2000 | |
| 9 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 10 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | 2001 | |
| 11 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
