Suzuki DT 5 Parts Listings 1999 to 2001

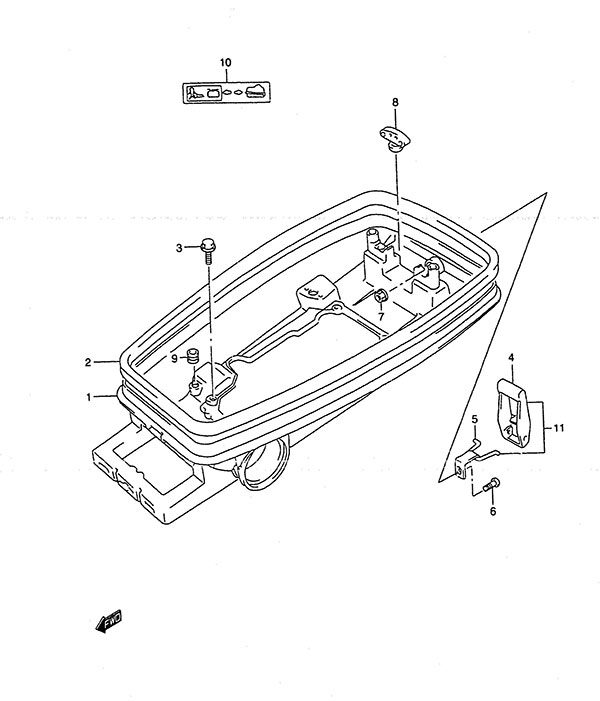

Fig. 24 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61111-986V0-0ED Lower Engine Cover (NLA)
SKU: 61111-986V0-0ED Weight: 50.000000 Brand: Price: $ 167.89 |
Lower Engine Cover (NLA) | 1 | $ 167.89 | ||
| 2 | 61112-98612 Lower Engine Cover Rubber
SKU: 61112-98612 Weight: 0.100000 Brand: Price: $ 41.12 |
Lower Engine Cover Rubber | 1 | $ 41.12 | ||
| 3-1 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 1 | $ 3.07 | 1999 to 2001 | |
| 3-2 | 09117-06038 Bolt (6x16) (NLA)
SKU: 09117-06038 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt (6x16) (NLA) | 4 | $ 1.51 | 2001 | |
| 4-1 | 61600-98800 Fastener Set (NLA)
SKU: 61600-98800 Weight: 0.060000 Brand: Price: $ 13.29 |
Fastener Set (NLA) | 1 | $ 13.29 | 1999 to 2000 | |
| 4-2 | 61611-98621 Upper Cover Fastener
SKU: 61611-98621 Weight: 0.125000 Brand: Price: $ 9.43 |
Upper Cover Fastener | 1 | $ 9.43 | 2001 | |
| 5-1 | 61600-98800 Fastener Set (NLA)
SKU: 61600-98800 Weight: 0.060000 Brand: Price: $ 13.29 |
Fastener Set (NLA) | 1 | $ 13.29 | 1999 to 2000 | |
| 5-2 | 61640-98602 Fastener Lever (NLA)
SKU: 61640-98602 Weight: 0.100000 Brand: Price: $ 9.03 |
Fastener Lever (NLA) | 1 | $ 9.03 | 2001 | |
| 6 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 1 | $ 1.82 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 8 | 61521-98400 Shear Pin Holder (NLA)
SKU: 61521-98400 Weight: 0.100000 Brand: Price: $ 2.32 |
Shear Pin Holder (NLA) | 1 | $ 2.32 | ||
| 9 | 09250-08008 Cap
SKU: 09250-08008 Weight: 0.200000 Brand: Price: $ 3.33 |
Cap | 1 | $ 3.33 | ||
| 10 | 61211-98302-064 Fuel Cock Mark (NLA)
SKU: 61211-98302-064 Weight: 0.100000 Brand: Price: $ 1.18 |
Fuel Cock Mark (NLA) | 1 | $ 1.18 | ||
| 11 | 61600-98800 Fastener Set (NLA)
SKU: 61600-98800 Weight: 0.060000 Brand: Price: $ 13.29 |
Fastener Set (NLA) | 1 | $ 13.29 | 1999 to 2000 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
