Suzuki DT 5 Parts Listings 1999 to 2001

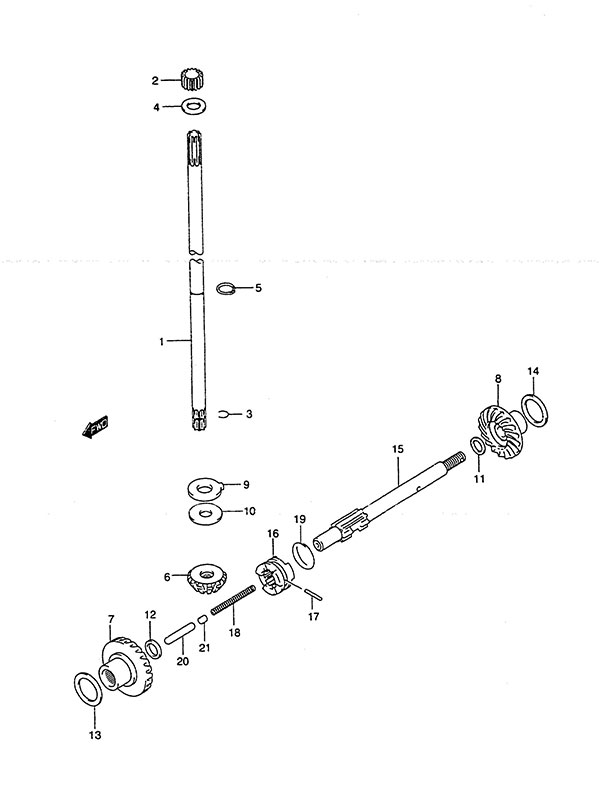

Fig. 21 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57111-98613 Drive Shaft (S) (NLA)
SKU: 57111-98613 Weight: 3.000000 Brand: Price: $ 99.52 |
Drive Shaft (S) (NLA) | 1 | $ 99.52 | w/Transom (S) | |
| 1-2 | 57111-98603 Drive Shaft (L) (NLA)
SKU: 57111-98603 Weight: 3.000000 Brand: Price: $ 109.61 |
Drive Shaft (L) (NLA) | 1 | $ 109.61 | Type: L | |
| 2 | 09320-11018 Bushing
SKU: 09320-11018 Weight: 0.125000 Brand: Price: $ 9.74 |
Bushing | 1 | $ 9.74 | ||
| 3 | 09380-10002 Snap Ring (NLA)
SKU: 09380-10002 Weight: 0.100000 Brand: Price: $ 0.59 |
Snap Ring (NLA) | 1 | $ 0.59 | ||
| 4 | 09181-10167 Thrust Washer
SKU: 09181-10167 Weight: 0.125000 Brand: Price: $ 1.97 |
Thrust Washer | 1 | $ 1.97 | ||
| 5 | 08331-31109 Circlip
SKU: 08331-31109 Weight: 0.125000 Brand: Price: $ 1.78 |
Circlip | 1 | $ 1.78 | ||
| 6 | 57311-98600 Pinion Gear (NLA)
SKU: 57311-98600 Weight: 0.100000 Brand: Price: $ 26.65 |
Pinion Gear (NLA) | 1 | $ 26.65 | ||
| 7 | 57510-98611 Forward Gear (NLA)
SKU: 57510-98611 Weight: 0.200000 Brand: Price: $ 81.62 |
Forward Gear (NLA) | 1 | $ 81.62 | ||
| 8 | 57521-98601 Reverse Gear (NLA)
SKU: 57521-98601 Weight: 2.000000 Brand: Price: $ 81.62 |
Reverse Gear (NLA) | 1 | $ 81.62 | ||
| 9 | 09169-12002 Washer (NLA)
SKU: 09169-12002 Weight: 0.100000 Brand: Price: $ 9.83 |
Washer (NLA) | 1 | $ 9.83 | ||
| 10-1 | 09160-10088 Washer (1.70) (NLA)
SKU: 09160-10088 Weight: 0.100000 Brand: Price: $ 5.73 |
Washer (1.70) (NLA) | 1 | $ 5.73 | ||
| 10-2 | 09160-10089 Washer (1.80) (NLA)
SKU: 09160-10089 Weight: 0.100000 Brand: Price: $ 4.46 |
Washer (1.80) (NLA) | 1 | $ 4.46 | ||
| 10-3 | 09160-10090 Washer (1.90) (NLA)
SKU: 09160-10090 Weight: 0.100000 Brand: Price: $ 4.46 |
Washer (1.90) (NLA) | 1 | $ 4.46 | ||
| 10-4 | 09160-10091 Washer (2.00) (NLA)
SKU: 09160-10091 Weight: 0.100000 Brand: Price: $ 4.46 |
Washer (2.00) (NLA) | 1 | $ 4.46 | ||
| 10-5 | 09160-10092 Washer (2.10) (NLA)
SKU: 09160-10092 Weight: 0.100000 Brand: Price: $ 4.64 |
Washer (2.10) (NLA) | 1 | $ 4.64 | ||
| 11-1 | 09181-12008 Thrust Washer (0.60) (NLA)
SKU: 09181-12008 Weight: 0.100000 Brand: Price: $ 1.09 |
Thrust Washer (0.60) (NLA) | 1 | $ 1.09 | ||
| 11-2 | 09160-12070 Thrust Washer (0.80) (NLA)
SKU: 09160-12070 Weight: 0.100000 Brand: Price: $ 0.98 |
Thrust Washer (0.80) (NLA) | 1 | $ 0.98 | ||
| 11-3 | 09181-12111 Thrust Washer (1.00)
SKU: 09181-12111 Weight: 0.060000 Brand: Price: $ 1.67 |
Thrust Washer (1.00) | 1 | $ 1.67 | ||
| 11-4 | 09160-12071 Thrust Washer (1.20) (NLA)
SKU: 09160-12071 Weight: 0.100000 Brand: Price: $ 1.05 |
Thrust Washer (1.20) (NLA) | 1 | $ 1.05 | ||
| 12 | 09181-12111 Thrust Washer (1.00)
SKU: 09181-12111 Weight: 0.060000 Brand: Price: $ 1.67 |
Thrust Washer (1.00) | 1 | $ 1.67 | ||
| 13-1 | 09181-20162 Shim (0.80) (NLA)
SKU: 09181-20162 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.80) (NLA) | 1 | $ 1.94 | ||
| 13-2 | 09181-20164 Shim (0.90)(NLA)
SKU: 09181-20164 Weight: 0.060000 Brand: Price: $ 2.07 |
Shim (0.90)(NLA) | 1 | $ 2.07 | ||
| 13-3 | 09181-20167 Shim (1.00)
SKU: 09181-20167 Weight: 0.200000 Brand: Price: $ 2.62 |
Shim (1.00) | 1 | $ 2.62 | ||
| 13-4 | 09181-20172 Shim (1.10) (NLA)
SKU: 09181-20172 Weight: 0.100000 Brand: Price: $ 1.07 |
Shim (1.10) (NLA) | 1 | $ 1.07 | ||
| 13-5 | 09181-20176 Shim (1.20) (NLA)
SKU: 09181-20176 Weight: 0.100000 Brand: Price: $ 1.07 |
Shim (1.20) (NLA) | 1 | $ 1.07 | ||
| 14-1 | 09181-20159 Shim (0.60) (NLA)
SKU: 09181-20159 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.60) (NLA) | 1 | $ 1.94 | ||
| 14-2 | 09181-20160 Shim (0.70) (NLA)
SKU: 09181-20160 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.70) (NLA) | 1 | $ 1.94 | ||
| 14-3 | 09181-20162 Shim (0.80) (NLA)
SKU: 09181-20162 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.80) (NLA) | 1 | $ 1.94 | ||
| 14-4 | 09181-20164 Shim (0.90)(NLA)
SKU: 09181-20164 Weight: 0.060000 Brand: Price: $ 2.07 |
Shim (0.90)(NLA) | 1 | $ 2.07 | ||
| 14-5 | 09181-20167 Shim (1.00)
SKU: 09181-20167 Weight: 0.200000 Brand: Price: $ 2.62 |
Shim (1.00) | 1 | $ 2.62 | ||
| 15 | 57611-98602 Propeller Shaft Assembly (NLA)
SKU: 57611-98602 Weight: 10.000000 Brand: Price: $ 87.65 |
Propeller Shaft Assembly (NLA) | 1 | $ 87.65 | ||
| 16 | 57621-98600 Clutch Dog Shifter (NLA)
SKU: 57621-98600 Weight: 0.500000 Brand: Price: $ 26.13 |
Clutch Dog Shifter (NLA) | 1 | $ 26.13 | ||
| 17 | 09202-04016 Pin
SKU: 09202-04016 Weight: 0.100000 Brand: Price: $ 1.62 |
Pin | 1 | $ 1.62 | ||
| 18 | 09440-05039 Spring
SKU: 09440-05039 Weight: 0.100000 Brand: Price: $ 1.85 |
Spring | 1 | $ 1.85 | ||
| 19 | 09440-24007 Clutch Dog Spring (NLA)
SKU: 09440-24007 Weight: 0.100000 Brand: Price: $ 1.14 |
Clutch Dog Spring (NLA) | 1 | $ 1.14 | ||
| 20-1 | 57631-98601 Push Rod
SKU: 57631-98601 Weight: 0.060000 Brand: Price: $ 9.37 |
Push Rod | 1 | $ 9.37 | S/N 031362 Older | |
| 20-2 | 57631-98601 Push Rod
SKU: 57631-98601 Weight: 0.060000 Brand: Price: $ 9.37 |
Push Rod | 1 | $ 9.37 | S/N 031363 Newer | |
| 21 | 57632-97L00 Push Pin
SKU: 57632-97L00 Weight: 0.060000 Brand: Price: $ 4.27 |
Push Pin | 1 | $ 4.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
