Suzuki DT 5 Parts Listings 1999 to 2001

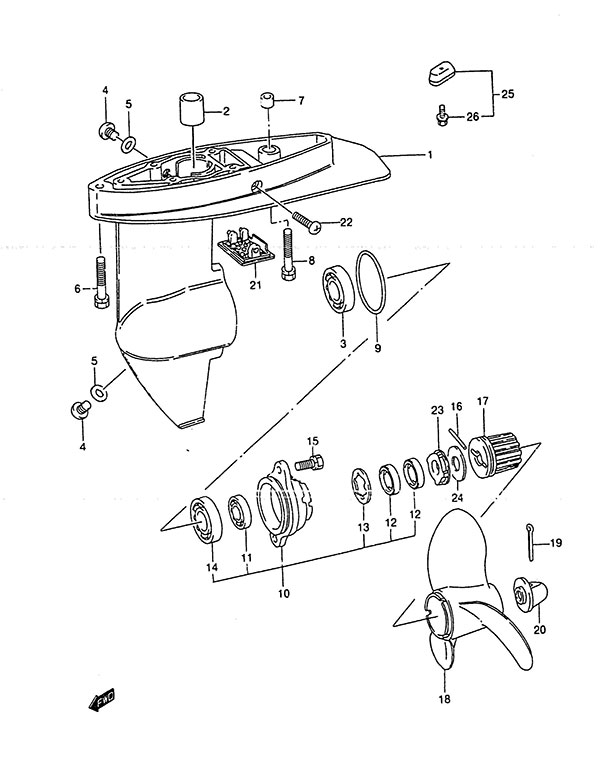

Fig. 20 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-98630-0ED Gear Case Housing (NLA)
SKU: 55110-98630-0ED Weight: 0.100000 Brand: Price: $ 130.63 |
Gear Case Housing (NLA) | 1 | $ 130.63 | ||
| 2 | 59311-91J00 Pinion Bushing
SKU: 59311-91J00 Weight: 0.200000 Brand: Price: $ 28.55 |
Pinion Bushing | 1 | $ 28.55 | ||
| 3 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 4 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 5 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 2 | $ 1.60 | ||
| 6 | 09117-08038 Bolt (8x45)
SKU: 09117-08038 Weight: 0.060000 Brand: Price: $ 5.64 |
Bolt (8x45) | 1 | $ 5.64 | ||
| 7 | 09206-11006 Pin (8.4x11x8) (NLA)
SKU: 09206-11006 Weight: 0.060000 Brand: Price: $ 2.73 |
Pin (8.4x11x8) (NLA) | 1 | $ 2.73 | ||
| 8 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 1 | $ 7.86 | ||
| 9 | 09280-49002 O-Ring
SKU: 09280-49002 Weight: 0.060000 Brand: Price: $ 1.92 |
O-Ring | 1 | $ 1.92 | ||
| 10 | 56120-91J10-0ED Propeller Shaft Bearing Housing (NLA)
SKU: 56120-91J10-0ED Weight: 1.000000 Brand: Price: $ 181.49 |
Propeller Shaft Bearing Housing (NLA) | 1 | $ 181.49 | ||
| 11 | 09262-12001 Bearing (12x28x8)
SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 | ||
| 12 | 09282-12008 Oil Seal (12x24x4.5)
SKU: 09282-12008 Weight: 0.060000 Brand: Price: $ 6.27 |
Oil Seal (12x24x4.5) | 2 | $ 6.27 | ||
| 13 | 09167-23001 Washer
SKU: 09167-23001 Weight: 0.060000 Brand: Price: $ 2.93 |
Washer | 1 | $ 2.93 | ||
| 14 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 15 | 09117-06030 Bolt (6x16)
SKU: 09117-06030 Weight: 0.100000 Brand: Price: $ 2.84 |
Bolt (6x16) | 2 | $ 2.84 | ||
| 16 | 09202-04002 Shear Pin
SKU: 09202-04002 Weight: 0.060000 Brand: Price: $ 2.12 |
Shear Pin | 1 | $ 2.12 | ||
| 17 | 58120-98600 Type C Propeller Bushing
SKU: 58120-98600 Weight: 0.260000 Brand: Price: $ 47.83 |
Type C Propeller Bushing | 1 | $ 47.83 | ||
| 18-1 | 58111-98602-019 C600 Propeller (3x7-1/2x6)
SKU: 58111-98602-019 Weight: 1.500000 Brand: Price: $ 109.28 |
C600 Propeller (3x7-1/2x6) | 1 | $ 109.28 | ||
| 18-2 | 58111-98641-019 C610 Propeller (3x7-1/2x6-1/2)
SKU: 58111-98641-019 Weight: 1.500000 Brand: Price: $ 109.28 |
C610 Propeller (3x7-1/2x6-1/2) | 1 | $ 109.28 | ||
| 18-3 | 58111-98651-019 C710 Propeller (3x7-1/2x7)
SKU: 58111-98651-019 Weight: 1.500000 Brand: Price: $ 109.28 |
C710 Propeller (3x7-1/2x7) | 1 | $ 109.28 | ||
| 19 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 20 | 58130-91JL0 Propeller Nut
SKU: 58130-91JL0 Weight: 0.125000 Brand: Price: $ 37.86 |
Propeller Nut | 1 | $ 37.86 | ||
| 21 | 17631-98600 Water Filter
SKU: 17631-98600 Weight: 0.060000 Brand: Price: $ 4.05 |
Water Filter | 1 | $ 4.05 | ||
| 22 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 1 | $ 2.49 | ||
| 23 | 56122-98602 Oil Seal Protector
SKU: 56122-98602 Weight: 0.060000 Brand: Price: $ 4.47 |
Oil Seal Protector | 1 | $ 4.47 | ||
| 24 | 56123-98600 Protector Washer
SKU: 56123-98600 Weight: 0.060000 Brand: Price: $ 4.76 |
Protector Washer | 1 | $ 4.76 | ||
| 25 | 55320-98400 Zinc Anode
SKU: 55320-98400 Weight: 0.120000 Brand: Price: $ 9.60 |
Zinc Anode | 1 | $ 9.60 | ||
| 26 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
