Suzuki DT 5 Parts Listings 1999 to 2001

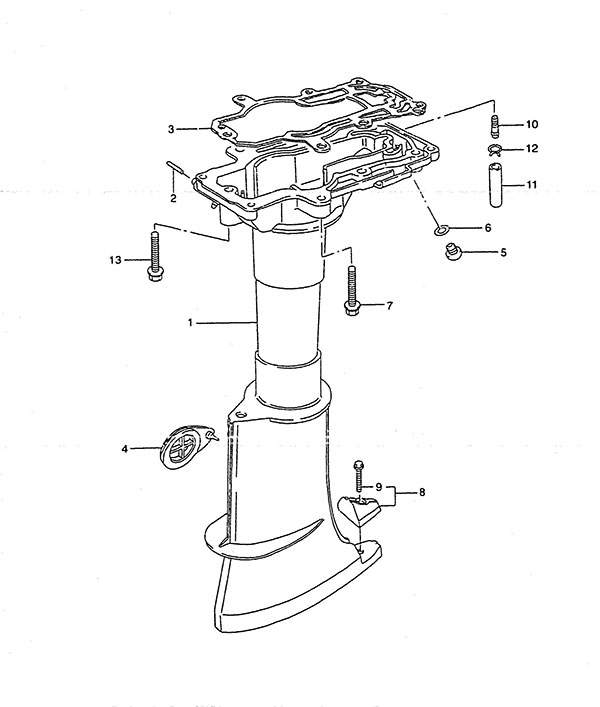

Fig. 19 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52110-98670-0ED Drive Shaft Housing (S) (NLA)
SKU: 52110-98670-0ED Weight: 10.000000 Brand: Price: $ 172.98 |
Drive Shaft Housing (S) (NLA) | 1 | $ 172.98 | w/Transom (S) | |
| 1-2 | 52110-98660-0ED Drive Shaft Housing (L) (NLA)
SKU: 52110-98660-0ED Weight: 0.100000 Brand: Price: $ 193.53 |
Drive Shaft Housing (L) (NLA) | 1 | $ 193.53 | Type: L | |
| 2 | 09205-10006 Pin (10.2x10)
SKU: 09205-10006 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (10.2x10) | 1 | $ 4.47 | ||
| 3 | 52113-98610 Drive Shaft Housing Gasket
SKU: 52113-98610 Weight: 0.080000 Brand: Price: $ 16.29 |
Drive Shaft Housing Gasket | 1 | $ 16.29 | ||
| 4 | 52115-98600 Clutch Adjust Hole Cover
SKU: 52115-98600 Weight: 0.060000 Brand: Price: $ 7.90 |
Clutch Adjust Hole Cover | 1 | $ 7.90 | ||
| 5 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 6 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 7 | 09118-08116 Bolt (8x40)
SKU: 09118-08116 Weight: 0.060000 Brand: Price: $ 6.07 |
Bolt (8x40) | 6 | $ 6.07 | ||
| 8 | 55320-98600 Zinc Anode
SKU: 55320-98600 Weight: 0.220000 Brand: Price: $ 11.96 |
Zinc Anode | 1 | $ 11.96 | ||
| 9 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 1 | $ 3.10 | ||
| 10 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->35 | |
| 12 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 1 | $ 1.86 | ||
| 13 | 09118-08125 Bolt (8x55) (NLA)
SKU: 09118-08125 Weight: 0.100000 Brand: Price: $ 4.49 |
Bolt (8x55) (NLA) | 1 | $ 4.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
