Suzuki DT 5 Parts Listings 1999 to 2001

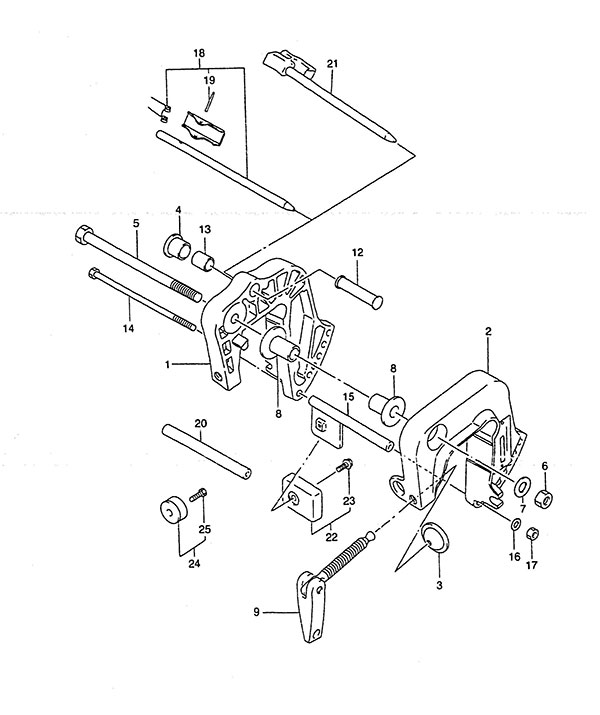

Fig. 17 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-98620-0ED Starboard Clamp Bracket
SKU: 41111-98620-0ED Weight: 1.500000 Brand: Price: $ 94.35 |
Starboard Clamp Bracket | 1 | $ 94.35 | ||
| 2 | 41121-98610-0ED Port Clamp Bracket (NLA)
SKU: 41121-98610-0ED Weight: 0.100000 Brand: Price: $ 59.27 |
Port Clamp Bracket (NLA) | 1 | $ 59.27 | ||
| 3 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 4 | 41221-96301 Tilt Stopper Knob
SKU: 41221-96301 Weight: 0.060000 Brand: Price: $ 4.32 |
Tilt Stopper Knob | 1 | $ 4.32 | ||
| 5 | 09100-10217 Bolt (10x150)
SKU: 09100-10217 Weight: 0.250000 Brand: Price: $ 15.24 |
Bolt (10x150) | 1 | $ 15.24 | ||
| 6 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 7 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 8 | 09306-10011 Swivel Bracket Bushing
SKU: 09306-10011 Weight: 0.060000 Brand: Price: $ 7.28 |
Swivel Bracket Bushing | 2 | $ 7.28 | ||
| 9 | 41210-986L1 Clamp Screw Assembly
SKU: 41210-986L1 Weight: 0.260000 Brand: Price: $ 33.75 |
Clamp Screw Assembly | 2 | $ 33.75 | ||
| 12 | 41222-93910 Tilt Stopper Pin
SKU: 41222-93910 Weight: 0.140000 Brand: Price: $ 24.25 |
Tilt Stopper Pin | 1 | $ 24.25 | ||
| 13 | 09303-14003 Bushing
SKU: 09303-14003 Weight: 0.060000 Brand: Price: $ 3.00 |
Bushing | 1 | $ 3.00 | ||
| 14 | 09100-06177 Bolt (6x140)
SKU: 09100-06177 Weight: 0.100000 Brand: Price: $ 5.54 |
Bolt (6x140) | 1 | $ 5.54 | ||
| 16 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 17 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 20 | 09180-06163 Spacer
SKU: 09180-06163 Weight: 0.100000 Brand: Price: $ 4.32 |
Spacer | 1 | $ 4.32 | ||
| 21 | 45420-92DL0 Tilt Lock Pin
SKU: 45420-92DL0 Weight: 0.250000 Brand: Price: $ 30.79 |
Tilt Lock Pin | 1 | $ 30.79 | ||
| 24 | 11130-94600 Zinc Anode
SKU: 11130-94600 Weight: 0.060000 Brand: Price: $ 9.01 |
Zinc Anode | 1 | $ 9.01 | ||
| 25 | 09128-06021 Bolt (6x14)
SKU: 09128-06021 Weight: 0.060000 Brand: Price: $ 1.91 |
Bolt (6x14) | 1 | $ 1.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
