Suzuki DT 5 Parts Listings 1999 to 2001

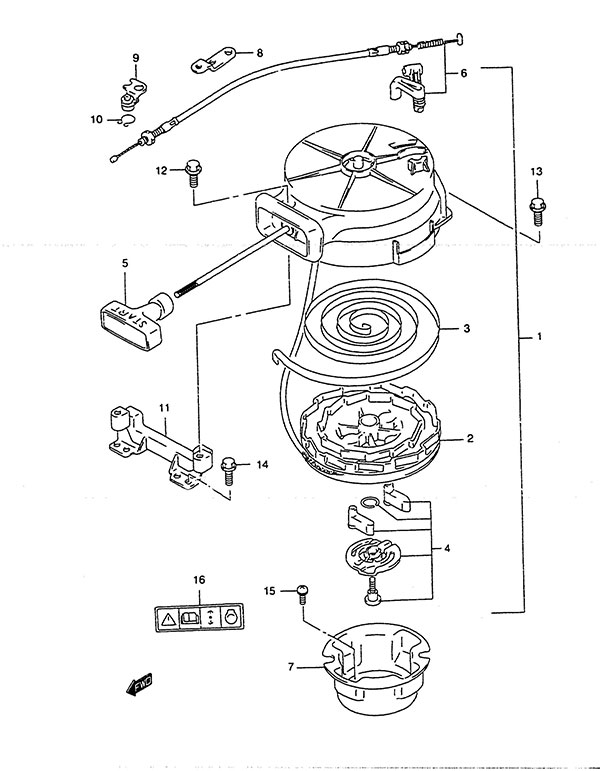

Fig. 12 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 18100-986A0 Recoil Starter Assembly (NLA)
SKU: 18100-986A0 Weight: 2.000000 Brand: Price: $ 111.82 |
Recoil Starter Assembly (NLA) | 1 | $ 111.82 | S/N 031150 Older | |
| 1-2 | 18100-986B1 Recoil Starter Assembly (NLA)
SKU: 18100-986B1 Weight: 2.000000 Brand: Price: $ 129.19 |
Recoil Starter Assembly (NLA) | 1 | $ 129.19 | S/N 031151 Newer | |
| 2 | 18120-98130 Reel
SKU: 18120-98130 Weight: 0.100000 Brand: Price: $ 43.79 |
Reel | 1 | $ 43.79 | ||
| 3 | 18142-92920 Spiral Spring
SKU: 18142-92920 Weight: 0.100000 Brand: Price: $ 12.95 |
Spiral Spring | 1 | $ 12.95 | ||
| 4 | 18130-98130 Ratchet Set
SKU: 18130-98130 Weight: 0.060000 Brand: Price: $ 9.45 |
Ratchet Set | 1 | $ 9.45 | ||
| 5 | 18210-98130 Starter Grip
SKU: 18210-98130 Weight: 0.250000 Brand: Price: $ 8.60 |
Starter Grip | 1 | $ 8.60 | ||
| 6 | 18280-986A0 NSI Set (NLA)
SKU: 18280-986A0 Weight: 0.100000 Brand: Price: $ 26.07 |
NSI Set (NLA) | 1 | $ 26.07 | ||
| 7 | 18411-986A0 Starter Cup (NLA)
SKU: 18411-986A0 Weight: 0.100000 Brand: Price: $ 12.67 |
Starter Cup (NLA) | 1 | $ 12.67 | ||
| 8 | 18642-98101 Interlock Cable Holder (NLA)
SKU: 18642-98101 Weight: 0.100000 Brand: Price: $ 2.38 |
Interlock Cable Holder (NLA) | 1 | $ 2.38 | ||
| 9 | 18650-98101 Interlock Arm (NLA)
SKU: 18650-98101 Weight: 0.060000 Brand: Price: $ 7.88 |
Interlock Arm (NLA) | 1 | $ 7.88 | ||
| 10 | 18653-98110 Snap Ring (NLA)
SKU: 18653-98110 Weight: 0.100000 Brand: Price: $ 1.43 |
Snap Ring (NLA) | 1 | $ 1.43 | ||
| 11 | 18711-986A0-0ED Recoil Starter Brace (NLA)
SKU: 18711-986A0-0ED Weight: 0.100000 Brand: Price: $ 39.57 |
Recoil Starter Brace (NLA) | 1 | $ 39.57 | ||
| 12 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 13 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 14 | 01570-06207 BOLT
SKU: 01570-06207 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 2 | $ 2.72 | ||
| 15 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 3 | $ 1.85 | ||
| 16 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
