Suzuki DT 5 Parts Listings 1999 to 2001

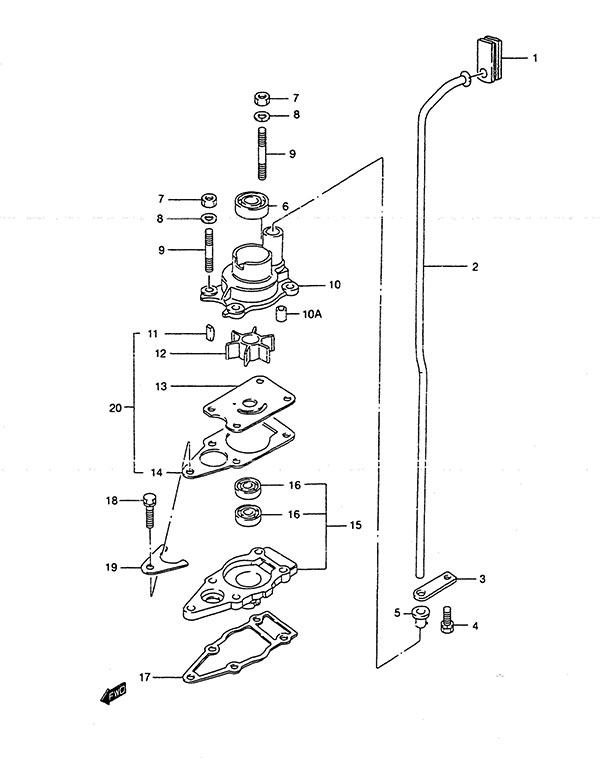

Fig. 10 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17563-98500 Water Tube Grommet
SKU: 17563-98500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Tube Grommet | 1 | $ 3.47 | ||
| 2-1 | 17561-98611 Water Tube (S)
SKU: 17561-98611 Weight: 0.150000 Brand: Price: $ 16.73 |
Water Tube (S) | 1 | $ 16.73 | w/Transom (S) | |
| 2-2 | 17561-98601 Water Tube (L)
SKU: 17561-98601 Weight: 2.000000 Brand: Price: $ 20.95 |
Water Tube (L) | 1 | $ 20.95 | Type: L | |
| 3 | 17564-98600 Water Tube Guide
SKU: 17564-98600 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Tube Guide | 1 | $ 3.47 | ||
| 4 | 09117-06038 Bolt (6x16) (NLA)
SKU: 09117-06038 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt (6x16) (NLA) | 1 | $ 1.51 | ||
| 5 | 17415-98501 Water Pump Case Grommet
SKU: 17415-98501 Weight: 0.060000 Brand: Price: $ 2.07 |
Water Pump Case Grommet | 1 | $ 2.07 | ||
| 6 | 09289-10002 Oil Seal
SKU: 09289-10002 Weight: 0.060000 Brand: Price: $ 11.07 |
Oil Seal | 1 | $ 11.07 | ||
| 7 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 4 | $ 1.82 | ||
| 8 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 9 | 09108-06069 Stud Bolt (6x30)
SKU: 09108-06069 Weight: 0.060000 Brand: Price: $ 3.19 |
Stud Bolt (6x30) | 4 | $ 3.19 | ||
| 10 | 17411-98611 Water Pump Case
SKU: 17411-98611 Weight: 0.440000 Brand: Price: $ 82.63 |
Water Pump Case | 1 | $ 82.63 | ||
| 10A | 09202-04008 Dowel Pin (4x9)
SKU: 09202-04008 Weight: 0.060000 Brand: Price: $ 1.49 |
Dowel Pin (4x9) | 1 | $ 1.49 | ||
| 11 | 09420-03002 Key
SKU: 09420-03002 Weight: 0.060000 Brand: Price: $ 2.90 |
Key | 1 | $ 2.90 | ||
| 12 | 17461-985M0 Water Pump Impeller
SKU: 17461-985M0 Weight: 0.060000 Brand: Price: $ 21.72 |
Water Pump Impeller | 1 | $ 21.72 | ||
| 13 | 17471-98601 Water Pump Plate
SKU: 17471-98601 Weight: 0.060000 Brand: Price: $ 4.84 |
Water Pump Plate | 1 | $ 4.84 | ||
| 14 | 17472-98611 Water Pump Plate Gasket
SKU: 17472-98611 Weight: 0.060000 Brand: Price: $ 2.82 |
Water Pump Plate Gasket | 1 | $ 2.82 | ||
| 15 | 56130-98602 Drive Shaft Housing
SKU: 56130-98602 Weight: 0.200000 Brand: Price: $ 65.06 |
Drive Shaft Housing | 1 | $ 65.06 | ||
| 16 | 09282-10008 Oil Seal (10x21x4.5)
SKU: 09282-10008 Weight: 0.060000 Brand: Price: $ 3.57 |
Oil Seal (10x21x4.5) | 2 | $ 3.57 | ||
| 17 | 56132-98610 Drive Shaft Housing Gasket
SKU: 56132-98610 Weight: 0.060000 Brand: Price: $ 5.97 |
Drive Shaft Housing Gasket | 1 | $ 5.97 | ||
| 18 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 1 | $ 3.08 | ||
| 19 | 25215-98601 Shift Rod Guide Stopper
SKU: 25215-98601 Weight: 0.200000 Brand: Price: $ 2.96 |
Shift Rod Guide Stopper | 1 | $ 2.96 | ||
| 20 | 17400-98652 Water Pump Repair Kit DT4 / DT5
SKU: 17400-98652 Weight: 0.250000 Brand: Price: $ 24.21 |
Water Pump Repair Kit DT4 / DT5 | 1 | $ 24.21 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
