Suzuki DT 5 Parts Listings 1999 to 2001

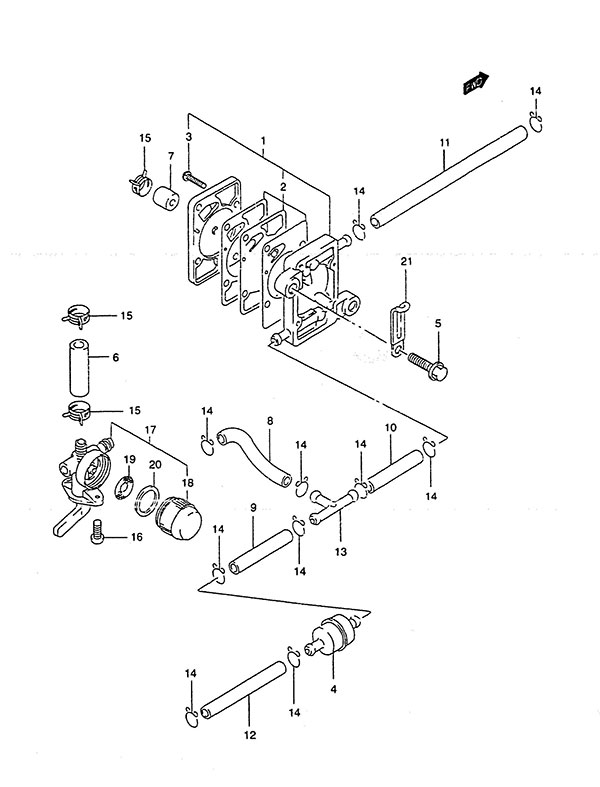

Fig. 8 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-98610 Fuel Pump Assembly
SKU: 15100-98610 Weight: 0.250000 Brand: Price: $ 86.27 |
Fuel Pump Assembly | 1 | $ 86.27 | ||
| 2 | 15170-98110 Fuel Pump Diaphragm Set
SKU: 15170-98110 Weight: 0.060000 Brand: Price: $ 40.01 |
Fuel Pump Diaphragm Set | 1 | $ 40.01 | ||
| 3 | 15251-98101 Screw (NLA)
SKU: 15251-98101 Weight: 0.100000 Brand: Price: $ 0.69 |
Screw (NLA) | 4 | $ 0.69 | ||
| 4 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 5 | 09103-06048 Bolt (6x20) (NLA)
SKU: 09103-06048 Weight: 0.060000 Brand: Price: $ 1.06 |
Bolt (6x20) (NLA) | 2 | $ 1.06 | ||
| 6 | 09354-53103-600 Hose (5.3x10x600)
SKU: 09354-53103-600 Weight: 0.140000 Brand: Price: $ 10.78 |
Hose (5.3x10x600) | 1 | $ 10.78 | Tank to Fuel Cock L:600->40 | |
| 7 | 09355-54115-600 Hose (5.4x11.4x600)
SKU: 09355-54115-600 Weight: 0.200000 Brand: Price: $ 15.43 |
Hose (5.4x11.4x600) | 1 | $ 15.43 | Vacum L:600->11 | |
| 8 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Fuel Cock to 3 Way L:600->45 | |
| 9 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Filter to 3 Way L:600->100 | |
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Pump L:600->125 | |
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Pump to Carb L:600->230 | |
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Connector to Filter L:600->210 | |
| 13 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 14 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 8 | $ 1.86 | ||
| 15 | 09401-10411 Clip
SKU: 09401-10411 Weight: 0.060000 Brand: Price: $ 2.43 |
Clip | 3 | $ 2.43 | ||
| 16 | 09136-04010 Screw (4x12)
SKU: 09136-04010 Weight: 0.060000 Brand: Price: $ 2.72 |
Screw (4x12) | 2 | $ 2.72 | ||
| 17 | 66100-98601 Fuel Cock Assembly
SKU: 66100-98601 Weight: 0.120000 Brand: Price: $ 24.51 |
Fuel Cock Assembly | 1 | $ 24.51 | ||
| 18 | 66171-98301 Fuel Filter Cup
SKU: 66171-98301 Weight: 0.060000 Brand: Price: $ 5.53 |
Fuel Filter Cup | 1 | $ 5.53 | ||
| 19 | 66152-98300 Fuel Cock Filter
SKU: 66152-98300 Weight: 0.060000 Brand: Price: $ 1.86 |
Fuel Cock Filter | 1 | $ 1.86 | ||
| 20 | 66273-98301 Fuel Cock Gasket
SKU: 66273-98301 Weight: 0.060000 Brand: Price: $ 1.69 |
Fuel Cock Gasket | 1 | $ 1.69 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
