Suzuki DT 5 Parts Listings 1999 to 2001

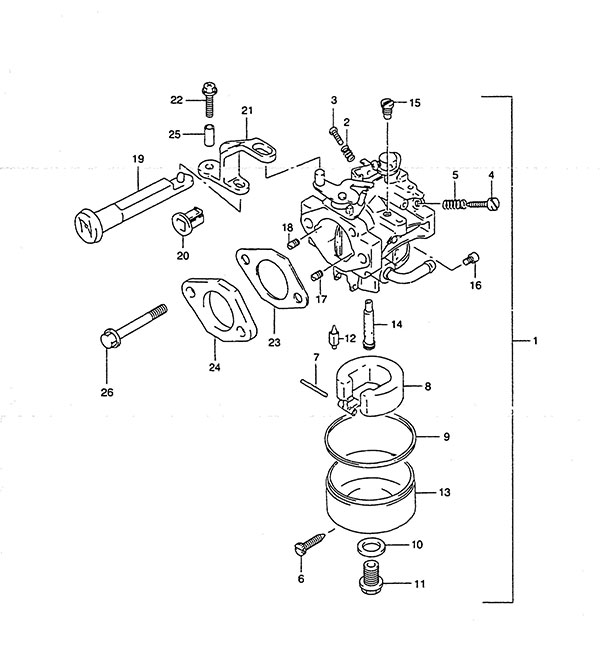

Fig. 6 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-986A1 Carburetor Assembly
SKU: 13200-986A1 Weight: 1.000000 Brand: Price: $ 179.52 |
Carburetor Assembly | 1 | $ 179.52 | ||
| 2 | 13268-92910 Spring
SKU: 13268-92910 Weight: 0.060000 Brand: Price: $ 2.44 |
Spring | 1 | $ 2.44 | ||
| 3 | 13534-98900 Screw
SKU: 13534-98900 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 4 | 13279-90C00 Adjuster
SKU: 13279-90C00 Weight: 0.062500 Brand: Price: $ 5.06 |
Adjuster | 1 | $ 5.06 | ||
| 5 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 6 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 6.36 |
Adjuster | 1 | $ 6.36 | ||
| 7 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 1 | $ 3.28 | ||
| 8 | 13250-87420 Carburetor Float
SKU: 13250-87420 Weight: 0.060000 Brand: Price: $ 35.33 |
Carburetor Float | 1 | $ 35.33 | ||
| 9 | 13251-87400 Float Chamber Gasket
SKU: 13251-87400 Weight: 0.060000 Brand: Price: $ 5.93 |
Float Chamber Gasket | 1 | $ 5.93 | ||
| 10 | 13249-90100 Drain Plug Gasket
SKU: 13249-90100 Weight: 0.060000 Brand: Price: $ 1.06 |
Drain Plug Gasket | 1 | $ 1.06 | ||
| 11 | 13247-986A0 Drain Plug
SKU: 13247-986A0 Weight: 0.100000 Brand: Price: $ 6.64 |
Drain Plug | 1 | $ 6.64 | ||
| 12 | 13371-986A0 Needle Valve
SKU: 13371-986A0 Weight: 0.100000 Brand: Price: $ 22.54 |
Needle Valve | 1 | $ 22.54 | ||
| 13 | 13245-986A0 Float Chamber
SKU: 13245-986A0 Weight: 0.250000 Brand: Price: $ 57.50 |
Float Chamber | 1 | $ 57.50 | ||
| 14 | 13236-986A0 Main Nozzle (NLA)
SKU: 13236-986A0 Weight: 0.100000 Brand: Price: $ 12.32 |
Main Nozzle (NLA) | 1 | $ 12.32 | ||
| 15 | 09492-55009 Pilot Jet #55
SKU: 09492-55009 Weight: 0.060000 Brand: Price: $ 13.77 |
Pilot Jet #55 | 1 | $ 13.77 | ||
| 16 | 09491-21029 Main Jet #107.5 (NLA)
SKU: 09491-21029 Weight: 0.100000 Brand: Price: $ 8.15 |
Main Jet #107.5 (NLA) | 1 | $ 8.15 | ||
| 17 | 09493-18001 Air Jet #0.9 (NLA)
SKU: 09493-18001 Weight: 0.060000 Brand: Price: $ 11.35 |
Air Jet #0.9 (NLA) | 1 | $ 11.35 | ||
| 18 | 09493-24007 Air Jet #1.2
SKU: 09493-24007 Weight: 0.060000 Brand: Price: $ 14.52 |
Air Jet #1.2 | 1 | $ 14.52 | ||
| 19 | 13631-98610 Choke Lever Knob (NLA)
SKU: 13631-98610 Weight: 0.125000 Brand: Price: $ 4.54 |
Choke Lever Knob (NLA) | 1 | $ 4.54 | ||
| 20 | 13632-93900 Grommet
SKU: 13632-93900 Weight: 0.060000 Brand: Price: $ 2.96 |
Grommet | 1 | $ 2.96 | ||
| 21 | 13633-98610 Choke Lever (NLA)
SKU: 13633-98610 Weight: 0.100000 Brand: Price: $ 2.30 |
Choke Lever (NLA) | 1 | $ 2.30 | ||
| 22 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 1 | $ 1.49 | ||
| 23 | 13125-90C10 Carburetor Gasket
SKU: 13125-90C10 Weight: 0.060000 Brand: Price: $ 4.13 |
Carburetor Gasket | 2 | $ 4.13 | ||
| 24 | 13129-986A0 Carburetor Insulator (NLA)
SKU: 13129-986A0 Weight: 0.100000 Brand: Price: $ 5.03 |
Carburetor Insulator (NLA) | 1 | $ 5.03 | ||
| 25 | 09180-06097 Spacer
SKU: 09180-06097 Weight: 0.100000 Brand: Price: $ 5.74 |
Spacer | 1 | $ 5.74 | ||
| 26 | 01550-06707 BOLT
SKU: 01550-06707 Weight: 0.060000 Brand: Price: $ 3.72 |
BOLT | 2 | $ 3.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
