Suzuki DT 5 Parts Listings 1999 to 2001

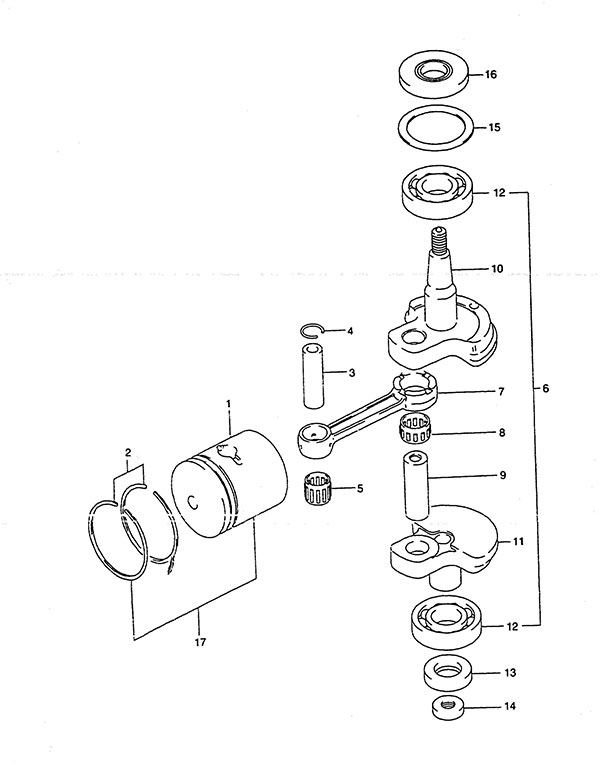

Fig. 4 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12110-986B0 Piston (NLA)
SKU: 12110-986B0 Weight: 0.300000 Brand: Price: $ 43.46 |
Piston (NLA) | 1 | $ 43.46 | ||
| 2 | 12140-986A0 Piston Ring Set
SKU: 12140-986A0 Weight: 0.100000 Brand: Price: $ 23.08 |
Piston Ring Set | 1 | $ 23.08 | ||
| 3 | 12151-90600 Piston Pin
SKU: 12151-90600 Weight: 0.060000 Brand: Price: $ 5.23 |
Piston Pin | 1 | $ 5.23 | ||
| 4 | 09381-12001 Piston Pin Circlip
SKU: 09381-12001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 2 | $ 1.44 | ||
| 5 | 09263-12023 Bearing (12x16x16)
SKU: 09263-12023 Weight: 0.060000 Brand: Price: $ 10.36 |
Bearing (12x16x16) | 1 | $ 10.36 | ||
| 6 | 12200-986A0 Crankshaft Assembly
SKU: 12200-986A0 Weight: 4.000000 Brand: Price: $ 243.74 |
Crankshaft Assembly | 1 | $ 243.74 | ||
| 7 | 12161-98602 Connecting Rod
SKU: 12161-98602 Weight: 1.000000 Brand: Price: $ 46.38 |
Connecting Rod | 1 | $ 46.38 | ||
| 8 | 09263-17022 Bearing (17x23x13.8)
SKU: 09263-17022 Weight: 0.250000 Brand: Price: $ 18.97 |
Bearing (17x23x13.8) | 1 | $ 18.97 | ||
| 9 | 12211-96001 Crankshaft Pin (NLA)
SKU: 12211-96001 Weight: 0.250000 Brand: Price: $ 16.37 |
Crankshaft Pin (NLA) | 1 | $ 16.37 | ||
| 10 | 12221-986A0 Upper Crankshaft (NLA)
SKU: 12221-986A0 Weight: 10.000000 Brand: Price: $ 53.33 |
Upper Crankshaft (NLA) | 1 | $ 53.33 | ||
| 11 | 12240-986A0 Under Crankshaft (NLA)
SKU: 12240-986A0 Weight: 10.000000 Brand: Price: $ 53.33 |
Under Crankshaft (NLA) | 1 | $ 53.33 | ||
| 12 | 09262-20069 Bearing (20x47x44)
SKU: 09262-20069 Weight: 0.250000 Brand: Price: $ 23.69 |
Bearing (20x47x44) | 2 | $ 23.69 | ||
| 13 | 09283-20018 Oil Seal (20x37x9)
SKU: 09283-20018 Weight: 0.060000 Brand: Price: $ 6.16 |
Oil Seal (20x37x9) | 1 | $ 6.16 | ||
| 14 | 09283-10003 Oil Seal
SKU: 09283-10003 Weight: 0.060000 Brand: Price: $ 6.36 |
Oil Seal | 1 | $ 6.36 | ||
| 15 | 09160-38001 Washer
SKU: 09160-38001 Weight: 0.125000 Brand: Price: $ 1.73 |
Washer | 1 | $ 1.73 | ||
| 16 | 09283-20045 Crankshaft Oil Seal
SKU: 09283-20045 Weight: 0.060000 Brand: Price: $ 6.84 |
Crankshaft Oil Seal | 1 | $ 6.84 | ||
| 17-1 | 12100-986A0-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-986A0-025 Weight: 1.000000 Brand: Price: $ 53.43 |
Piston & Ring Set (OS:0.25) (NLA) | 1 | $ 53.43 | Opt: 1999 to 2000 | |
| 17-2 | 12100-986B0-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-986B0-025 Weight: 0.100000 Brand: Price: $ 51.56 |
Piston & Ring Set (OS:0.25) (NLA) | 1 | $ 51.56 | Opt: 2001 | |
| 17-3 | 12100-986A0-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-986A0-050 Weight: 0.100000 Brand: Price: $ 49.23 |
Piston & Ring Set (OS:0.50) (NLA) | 1 | $ 49.23 | Opt: 1999 to 2000 | |
| 17-4 | 12100-986B0-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-986B0-050 Weight: 1.000000 Brand: Price: $ 56.60 |
Piston & Ring Set (OS:0.50) (NLA) | 1 | $ 56.60 | Opt: 2001 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
