Suzuki DT 5 Parts Listings 1999 to 2001

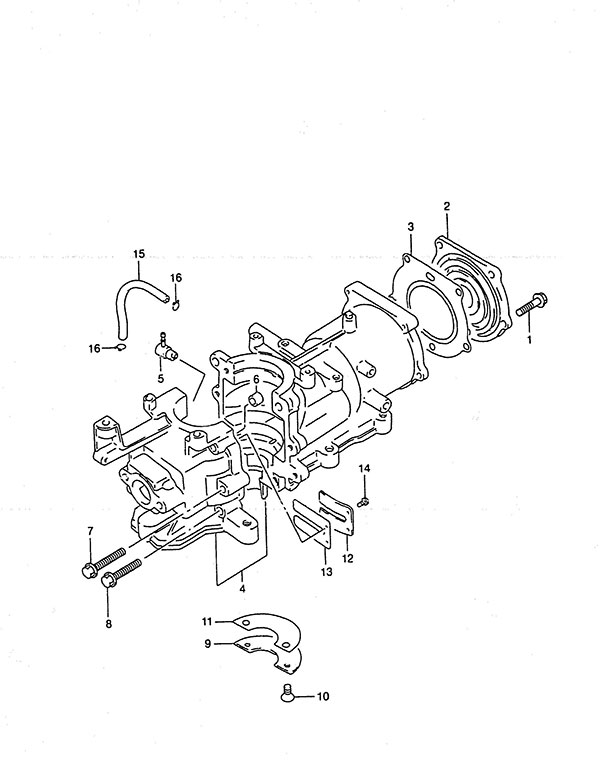

Fig. 2 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 01560-08357 BOLT
SKU: 01560-08357 Weight: 0.060000 Brand: Price: $ 3.72 |
BOLT | 5 | $ 3.72 | ||
| 2 | 11111-986A1-0ED Cylinder Head (NLA)
SKU: 11111-986A1-0ED Weight: 10.000000 Brand: Price: $ 43.96 |
Cylinder Head (NLA) | 1 | $ 43.96 | ||
| 3 | 11141-986A0 Cylinder Head Gasket
SKU: 11141-986A0 Weight: 0.200000 Brand: Price: $ 17.89 |
Cylinder Head Gasket | 1 | $ 17.89 | ||
| 4 | 11300-986B0-0ED Crankcase Assembly
SKU: 11300-986B0-0ED Weight: 4.000000 Brand: Price: $ 495.70 |
Crankcase Assembly | 1 | $ 495.70 | ||
| 5 | 16710-95D10 Oil Check Valve
SKU: 16710-95D10 Weight: 0.125000 Brand: Price: $ 18.94 |
Oil Check Valve | 1 | $ 18.94 | ||
| 6 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 7 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 4 | $ 2.82 | ||
| 8 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 9 | 11218-98601 Water Jacket Cover (NLA)
SKU: 11218-98601 Weight: 0.100000 Brand: Price: $ 3.60 |
Water Jacket Cover (NLA) | 1 | $ 3.60 | ||
| 10 | 09126-05003 Screw (5x12)
SKU: 09126-05003 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (5x12) | 2 | $ 2.06 | ||
| 11 | 11219-98610 Water Jacket Gasket
SKU: 11219-98610 Weight: 0.060000 Brand: Price: $ 3.19 |
Water Jacket Gasket | 1 | $ 3.19 | ||
| 12 | 13152-98300 Reed Valve Stopper (NLA)
SKU: 13152-98300 Weight: 0.060000 Brand: Price: $ 2.72 |
Reed Valve Stopper (NLA) | 1 | $ 2.72 | ||
| 13 | 13153-98600 Reed Valve
SKU: 13153-98600 Weight: 0.060000 Brand: Price: $ 7.82 |
Reed Valve | 1 | $ 7.82 | ||
| 14 | 02112-3308A SCREW
SKU: 02112-3308A Weight: 0.060000 Brand: Price: $ 1.93 |
SCREW | 2 | $ 1.93 | ||
| 15 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | L:600->130 | |
| 16 | 09401-06101 Clamp
SKU: 09401-06101 Weight: 0.060000 Brand: Price: $ 2.04 |
Clamp | 2 | $ 2.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
