Suzuki DT 4 Parts Listings 1988 to 1992

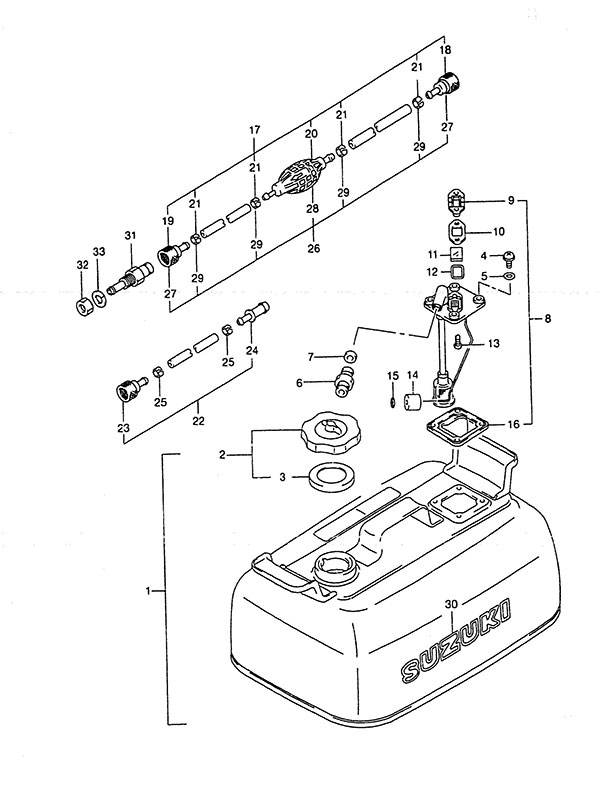

Fig. 40 - Opt: Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65800-92813 Fuel Tank Set (NLA)
SKU: 65800-92813 Weight: 0.100000 Brand: Price: $ 166.10 |
Fuel Tank Set (NLA) | 1 | $ 166.10 | ||
| 2 | 65510-92D00 Fuel Tank Cap Assembly
SKU: 65510-92D00 Weight: 0.250000 Brand: Price: $ 28.84 |
Fuel Tank Cap Assembly | 1 | $ 28.84 | ||
| 3 | 65561-92D00 Tank Cap Gasket
SKU: 65561-92D00 Weight: 0.100000 Brand: Price: $ 6.81 |
Tank Cap Gasket | 1 | $ 6.81 | ||
| 4 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 4 | $ 1.38 | ||
| 5 | 09168-06026 Gasket
SKU: 09168-06026 Weight: 0.060000 Brand: Price: $ 3.16 |
Gasket | 4 | $ 3.16 | ||
| 6 | 65740-95501 Fuel Tank Connector (13mm)
SKU: 65740-95501 Weight: 0.100000 Brand: Price: $ 26.29 |
Fuel Tank Connector (13mm) | 1 | $ 26.29 | ||
| 7 | 09168-12015-XC0 Gasket (12.2x21x0.8)
SKU: 09168-12015-XC0 Weight: 0.060000 Brand: Price: $ 3.72 |
Gasket (12.2x21x0.8) | 1 | $ 3.72 | ||
| 8 | 65850-92D51 Fuel Gauge Assembly (NLA)
SKU: 65850-92D51 Weight: 0.100000 Brand: Price: $ 36.14 |
Fuel Gauge Assembly (NLA) | 1 | $ 36.14 | ||
| 9 | 65855-92D10 Gauge Cover (NLA)
SKU: 65855-92D10 Weight: 0.100000 Brand: Price: $ 2.25 |
Gauge Cover (NLA) | 1 | $ 2.25 | ||
| 10 | 65854-92D20 Lens Gasket (NLA)
SKU: 65854-92D20 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens Gasket (NLA) | 1 | $ 1.76 | ||
| 11 | 65853-92D00 Lens (NLA)
SKU: 65853-92D00 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens (NLA) | 1 | $ 1.76 | ||
| 12 | 65854-92D30 Lens Gasket (NLA)
SKU: 65854-92D30 Weight: 0.100000 Brand: Price: $ 1.79 |
Lens Gasket (NLA) | 1 | $ 1.79 | ||
| 13 | 03222-04083 Screw (NLA)
SKU: 03222-04083 Weight: 0.100000 Brand: Price: $ 1.02 |
Screw (NLA) | 2 | $ 1.02 | ||
| 14 | 65864-92D00 Float (NLA)
SKU: 65864-92D00 Weight: 0.100000 Brand: Price: $ 3.99 |
Float (NLA) | 1 | $ 3.99 | ||
| 15 | 65866-92D00 Push Nut (NLA)
SKU: 65866-92D00 Weight: 0.100000 Brand: Price: $ 0.85 |
Push Nut (NLA) | 1 | $ 0.85 | ||
| 16 | 65871-92D00 Gasket (NLA)
SKU: 65871-92D00 Weight: 0.100000 Brand: Price: $ 2.59 |
Gasket (NLA) | 1 | $ 2.59 | ||
| 17 | 65700-87D85 Fuel Hose
SKU: 65700-87D85 Weight: 2.000000 Brand: Price: $ 229.94 |
Fuel Hose | 1 | $ 229.94 | ||
| 18 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | ||
| 19 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | ||
| 20 | 65770-95540 Squeeze Pump (NLA)
SKU: 65770-95540 Weight: 0.130000 Brand: Price: $ 19.04 |
Squeeze Pump (NLA) | 1 | $ 19.04 | ||
| 21 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 22 | 65700-92D30 Fuel Hose Joint (NLA)
SKU: 65700-92D30 Weight: 0.100000 Brand: Price: $ 31.01 |
Fuel Hose Joint (NLA) | 1 | $ 31.01 | ||
| 23 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | ||
| 24 | 65779-93900 Fuel Hose Union (NLA)
SKU: 65779-93900 Weight: 0.100000 Brand: Price: $ 3.90 |
Fuel Hose Union (NLA) | 1 | $ 3.90 | ||
| 25 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 2 | $ 2.90 | ||
| 26 | 65700-95D18 Fuel Hose
SKU: 65700-95D18 Weight: 2.000000 Brand: Price: $ 194.30 |
Fuel Hose | 1 | $ 194.30 | ||
| 27 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 2 | $ 30.19 | ||
| 28 | 65770-99703 Squeeze Pump (NLA)
SKU: 65770-99703 Weight: 0.200000 Brand: Price: $ 19.84 |
Squeeze Pump (NLA) | 1 | $ 19.84 | ||
| 29 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 1 | $ 2.90 | ||
| 30 | 61441-98500 Suzuki Mark (NLA)
SKU: 61441-98500 Weight: 0.100000 Brand: Price: $ 3.51 |
Suzuki Mark (NLA) | 1 | $ 3.51 | ||
| 31 | 65720-985L1 Fuel Connector (11mm)
SKU: 65720-985L1 Weight: 0.080000 Brand: Price: $ 31.82 |
Fuel Connector (11mm) | 1 | $ 31.82 | ||
| 32 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 33 | 08321-01107 Lock Washer
SKU: 08321-01107 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
