Suzuki DT 4 Parts Listings 1988 to 1992

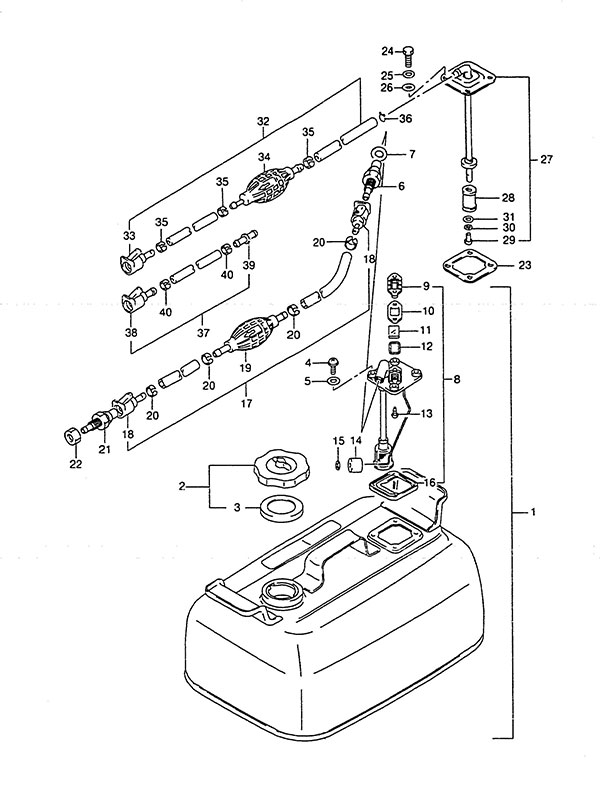

Fig. 39 - Opt: Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65800-92813 Fuel Tank Set (NLA)
SKU: 65800-92813 Weight: 0.100000 Brand: Price: $ 166.10 |
Fuel Tank Set (NLA) | 1 | $ 166.10 | ||
| 2 | 65510-92D00 Fuel Tank Cap Assembly
SKU: 65510-92D00 Weight: 0.250000 Brand: Price: $ 28.84 |
Fuel Tank Cap Assembly | 1 | $ 28.84 | ||
| 3 | 65561-92D00 Tank Cap Gasket
SKU: 65561-92D00 Weight: 0.100000 Brand: Price: $ 6.81 |
Tank Cap Gasket | 1 | $ 6.81 | ||
| 4 | 02112-16167 SCREW
SKU: 02112-16167 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 4 | $ 2.72 | ||
| 5-1 | 09168-06004 Washer
SKU: 09168-06004 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | 1988 | |
| 5-2 | 09168-06026 Gasket
SKU: 09168-06026 Weight: 0.060000 Brand: Price: $ 3.16 |
Gasket | 4 | $ 3.16 | 1989 to 1992 | |
| 6 | 65720-94411 Fuel Connector (NLA)
SKU: 65720-94411 Weight: 0.060000 Brand: Price: $ 21.96 |
Fuel Connector (NLA) | 1 | $ 21.96 | ||
| 7-1 | 09168-12001 Gasket
SKU: 09168-12001 Weight: 0.200000 Brand: Price: $ 1.46 |
Gasket | 1 | $ 1.46 | 1988 | |
| 7-2 | 09168-12015-XC0 Gasket (12.2x21x0.8)
SKU: 09168-12015-XC0 Weight: 0.060000 Brand: Price: $ 3.72 |
Gasket (12.2x21x0.8) | 1 | $ 3.72 | 1989 to 1992 | |
| 8 | 65850-92D51 Fuel Gauge Assembly (NLA)
SKU: 65850-92D51 Weight: 0.100000 Brand: Price: $ 36.14 |
Fuel Gauge Assembly (NLA) | 1 | $ 36.14 | ||
| 9-1 | 65855-92D00 Gauge Cover (NLA)
SKU: 65855-92D00 Weight: 0.100000 Brand: Price: $ 2.64 |
Gauge Cover (NLA) | 1 | $ 2.64 | 1988 | |
| 9-2 | 65855-92D10 Gauge Cover (NLA)
SKU: 65855-92D10 Weight: 0.100000 Brand: Price: $ 2.25 |
Gauge Cover (NLA) | 1 | $ 2.25 | 1989 to 1992 | |
| 10-1 | 65854-92D10 Lens Gasket (NLA)
SKU: 65854-92D10 Weight: 0.100000 Brand: Price: $ 2.28 |
Lens Gasket (NLA) | 1 | $ 2.28 | 1988 | |
| 10-2 | 65854-92D20 Lens Gasket (NLA)
SKU: 65854-92D20 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens Gasket (NLA) | 1 | $ 1.76 | 1989 to 1992 | |
| 11 | 65853-92D00 Lens (NLA)
SKU: 65853-92D00 Weight: 0.100000 Brand: Price: $ 1.76 |
Lens (NLA) | 1 | $ 1.76 | ||
| 12-1 | 65854-92D00 Lens Gasket (NLA)
SKU: 65854-92D00 Weight: 0.100000 Brand: Price: $ 1.93 |
Lens Gasket (NLA) | 1 | $ 1.93 | 1988 | |
| 12-2 | 65854-92D30 Lens Gasket (NLA)
SKU: 65854-92D30 Weight: 0.100000 Brand: Price: $ 1.79 |
Lens Gasket (NLA) | 1 | $ 1.79 | 1989 to 1992 | |
| 13 | 03222-04083 Screw (NLA)
SKU: 03222-04083 Weight: 0.100000 Brand: Price: $ 1.02 |
Screw (NLA) | 2 | $ 1.02 | ||
| 14 | 65864-92D00 Float (NLA)
SKU: 65864-92D00 Weight: 0.100000 Brand: Price: $ 3.99 |
Float (NLA) | 1 | $ 3.99 | ||
| 15 | 65866-92D00 Push Nut (NLA)
SKU: 65866-92D00 Weight: 0.100000 Brand: Price: $ 0.85 |
Push Nut (NLA) | 1 | $ 0.85 | ||
| 16 | 65871-92D00 Gasket (NLA)
SKU: 65871-92D00 Weight: 0.100000 Brand: Price: $ 2.59 |
Gasket (NLA) | 1 | $ 2.59 | ||
| 17 | 65700-87D16 Fuel Hose (NLA)
SKU: 65700-87D16 Weight: 0.100000 Brand: Price: $ 66.95 |
Fuel Hose (NLA) | 1 | $ 66.95 | ||
| 18 | 65750-94404 Fuel Hose Connector
SKU: 65750-94404 Weight: 0.060000 Brand: Price: $ 21.06 |
Fuel Hose Connector | 2 | $ 21.06 | ||
| 20 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 21 | 65720-94403 Fuel Connector
SKU: 65720-94403 Weight: 0.060000 Brand: Price: $ 21.98 |
Fuel Connector | 1 | $ 21.98 | ||
| 22 | 08310-00107 Nut
SKU: 08310-00107 Weight: 0.060000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 | ||
| 23 | 65871-93010 Fuel Gauge Gasket
SKU: 65871-93010 Weight: 0.060000 Brand: Price: $ 2.49 |
Fuel Gauge Gasket | 1 | $ 2.49 | ||
| 24 | 01500-06107 BOLT
SKU: 01500-06107 Weight: 0.100000 Brand: Price: $ 2.06 |
BOLT | 4 | $ 2.06 | ||
| 25 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 4 | $ 1.85 | ||
| 27 | 65880-98500 Fuel Tank Outlet Assembly (NLA)
SKU: 65880-98500 Weight: 0.100000 Brand: Price: $ 16.21 |
Fuel Tank Outlet Assembly (NLA) | 1 | $ 16.21 | ||
| 28 | 65830-93301 Fuel Outlet Filter (NLA)
SKU: 65830-93301 Weight: 0.100000 Brand: Price: $ 8.70 |
Fuel Outlet Filter (NLA) | 1 | $ 8.70 | ||
| 29 | 02112-05087 SCREW
SKU: 02112-05087 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 30 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 31 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 32 | 65700-98583 Fuel Hose (NLA)
SKU: 65700-98583 Weight: 0.800000 Brand: Price: $ 174.23 |
Fuel Hose (NLA) | 1 | $ 174.23 | ||
| 33 | 65750-94404 Fuel Hose Connector
SKU: 65750-94404 Weight: 0.060000 Brand: Price: $ 21.06 |
Fuel Hose Connector | 1 | $ 21.06 | ||
| 35 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 3 | $ 2.90 | ||
| 36 | 09401-11403 Fuel Hose Clip
SKU: 09401-11403 Weight: 0.060000 Brand: Price: $ 2.62 |
Fuel Hose Clip | 1 | $ 2.62 | ||
| 37 | 65700-92D20 Fuel Hose Joint (NLA)
SKU: 65700-92D20 Weight: 0.100000 Brand: Price: $ 17.30 |
Fuel Hose Joint (NLA) | 1 | $ 17.30 | ||
| 38 | 65750-94404 Fuel Hose Connector
SKU: 65750-94404 Weight: 0.060000 Brand: Price: $ 21.06 |
Fuel Hose Connector | 1 | $ 21.06 | ||
| 39 | 65779-93900 Fuel Hose Union (NLA)
SKU: 65779-93900 Weight: 0.100000 Brand: Price: $ 3.90 |
Fuel Hose Union (NLA) | 1 | $ 3.90 | ||
| 40 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 2 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
