Suzuki DT 4 Parts Listings 1988 to 1998

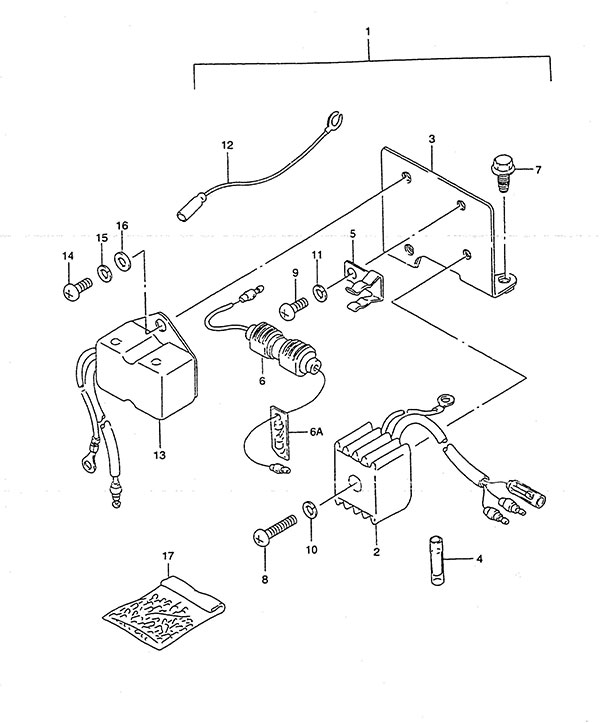

Fig. 38 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32801-98602 Rectifier Set (NLA)
SKU: 32801-98602 Weight: 0.300000 Brand: Price: $ 66.47 |
Rectifier Set (NLA) | 1 | $ 66.47 | ||
| 2 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | ||
| 3 | 32890-98600 Rectifier Bracket (NLA)
SKU: 32890-98600 Weight: 0.100000 Brand: Price: $ 3.20 |
Rectifier Bracket (NLA) | 1 | $ 3.20 | ||
| 4 | 37132-93700 Wire Connector
SKU: 37132-93700 Weight: 0.100000 Brand: Price: $ 2.22 |
Wire Connector | 1 | $ 2.22 | ||
| 5 | 36791-95200 Fuse Case Holder (NLA)
SKU: 36791-95200 Weight: 0.100000 Brand: Price: $ 1.96 |
Fuse Case Holder (NLA) | 1 | $ 1.96 | ||
| 6 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 6A | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | ||
| 7 | 09103-06049 Bolt (6x12) (NLA)
SKU: 09103-06049 Weight: 0.100000 Brand: Price: $ 0.72 |
Bolt (6x12) (NLA) | 2 | $ 0.72 | ||
| 8 | 02142-05257 SCREW 5 X 20
SKU: 02142-05257 Weight: 0.062500 Brand: Price: $ 1.48 |
SCREW 5 X 20 | 1 | $ 1.48 | ||
| 9 | 02112-06087 6X8 CROSS SCREW
SKU: 02112-06087 Weight: 0.125000 Brand: Price: $ 1.44 |
6X8 CROSS SCREW | 1 | $ 1.44 | ||
| 10 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 11 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 12 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 13 | 32500-95722 Voltage Regulator Assembly (NLA)
SKU: 32500-95722 Weight: 0.300000 Brand: Price: $ 371.39 |
Voltage Regulator Assembly (NLA) | 1 | $ 371.39 | ||
| 14 | 02112-06107 SCREW
SKU: 02112-06107 Weight: 0.125000 Brand: Price: $ 1.44 |
SCREW | 2 | $ 1.44 | ||
| 15 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 16 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 17 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
