Suzuki DT 4 Parts Listings 1988 to 1998

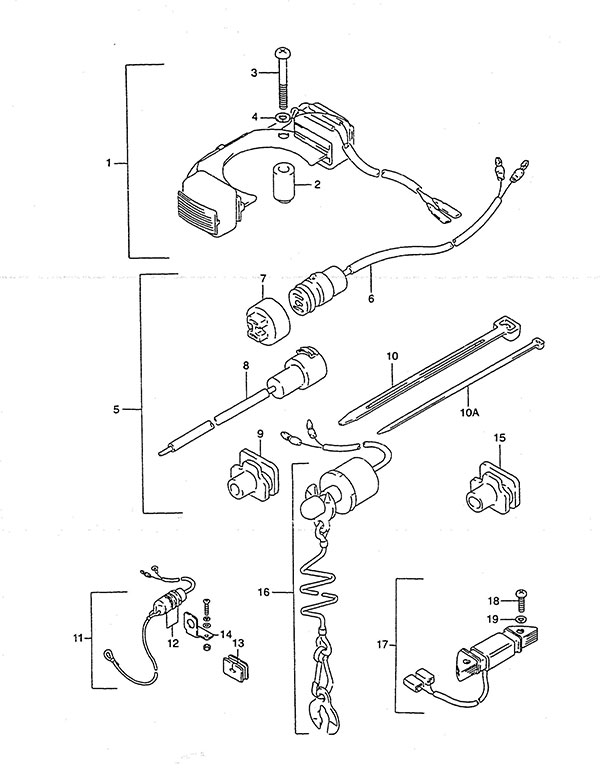

Fig. 36 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32200-98610 Lighting Coil (NLA)
SKU: 32200-98610 Weight: 0.340000 Brand: Price: $ 77.20 |
Lighting Coil (NLA) | 1 | $ 77.20 | ||
| 2 | 09180-05022 Spacer (NLA)
SKU: 09180-05022 Weight: 0.100000 Brand: Price: $ 1.55 |
Spacer (NLA) | 1 | $ 1.55 | ||
| 3 | 02112-0530A Screw
SKU: 02112-0530A Weight: 0.200000 Brand: Price: $ 1.41 |
Screw | 2 | $ 1.41 | ||
| 4 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 5 | 39600-93910 Receptacle Set (NLA)
SKU: 39600-93910 Weight: 1.000000 Brand: Price: $ 79.35 |
Receptacle Set (NLA) | 1 | $ 79.35 | ||
| 6 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 7 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 8 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 9 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | ||
| 10-1 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 10-2 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 11 | 37802-98600 Emergency Switch Set (NLA)
SKU: 37802-98600 Weight: 0.100000 Brand: Price: $ 23.46 |
Emergency Switch Set (NLA) | 1 | $ 23.46 | ||
| 12 | 37830-89X51 Emergency Switch Assembly (NLA)
SKU: 37830-89X51 Weight: 0.250000 Brand: Price: $ 49.45 |
Emergency Switch Assembly (NLA) | 1 | $ 49.45 | ||
| 13 | 37824-92D00 Grommet (NLA)
SKU: 37824-92D00 Weight: 0.100000 Brand: Price: $ 1.64 |
Grommet (NLA) | 1 | $ 1.64 | ||
| 14 | 37950-93901 Switch Bracket (NLA)
SKU: 37950-93901 Weight: 0.100000 Brand: Price: $ 3.39 |
Switch Bracket (NLA) | 1 | $ 3.39 | ||
| 15 | 37824-98100 Grommet (NLA)
SKU: 37824-98100 Weight: 0.100000 Brand: Price: $ 4.14 |
Grommet (NLA) | 1 | $ 4.14 | ||
| 16 | 37802-93931 Emergency Switch Set
SKU: 37802-93931 Weight: 0.500000 Brand: Price: $ 53.27 |
Emergency Switch Set | 1 | $ 53.27 | 1993 to 1995 | |
| 17 | 32200-98600 Lighting Coil
SKU: 32200-98600 Weight: 0.100000 Brand: Price: $ 20.66 |
Lighting Coil | 1 | $ 20.66 | 1997 to 1998 | |
| 18 | 02112-0520B SCREW
SKU: 02112-0520B Weight: 0.100000 Brand: Price: $ 1.85 |
SCREW | 2 | $ 1.85 | 1997 to 1998 | |
| 19 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | 1997 to 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
