Suzuki DT 4 Parts Listings 1988 to 1992

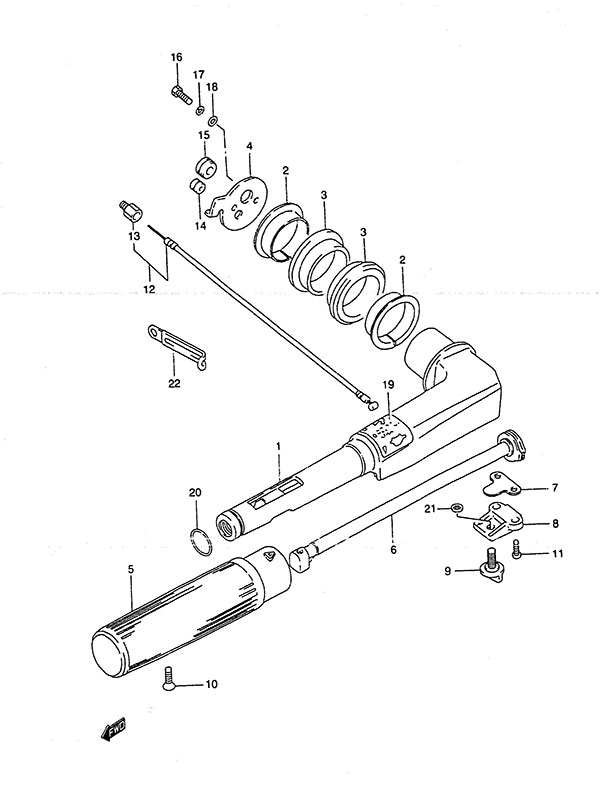

Fig. 33 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-98620-0ED Tiller Handle
SKU: 63111-98620-0ED Weight: 2.000000 Brand: Price: $ 112.08 |
Tiller Handle | 1 | $ 112.08 | Requires Ref# 23, 24 25 | |
| 2 | 63115-98600 Tiller Handle Bushing
SKU: 63115-98600 Weight: 0.100000 Brand: Price: $ 4.84 |
Tiller Handle Bushing | 2 | $ 4.84 | ||
| 3 | 63116-98603 Tiller Handle Mount
SKU: 63116-98603 Weight: 0.200000 Brand: Price: $ 9.81 |
Tiller Handle Mount | 2 | $ 9.81 | ||
| 4 | 63125-98610 Tiller Handle Stopper (NLA)
SKU: 63125-98610 Weight: 0.100000 Brand: Price: $ 6.34 |
Tiller Handle Stopper (NLA) | 1 | $ 6.34 | ||
| 5 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 6 | 63221-98600 Handle Rod (NLA)
SKU: 63221-98600 Weight: 0.100000 Brand: Price: $ 9.14 |
Handle Rod (NLA) | 1 | $ 9.14 | ||
| 7 | 63225-98601 Throttle Adjust Plate
SKU: 63225-98601 Weight: 0.060000 Brand: Price: $ 4.05 |
Throttle Adjust Plate | 1 | $ 4.05 | ||
| 8 | 63241-986B0 Handle Rod Support
SKU: 63241-986B0 Weight: 0.060000 Brand: Price: $ 7.01 |
Handle Rod Support | 1 | $ 7.01 | ||
| 9 | 63244-986A0 Throttle Adjust Knob
SKU: 63244-986A0 Weight: 0.060000 Brand: Price: $ 5.83 |
Throttle Adjust Knob | 1 | $ 5.83 | ||
| 10 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 1 | $ 1.88 | ||
| 11 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 2 | $ 1.97 | ||
| 12 | 63610-986A0 Throttle Cable Assembly
SKU: 63610-986A0 Weight: 0.060000 Brand: Price: $ 16.12 |
Throttle Cable Assembly | 1 | $ 16.12 | ||
| 13 | 63621-98600 Throttle Cable Guide
SKU: 63621-98600 Weight: 0.125000 Brand: Price: $ 3.83 |
Throttle Cable Guide | 1 | $ 3.83 | ||
| 14 | 09308-05015 Grommet
SKU: 09308-05015 Weight: 0.100000 Brand: Price: $ 2.03 |
Grommet | 1 | $ 2.03 | ||
| 15 | 09308-05018 Grommet (NLA)
SKU: 09308-05018 Weight: 0.100000 Brand: Price: $ 1.07 |
Grommet (NLA) | 1 | $ 1.07 | ||
| 16 | 01500-05127 BOLT
SKU: 01500-05127 Weight: 0.060000 Brand: Price: $ 2.10 |
BOLT | 2 | $ 2.10 | ||
| 17 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 18 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | ||
| 19 | 63215-93400 Handle Grip Mark
SKU: 63215-93400 Weight: 0.060000 Brand: Price: $ 2.14 |
Handle Grip Mark | 1 | $ 2.14 | ||
| 20 | 09280-20004 O-Ring
SKU: 09280-20004 Weight: 0.060000 Brand: Price: $ 1.44 |
O-Ring | 1 | $ 1.44 | ||
| 21 | 09148-06008 Nut
SKU: 09148-06008 Weight: 0.060000 Brand: Price: $ 1.30 |
Nut | 1 | $ 1.30 | ||
| 22 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 23 | 63125-98611 Tiller Handle Stopper (NLA)
SKU: 63125-98611 Weight: 0.100000 Brand: Price: $ 5.59 |
Tiller Handle Stopper (NLA) | 1 | $ 5.59 | Not Shown | |
| 24 | 09250-13005 Plug (NLA)
SKU: 09250-13005 Weight: 0.100000 Brand: Price: $ 2.03 |
Plug (NLA) | 1 | $ 2.03 | Not Shown | |
| 25 | 01570-06167 BOLT
SKU: 01570-06167 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 2 | $ 2.62 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
