Suzuki DT 4 Parts Listings 1988 to 1993

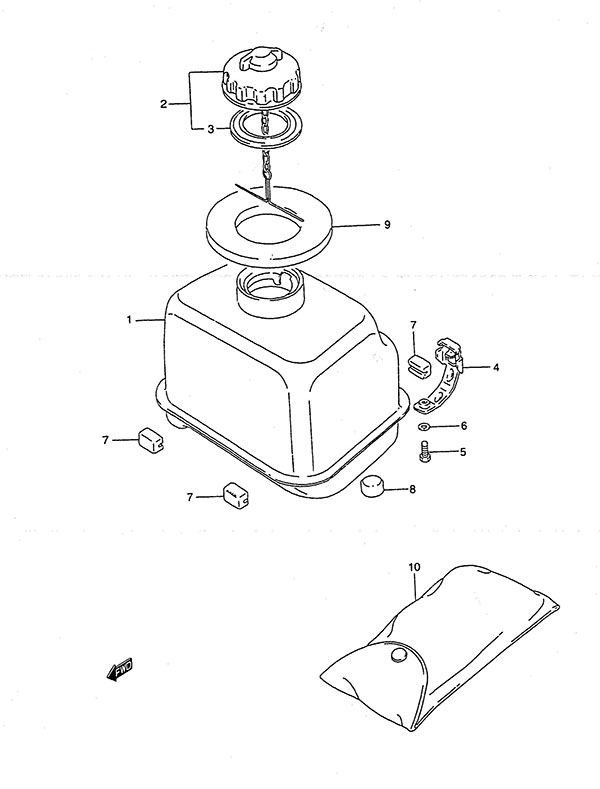

Fig. 29 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 65110-98601 Fuel Tank (NLA)
SKU: 65110-98601 Weight: 2.040000 Brand: Price: $ 73.10 |
Fuel Tank (NLA) | 1 | $ 73.10 | 1988 to 1989 | |
| 1-2 | 65110-98610 Fuel Tank (NLA)
SKU: 65110-98610 Weight: 2.000000 Brand: Price: $ 72.65 |
Fuel Tank (NLA) | 1 | $ 72.65 | 1990 to 1993 | |
| 2 | 65510-98900 Fuel Tank Cap Assembly (NLA)
SKU: 65510-98900 Weight: 0.180000 Brand: Price: $ 36.86 |
Fuel Tank Cap Assembly (NLA) | 1 | $ 36.86 | ||
| 3 | 65561-98600 Tank Cap Gasket
SKU: 65561-98600 Weight: 0.060000 Brand: Price: $ 4.74 |
Tank Cap Gasket | 1 | $ 4.74 | ||
| 4 | 65261-98601 Fuel Tank Bracket
SKU: 65261-98601 Weight: 0.100000 Brand: Price: $ 8.09 |
Fuel Tank Bracket | 2 | $ 8.09 | ||
| 5 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 2 | $ 3.08 | ||
| 6 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 7 | 65283-98600 Cushion (NLA)
SKU: 65283-98600 Weight: 0.100000 Brand: Price: $ 2.87 |
Cushion (NLA) | 4 | $ 2.87 | ||
| 8 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 3 | $ 2.67 | ||
| 9 | 65281-98601 Fuel Tank Grommet (NLA)
SKU: 65281-98601 Weight: 0.100000 Brand: Price: $ 6.63 |
Fuel Tank Grommet (NLA) | 1 | $ 6.63 | ||
| 10 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
