Suzuki DT 4 Parts Listings 1994 to 1996

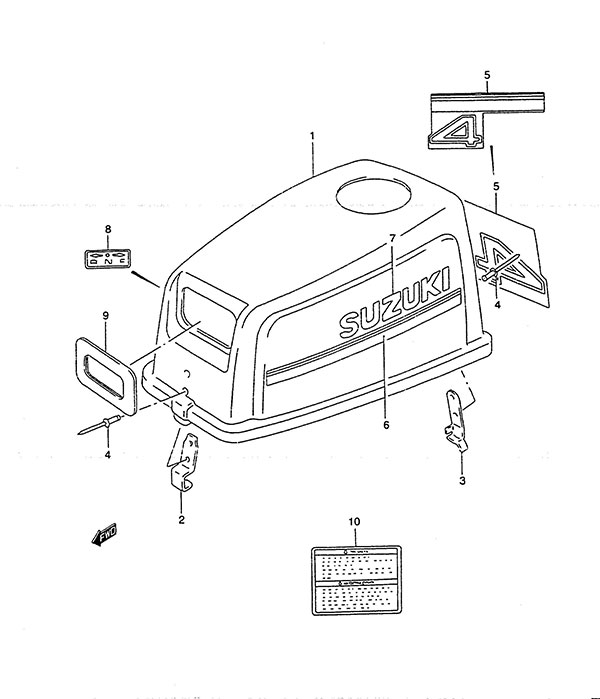

Fig. 26 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-98891-0EM Engine Cover Set (NLA)
SKU: 61410-98891-0EM Weight: 30.000000 Brand: Price: $ 214.63 |
Engine Cover Set (NLA) | 1 | $ 214.63 | ||
| 2 | 61412-98601 Upper Cover Hook (NLA)
SKU: 61412-98601 Weight: 0.100000 Brand: Price: $ 3.94 |
Upper Cover Hook (NLA) | 1 | $ 3.94 | ||
| 3 | 61611-98610 Upper Cover Fastener (NLA)
SKU: 61611-98610 Weight: 0.100000 Brand: Price: $ 4.97 |
Upper Cover Fastener (NLA) | 1 | $ 4.97 | ||
| 4 | 09229-04020 Rivet
SKU: 09229-04020 Weight: 0.100000 Brand: Price: $ 2.77 |
Rivet | 4 | $ 2.77 | ||
| 5 | 61435-98670 Rear Engine Cover Mark (NLA)
SKU: 61435-98670 Weight: 0.060000 Brand: Price: $ 11.21 |
Rear Engine Cover Mark (NLA) | 1 | $ 11.21 | ||
| 6 | 61440-98600 Engine Cover Stripe Set (NLA)
SKU: 61440-98600 Weight: 0.060000 Brand: Price: $ 14.07 |
Engine Cover Stripe Set (NLA) | 1 | $ 14.07 | ||
| 7 | 68111-01C20-C4Z Suzuki Emblem (NLA)
SKU: 68111-01C20-C4Z Weight: 0.060000 Brand: Price: $ 5.57 |
Suzuki Emblem (NLA) | 2 | $ 5.57 | ||
| 8 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 9 | 61622-98600 Recoil Starter Seal (NLA)
SKU: 61622-98600 Weight: 0.100000 Brand: Price: $ 5.18 |
Recoil Starter Seal (NLA) | 1 | $ 5.18 | ||
| 10 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
