Suzuki DT 4 Parts Listings 1997 to 1998

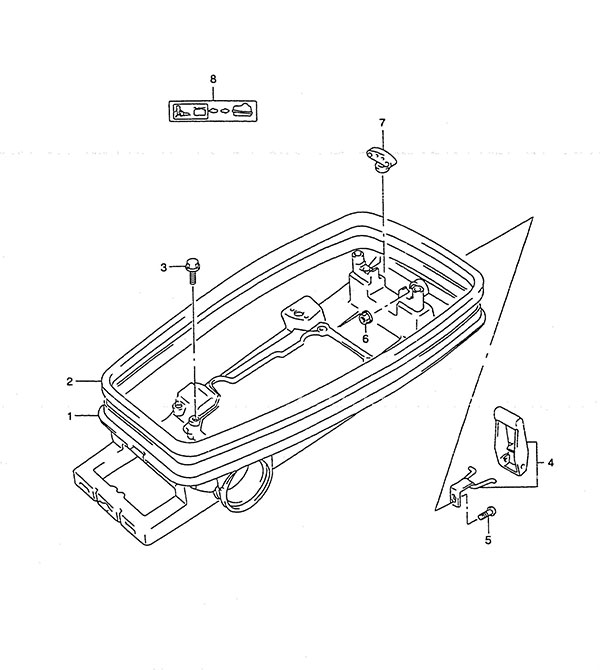

Fig. 23 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61111-986V0-0ED Lower Engine Cover (NLA)
SKU: 61111-986V0-0ED Weight: 50.000000 Brand: Price: $ 167.89 |
Lower Engine Cover (NLA) | 1 | $ 167.89 | ||
| 2 | 61112-98612 Lower Engine Cover Rubber
SKU: 61112-98612 Weight: 0.100000 Brand: Price: $ 41.12 |
Lower Engine Cover Rubber | 1 | $ 41.12 | ||
| 3 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 4 | $ 3.07 | ||
| 4 | 61600-98800 Fastener Set (NLA)
SKU: 61600-98800 Weight: 0.060000 Brand: Price: $ 13.29 |
Fastener Set (NLA) | 1 | $ 13.29 | ||
| 5 | 02112-05167 SCREW
SKU: 02112-05167 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 1 | $ 1.97 | ||
| 6 | 08310-00057 Nut
SKU: 08310-00057 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 7 | 61521-98400 Shear Pin Holder (NLA)
SKU: 61521-98400 Weight: 0.100000 Brand: Price: $ 2.32 |
Shear Pin Holder (NLA) | 1 | $ 2.32 | ||
| 8 | 61211-98302-064 Fuel Cock Mark (NLA)
SKU: 61211-98302-064 Weight: 0.100000 Brand: Price: $ 1.18 |
Fuel Cock Mark (NLA) | 1 | $ 1.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
