Suzuki DT 4 Parts Listings 1988 to 1996

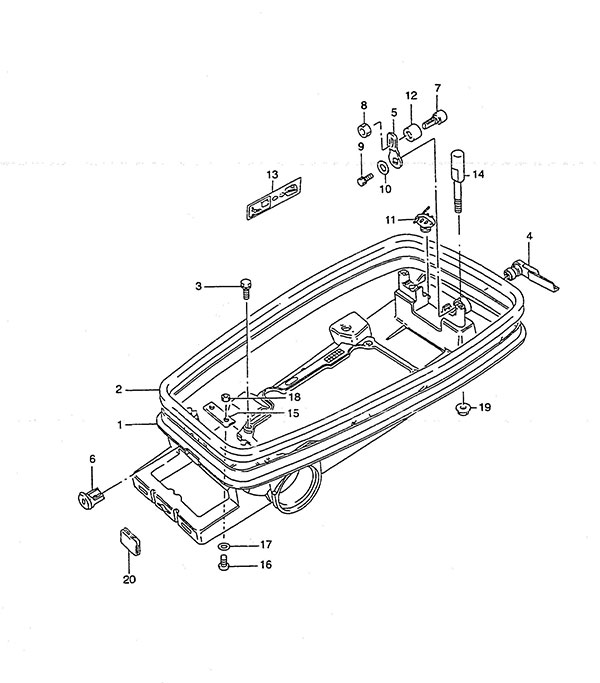

Fig. 22 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61111-98603-02M Lower Engine Cover (NLA)
SKU: 61111-98603-02M Weight: 0.100000 Brand: Price: $ 91.68 |
Lower Engine Cover (NLA) | 1 | $ 91.68 | 1988 | |
| 1-2 | 61111-98603-0ED Lower Engine Cover (NLA)
SKU: 61111-98603-0ED Weight: 0.100000 Brand: Price: $ 127.11 |
Lower Engine Cover (NLA) | 1 | $ 127.11 | 1989 | |
| 1-3 | 61111-98650-0ED Lower Engine Cover (NLA)
SKU: 61111-98650-0ED Weight: 0.100000 Brand: Price: $ 161.01 |
Lower Engine Cover (NLA) | 1 | $ 161.01 | 1990 to 1996 | |
| 2 | 61112-98602 Lower Engine Cover Rubber (NLA)
SKU: 61112-98602 Weight: 0.100000 Brand: Price: $ 27.33 |
Lower Engine Cover Rubber (NLA) | 1 | $ 27.33 | ||
| 3 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 4 | $ 3.07 | ||
| 4 | 61633-98600 Hook Lever (NLA)
SKU: 61633-98600 Weight: 0.060000 Brand: Price: $ 6.93 |
Hook Lever (NLA) | 1 | $ 6.93 | ||
| 5 | 61631-98602 Lower Cover Hook (NLA)
SKU: 61631-98602 Weight: 0.100000 Brand: Price: $ 3.20 |
Lower Cover Hook (NLA) | 1 | $ 3.20 | ||
| 6 | 13632-93900 Grommet
SKU: 13632-93900 Weight: 0.060000 Brand: Price: $ 2.96 |
Grommet | 1 | $ 2.96 | ||
| 7 | 61635-98602 Lower Hook Pin
SKU: 61635-98602 Weight: 0.060000 Brand: Price: $ 6.25 |
Lower Hook Pin | 1 | $ 6.25 | ||
| 8-1 | 09140-06023 Nut
SKU: 09140-06023 Weight: 0.100000 Brand: Price: $ 2.06 |
Nut | 1 | $ 2.06 | 1988 to 1995 | |
| 8-2 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | 1996 | |
| 9 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 1 | $ 3.07 | ||
| 10 | 09160-06052 Washer
SKU: 09160-06052 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 1 | $ 1.44 | ||
| 11 | 61521-98400 Shear Pin Holder (NLA)
SKU: 61521-98400 Weight: 0.100000 Brand: Price: $ 2.32 |
Shear Pin Holder (NLA) | 1 | $ 2.32 | ||
| 12 | 61636-98600 Lower Hook Roller
SKU: 61636-98600 Weight: 0.125000 Brand: Price: $ 3.46 |
Lower Hook Roller | 1 | $ 3.46 | ||
| 13 | 61211-98302-064 Fuel Cock Mark (NLA)
SKU: 61211-98302-064 Weight: 0.100000 Brand: Price: $ 1.18 |
Fuel Cock Mark (NLA) | 1 | $ 1.18 | ||
| 14 | 65196-98601 Fuel Tank Bolt (NLA)
SKU: 65196-98601 Weight: 0.100000 Brand: Price: $ 6.19 |
Fuel Tank Bolt (NLA) | 2 | $ 6.19 | 1990 to 1993 | |
| 15 | 61182-98601 Lower Cover Plate (NLA)
SKU: 61182-98601 Weight: 0.100000 Brand: Price: $ 2.87 |
Lower Cover Plate (NLA) | 1 | $ 2.87 | ||
| 16 | 02112-04087 SCREW 4X8
SKU: 02112-04087 Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW 4X8 | 2 | $ 1.11 | ||
| 17 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 18 | 08310-00047 Nut
SKU: 08310-00047 Weight: 0.100000 Brand: Price: $ 1.93 |
Nut | 2 | $ 1.93 | ||
| 19 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | 1990 to 1993 | |
| 20 | 39669-94400 Lower Cover Plug
SKU: 39669-94400 Weight: 0.100000 Brand: Price: $ 4.32 |
Lower Cover Plug | 1 | $ 4.32 | 1991 to 1996 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
