Suzuki DT 4 Parts Listings 1988 to 1998

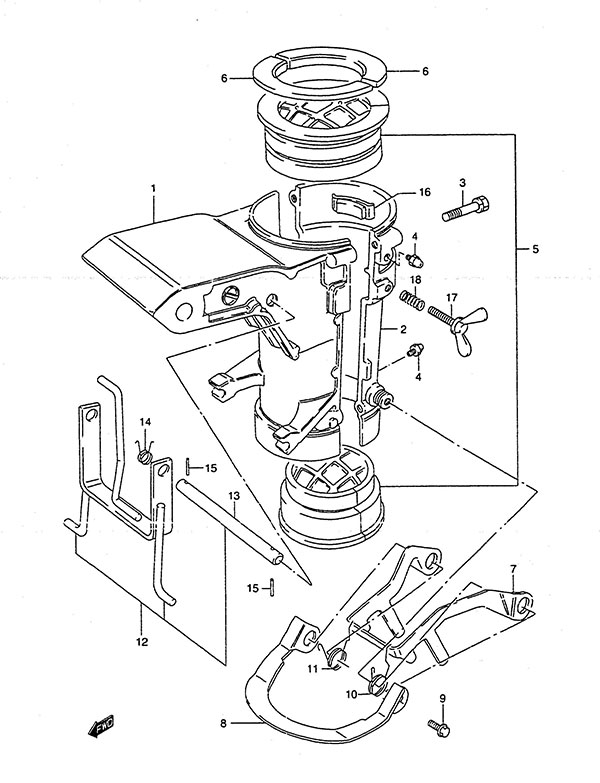

Fig. 18 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-98620-0ED Swivel Bracket (NLA)
SKU: 43111-98620-0ED Weight: 10.000000 Brand: Price: $ 120.47 |
Swivel Bracket (NLA) | 1 | $ 120.47 | ||
| 2 | 43121-98620-0ED Swivel Bracket Cover (NLA)
SKU: 43121-98620-0ED Weight: 0.100000 Brand: Price: $ 60.58 |
Swivel Bracket Cover (NLA) | 1 | $ 60.58 | ||
| 3 | 09117-06043 Bolt (6x40)
SKU: 09117-06043 Weight: 0.060000 Brand: Price: $ 3.47 |
Bolt (6x40) | 4 | $ 3.47 | ||
| 4 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 5 | 43710-98600 Steering Bushing Set
SKU: 43710-98600 Weight: 0.100000 Brand: Price: $ 38.75 |
Steering Bushing Set | 1 | $ 38.75 | ||
| 6 | 43712-98601 Upper Bushing Plate
SKU: 43712-98601 Weight: 0.060000 Brand: Price: $ 4.05 |
Upper Bushing Plate | 2 | $ 4.05 | ||
| 7 | 45231-98601 Reverse Lock Arm (NLA)
SKU: 45231-98601 Weight: 0.100000 Brand: Price: $ 10.14 |
Reverse Lock Arm (NLA) | 1 | $ 10.14 | ||
| 8 | 45232-98600 Reverse Lock Plate (NLA)
SKU: 45232-98600 Weight: 0.100000 Brand: Price: $ 9.82 |
Reverse Lock Plate (NLA) | 1 | $ 9.82 | ||
| 9 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 10 | 45211-98601 Starboard Spring (NLA)
SKU: 45211-98601 Weight: 0.100000 Brand: Price: $ 1.70 |
Starboard Spring (NLA) | 1 | $ 1.70 | ||
| 11 | 45212-98601 Port Spring (NLA)
SKU: 45212-98601 Weight: 0.100000 Brand: Price: $ 1.03 |
Port Spring (NLA) | 1 | $ 1.03 | ||
| 12 | 45700-98600-0ED Shallow Water Drive Assembly
SKU: 45700-98600-0ED Weight: 1.000000 Brand: Price: $ 91.36 |
Shallow Water Drive Assembly | 1 | $ 91.36 | ||
| 13 | 09200-08045 Shallow Water Drive Shaft (NLA)
SKU: 09200-08045 Weight: 0.100000 Brand: Price: $ 4.70 |
Shallow Water Drive Shaft (NLA) | 1 | $ 4.70 | ||
| 14 | 45722-98600 Spring (NLA)
SKU: 45722-98600 Weight: 0.100000 Brand: Price: $ 1.94 |
Spring (NLA) | 1 | $ 1.94 | ||
| 15 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 16 | 43410-98600 Steering Adjuster (NLA)
SKU: 43410-98600 Weight: 0.100000 Brand: Price: $ 9.32 |
Steering Adjuster (NLA) | 1 | $ 9.32 | ||
| 17 | 09119-06060 Bolt (6x23)
SKU: 09119-06060 Weight: 0.060000 Brand: Price: $ 17.33 |
Bolt (6x23) | 1 | $ 17.33 | ||
| 18 | 09440-09042 Spring
SKU: 09440-09042 Weight: 0.100000 Brand: Price: $ 1.57 |
Spring | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
