Suzuki DT 4 Parts Listings 1988 to 1996

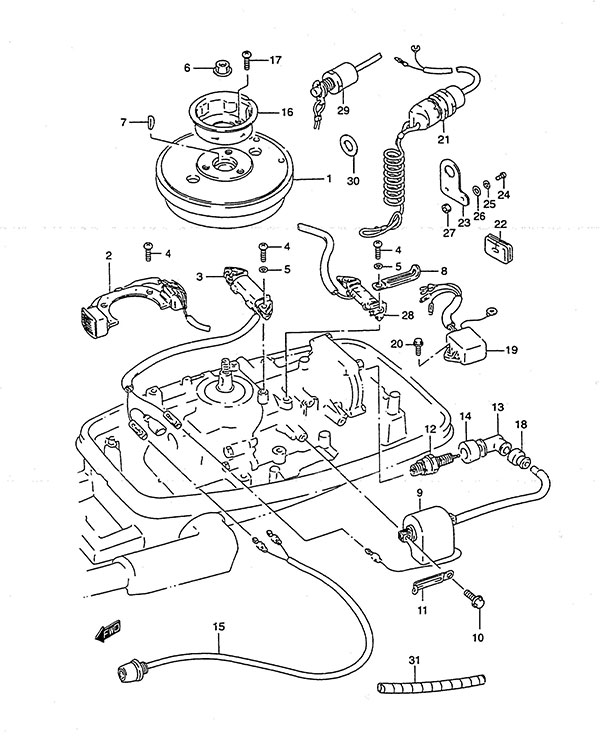

Fig. 14 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-98611 Flywheel (NLA)
SKU: 32102-98611 Weight: 10.000000 Brand: Price: $ 185.07 |
Flywheel (NLA) | 1 | $ 185.07 | ||
| 2 | 32200-98610 Lighting Coil (NLA)
SKU: 32200-98610 Weight: 0.340000 Brand: Price: $ 77.20 |
Lighting Coil (NLA) | 1 | $ 77.20 | ||
| 3 | 32140-98611 Ignition Coil
SKU: 32140-98611 Weight: 0.360000 Brand: Price: $ 102.63 |
Ignition Coil | 1 | $ 102.63 | ||
| 4 | 02112-05257 SCREW 5X25
SKU: 02112-05257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW 5X25 | 4 | $ 1.49 | ||
| 5 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | ||
| 6 | 08316-1010B Nut
SKU: 08316-1010B Weight: 0.200000 Brand: Price: $ 2.67 |
Nut | 1 | $ 2.67 | ||
| 7 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 9 | 33410-98610 Ignition Coil Assembly (NLA)
SKU: 33410-98610 Weight: 0.400000 Brand: Price: $ 68.76 |
Ignition Coil Assembly (NLA) | 1 | $ 68.76 | ||
| 10 | 09103-06048 Bolt (6x20) (NLA)
SKU: 09103-06048 Weight: 0.060000 Brand: Price: $ 1.06 |
Bolt (6x20) (NLA) | 2 | $ 1.06 | ||
| 11 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 12-1 | 09482-00124 NGK BP5HS Spark Plug
SKU: 09482-00124 Weight: 0.187500 Brand: Price: $ 3.31 |
NGK BP5HS Spark Plug | 1 | $ 3.31 | 1988 to 1993 | |
| 12-2 | 09482-00359 NGK BPR5HS Spark Plug
SKU: 09482-00359 Weight: 0.187500 Brand: Price: $ 3.83 |
NGK BPR5HS Spark Plug | 1 | $ 3.83 | 1994 to 1996 | |
| 13-1 | 33510-22010 Spark Plug Cap (NLA)
SKU: 33510-22010 Weight: 0.100000 Brand: Price: $ 8.25 |
Spark Plug Cap (NLA) | 1 | $ 8.25 | 1988 to 1993 | |
| 13-2 | 33510-98601 Spark Plug Cap
SKU: 33510-98601 Weight: 0.060000 Brand: Price: $ 23.22 |
Spark Plug Cap | 1 | $ 23.22 | 1994 to 1996 | |
| 14 | 33541-93950 Spark Plug Seal
SKU: 33541-93950 Weight: 0.060000 Brand: Price: $ 9.53 |
Spark Plug Seal | 1 | $ 9.53 | 1988 to 1993 | |
| 15 | 37800-98572 Engine Stop Switch Assembly (NLA)
SKU: 37800-98572 Weight: 0.080000 Brand: Price: $ 25.25 |
Engine Stop Switch Assembly (NLA) | 1 | $ 25.25 | ||
| 16 | 18411-98601 Starter Cup (NLA)
SKU: 18411-98601 Weight: 0.100000 Brand: Price: $ 12.16 |
Starter Cup (NLA) | 1 | $ 12.16 | ||
| 17 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 3 | $ 1.85 | ||
| 18 | 33542-38B00 Spark Plug Cap Seal
SKU: 33542-38B00 Weight: 0.060000 Brand: Price: $ 4.58 |
Spark Plug Cap Seal | 1 | $ 4.58 | 1988 to 1993 | |
| 19 | 32900-98601 CDI Unit Assembly (NLA)
SKU: 32900-98601 Weight: 1.000000 Brand: Price: $ 312.68 |
CDI Unit Assembly (NLA) | 1 | $ 312.68 | ||
| 20 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 21 | 37830-89X51 Emergency Switch Assembly (NLA)
SKU: 37830-89X51 Weight: 0.250000 Brand: Price: $ 49.45 |
Emergency Switch Assembly (NLA) | 1 | $ 49.45 | 1988 to 1993 | |
| 22 | 37824-92D00 Grommet (NLA)
SKU: 37824-92D00 Weight: 0.100000 Brand: Price: $ 1.64 |
Grommet (NLA) | 1 | $ 1.64 | ||
| 23 | 37950-93901 Switch Bracket (NLA)
SKU: 37950-93901 Weight: 0.100000 Brand: Price: $ 3.39 |
Switch Bracket (NLA) | 1 | $ 3.39 | ||
| 24 | 02112-0416A SCREW
SKU: 02112-0416A Weight: 0.125000 Brand: Price: $ 1.24 |
SCREW | 2 | $ 1.24 | ||
| 25 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 26 | 08322-01047 Washer
SKU: 08322-01047 Weight: 0.125000 Brand: Price: $ 1.87 |
Washer | 2 | $ 1.87 | ||
| 27 | 08310-0004A Nut
SKU: 08310-0004A Weight: 0.200000 Brand: Price: $ 1.99 |
Nut | 2 | $ 1.99 | ||
| 28 | 32150-98600 Ignition Coil (NLA)
SKU: 32150-98600 Weight: 0.250000 Brand: Price: $ 45.85 |
Ignition Coil (NLA) | 1 | $ 45.85 | ||
| 29 | 37830-89E04 Stop Switch Assembly
SKU: 37830-89E04 Weight: 0.180000 Brand: Price: $ 50.66 |
Stop Switch Assembly | 1 | $ 50.66 | 1993 to 1996 | |
| 30 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | ||
| 31 | 33446-98E20 High Tension Protect Tube (NLA)
SKU: 33446-98E20 Weight: 0.100000 Brand: Price: $ 2.96 |
High Tension Protect Tube (NLA) | 1 | $ 2.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
