Suzuki DT 4 Parts Listings 1988 to 1998

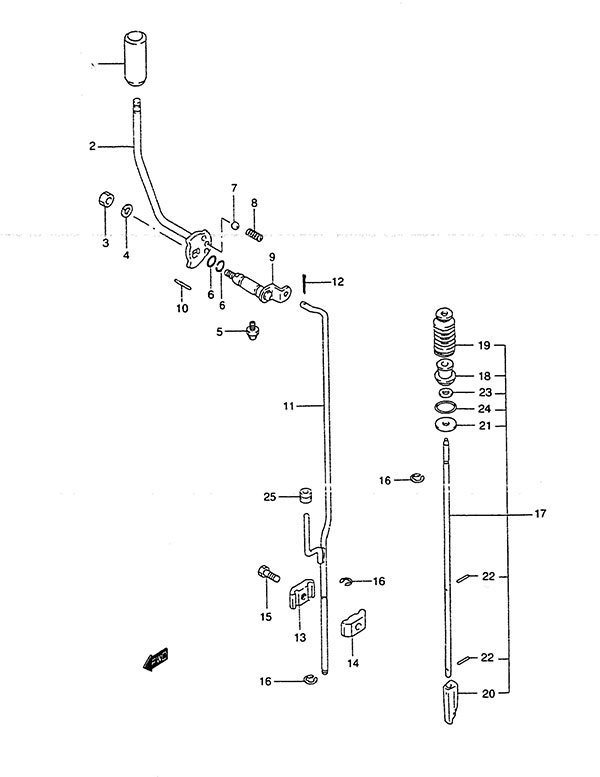

Fig. 13 - Clutch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21141-98500 Clutch Lever Knob
SKU: 21141-98500 Weight: 0.060000 Brand: Price: $ 4.05 |
Clutch Lever Knob | 1 | $ 4.05 | ||
| 2 | 21110-98503 Clutch Lever
SKU: 21110-98503 Weight: 0.250000 Brand: Price: $ 21.45 |
Clutch Lever | 1 | $ 21.45 | ||
| 3 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 4 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
| 5 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 | ||
| 6 | 09280-09005 O-Ring
SKU: 09280-09005 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 2 | $ 3.76 | ||
| 7 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 8 | 09440-07021 Spring
SKU: 09440-07021 Weight: 0.060000 Brand: Price: $ 1.56 |
Spring | 1 | $ 1.56 | ||
| 9 | 21210-98601 Clutch Lever Shaft (NLA)
SKU: 21210-98601 Weight: 0.100000 Brand: Price: $ 8.72 |
Clutch Lever Shaft (NLA) | 1 | $ 8.72 | ||
| 10 | 09205-05014 Pin
SKU: 09205-05014 Weight: 0.060000 Brand: Price: $ 1.89 |
Pin | 1 | $ 1.89 | ||
| 11-1 | 23110-98611 Clutch Rod (S)
SKU: 23110-98611 Weight: 0.250000 Brand: Price: $ 18.47 |
Clutch Rod (S) | 1 | $ 18.47 | w/Transom (S) | |
| 11-2 | 23110-98601 Clutch Rod (L) (NLA)
SKU: 23110-98601 Weight: 0.100000 Brand: Price: $ 10.26 |
Clutch Rod (L) (NLA) | 1 | $ 10.26 | Type: L | |
| 12 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 13 | 23311-99001 Clutch Rod Connector
SKU: 23311-99001 Weight: 0.060000 Brand: Price: $ 11.89 |
Clutch Rod Connector | 1 | $ 11.89 | ||
| 14 | 23321-99001 Clutch Rod Connector
SKU: 23321-99001 Weight: 0.060000 Brand: Price: $ 12.43 |
Clutch Rod Connector | 1 | $ 12.43 | ||
| 15 | 09138-06037 Bolt (6x20)
SKU: 09138-06037 Weight: 0.060000 Brand: Price: $ 3.60 |
Bolt (6x20) | 1 | $ 3.60 | ||
| 16 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 3 | $ 0.76 | ||
| 17 | 25100-98603 Shift Rod Assembly (NLA)
SKU: 25100-98603 Weight: 0.100000 Brand: Price: $ 46.06 |
Shift Rod Assembly (NLA) | 1 | $ 46.06 | ||
| 18 | 25211-98601 Shift Rod Guide
SKU: 25211-98601 Weight: 0.060000 Brand: Price: $ 4.20 |
Shift Rod Guide | 1 | $ 4.20 | ||
| 19 | 25222-93902 Shift Rod Boot
SKU: 25222-93902 Weight: 0.060000 Brand: Price: $ 7.90 |
Shift Rod Boot | 1 | $ 7.90 | ||
| 20 | 25311-93910 Shift Cam
SKU: 25311-93910 Weight: 0.060000 Brand: Price: $ 24.22 |
Shift Cam | 1 | $ 24.22 | ||
| 21 | 09160-05501 Washer (5.5x20x1.2)
SKU: 09160-05501 Weight: 0.100000 Brand: Price: $ 1.85 |
Washer (5.5x20x1.2) | 1 | $ 1.85 | ||
| 22 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 2 | $ 1.07 | ||
| 23 | 09280-05008 O-Ring
SKU: 09280-05008 Weight: 0.060000 Brand: Price: $ 2.52 |
O-Ring | 1 | $ 2.52 | ||
| 24 | 09280-15007 O-Ring
SKU: 09280-15007 Weight: 0.060000 Brand: Price: $ 1.73 |
O-Ring | 1 | $ 1.73 | ||
| 25 | 09320-04010 Bushing
SKU: 09320-04010 Weight: 0.100000 Brand: Price: $ 1.99 |
Bushing | 1 | $ 1.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
