Suzuki DT 4 Parts Listings 1988 to 1998

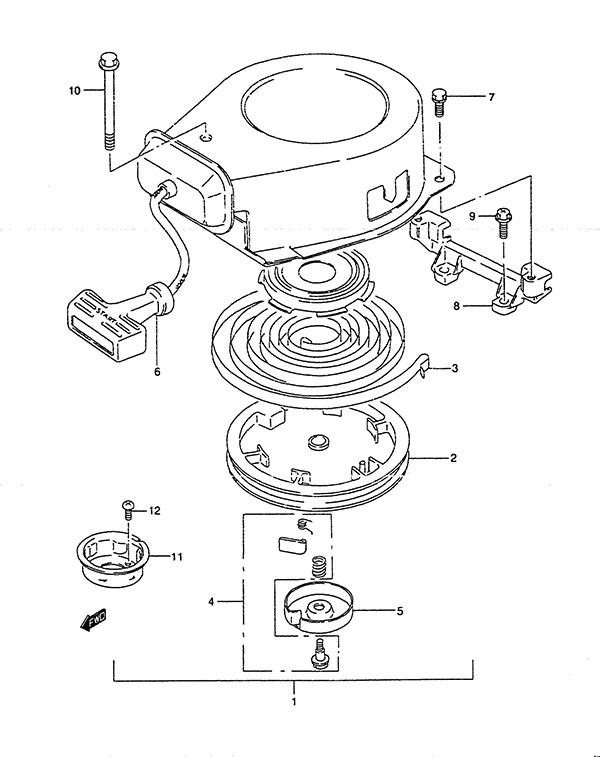

Fig. 11 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-98602 Recoil Starter Assembly
SKU: 18100-98602 Weight: 4.000000 Brand: Price: $ 130.70 |
Recoil Starter Assembly | 1 | $ 130.70 | ||
| 2 | 18121-90604 Starter Reel
SKU: 18121-90604 Weight: 0.100000 Brand: Price: $ 20.62 |
Starter Reel | 1 | $ 20.62 | ||
| 3 | 18142-98600 Recoil Spring
SKU: 18142-98600 Weight: 0.500000 Brand: Price: $ 26.65 |
Recoil Spring | 1 | $ 26.65 | ||
| 4 | 18130-98600 Ratchet Set (NLA)
SKU: 18130-98600 Weight: 0.100000 Brand: Price: $ 12.15 |
Ratchet Set (NLA) | 1 | $ 12.15 | ||
| 5 | 18151-90600 Plate (NLA)
SKU: 18151-90600 Weight: 0.100000 Brand: Price: $ 3.25 |
Plate (NLA) | 1 | $ 3.25 | ||
| 6 | 18210-98600 Grip Assembly (NLA)
SKU: 18210-98600 Weight: 0.100000 Brand: Price: $ 5.65 |
Grip Assembly (NLA) | 1 | $ 5.65 | ||
| 7-1 | 09103-06092 Bolt (6x15)
SKU: 09103-06092 Weight: 0.060000 Brand: Price: $ 1.86 |
Bolt (6x15) | 2 | $ 1.86 | 1988 to 1993 | |
| 7-2 | 01570-06207 BOLT
SKU: 01570-06207 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 2 | $ 2.72 | 1994 to 1998 | |
| 8 | 18711-986A0-0ED Recoil Starter Brace (NLA)
SKU: 18711-986A0-0ED Weight: 0.100000 Brand: Price: $ 39.57 |
Recoil Starter Brace (NLA) | 1 | $ 39.57 | ||
| 9 | 02162-06207 SCREW
SKU: 02162-06207 Weight: 0.060000 Brand: Price: $ 1.51 |
SCREW | 2 | $ 1.51 | ||
| 10 | 09103-06159 Bolt (6x75) (NLA)
SKU: 09103-06159 Weight: 0.100000 Brand: Price: $ 2.57 |
Bolt (6x75) (NLA) | 1 | $ 2.57 | ||
| 11 | 18411-98601 Starter Cup (NLA)
SKU: 18411-98601 Weight: 0.100000 Brand: Price: $ 12.16 |
Starter Cup (NLA) | 1 | $ 12.16 | ||
| 12 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 3 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
