Suzuki DT 4 Parts Listings 1988 to 1998

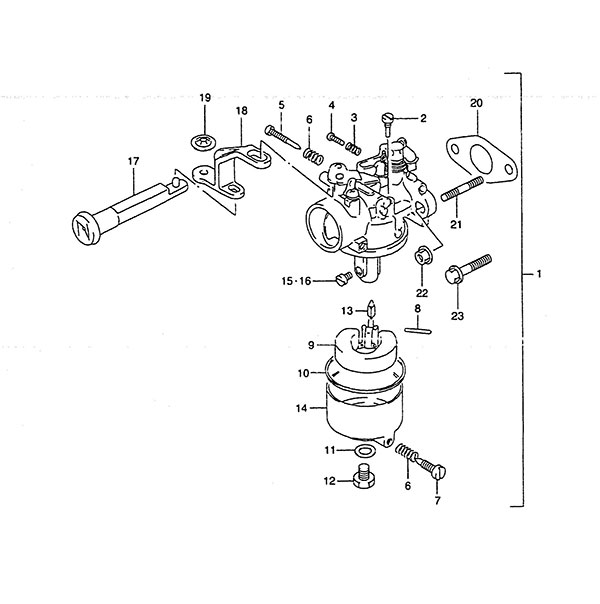

Fig. 5 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13200-98621 Carburetor Assembly
SKU: 13200-98621 Weight: 0.560000 Brand: Price: $ 181.85 |
Carburetor Assembly | 1 | $ 181.85 | 1988 to 1997 | |
| 1-2 | 13200-98630 Carburetor Assembly (NLA)
SKU: 13200-98630 Weight: 0.100000 Brand: Price: $ 94.19 |
Carburetor Assembly (NLA) | 1 | $ 94.19 | 1998 | |
| 2 | 09492-45035 Pilot Jet #45
SKU: 09492-45035 Weight: 0.125000 Brand: Price: $ 15.87 |
Pilot Jet #45 | 1 | $ 15.87 | ||
| 3 | 13268-92910 Spring
SKU: 13268-92910 Weight: 0.060000 Brand: Price: $ 2.44 |
Spring | 1 | $ 2.44 | ||
| 4 | 13534-98900 Screw
SKU: 13534-98900 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 5 | 13269-98300 Pilot Air Screw (NLA)
SKU: 13269-98300 Weight: 0.060000 Brand: Price: $ 6.45 |
Pilot Air Screw (NLA) | 1 | $ 6.45 | ||
| 6 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 2 | $ 4.61 | ||
| 7 | 13616-93900 Adjuster
SKU: 13616-93900 Weight: 0.060000 Brand: Price: $ 12.43 |
Adjuster | 1 | $ 12.43 | ||
| 8 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 1 | $ 3.28 | ||
| 9 | 13250-98310 Carburetor Float
SKU: 13250-98310 Weight: 0.060000 Brand: Price: $ 18.91 |
Carburetor Float | 1 | $ 18.91 | ||
| 10 | 13251-98300 Float Chamber Gasket
SKU: 13251-98300 Weight: 0.060000 Brand: Price: $ 5.25 |
Float Chamber Gasket | 1 | $ 5.25 | ||
| 11 | 13343-98520 Bolt Chamber Gasket
SKU: 13343-98520 Weight: 0.060000 Brand: Price: $ 2.34 |
Bolt Chamber Gasket | 1 | $ 2.34 | ||
| 12 | 13613-98300 Bolt (NLA)
SKU: 13613-98300 Weight: 0.060000 Brand: Price: $ 3.20 |
Bolt (NLA) | 1 | $ 3.20 | ||
| 13 | 13371-98300 Needle Valve
SKU: 13371-98300 Weight: 0.060000 Brand: Price: $ 22.14 |
Needle Valve | 1 | $ 22.14 | ||
| 14 | 13245-98900 Float Chamber
SKU: 13245-98900 Weight: 0.200000 Brand: Price: $ 58.74 |
Float Chamber | 1 | $ 58.74 | ||
| 15 | 09491-97004 Main Jet #97.5
SKU: 09491-97004 Weight: 0.060000 Brand: Price: $ 17.78 |
Main Jet #97.5 | 1 | $ 17.78 | ||
| 16-1 | 09491-92005 Main Jet #92.5
SKU: 09491-92005 Weight: 0.060000 Brand: Price: $ 11.37 |
Main Jet #92.5 | 1 | $ 11.37 | Opt: 1988 to 1997 | |
| 16-2 | 09491-20025 Main Jet #102.5
SKU: 09491-20025 Weight: 0.100000 Brand: Price: $ 16.18 |
Main Jet #102.5 | 1 | $ 16.18 | Opt: 1988 to 1997 | |
| 17 | 13631-98610 Choke Lever Knob (NLA)
SKU: 13631-98610 Weight: 0.125000 Brand: Price: $ 4.54 |
Choke Lever Knob (NLA) | 1 | $ 4.54 | ||
| 18 | 13633-98601 Choke Lever (NLA)
SKU: 13633-98601 Weight: 0.100000 Brand: Price: $ 2.32 |
Choke Lever (NLA) | 1 | $ 2.32 | ||
| 19 | 09148-06008 Nut
SKU: 09148-06008 Weight: 0.060000 Brand: Price: $ 1.30 |
Nut | 1 | $ 1.30 | ||
| 20 | 13125-98310 Carburetor Gasket
SKU: 13125-98310 Weight: 0.060000 Brand: Price: $ 3.08 |
Carburetor Gasket | 1 | $ 3.08 | ||
| 21-1 | 01411-0620A BOLT,STUD
SKU: 01411-0620A Weight: 0.200000 Brand: Price: $ 1.57 |
BOLT,STUD | 2 | $ 1.57 | 1988 to 1996 | |
| 21-2 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 1 | $ 1.74 | 1997 to 1998 | |
| 22-1 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | 1988 to 1996 | |
| 22-2 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | 1997 to 1998 | |
| 23 | 01570-06207 BOLT
SKU: 01570-06207 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 1 | $ 2.72 | 1997 to 1998 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
