Suzuki DT 4 Parts Listings 1988 to 1998

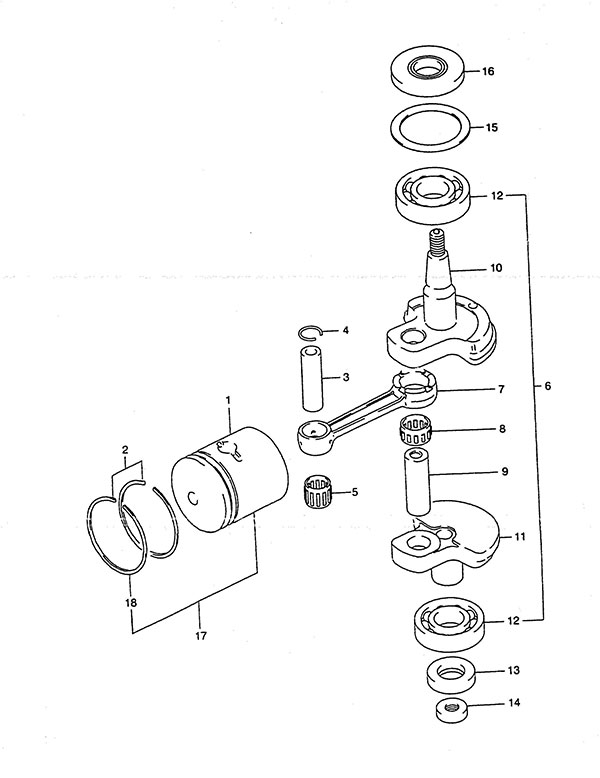

Fig. 3 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12110-98601 Piston
SKU: 12110-98601 Weight: 1.000000 Brand: Price: $ 44.17 |
Piston | 1 | $ 44.17 | ||
| 2 | 12140-99604 Piston Ring Set
SKU: 12140-99604 Weight: 0.060000 Brand: Price: $ 25.73 |
Piston Ring Set | 1 | $ 25.73 | ||
| 3 | 12151-35400 Piston Pin
SKU: 12151-35400 Weight: 0.100000 Brand: Price: $ 9.21 |
Piston Pin | 1 | $ 9.21 | ||
| 4 | 09381-12001 Piston Pin Circlip
SKU: 09381-12001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 2 | $ 1.44 | ||
| 5 | 09263-12023 Bearing (12x16x16)
SKU: 09263-12023 Weight: 0.060000 Brand: Price: $ 10.36 |
Bearing (12x16x16) | 1 | $ 10.36 | ||
| 6 | 12200-98604 Crankshaft Assembly (NLA)
SKU: 12200-98604 Weight: 5.000000 Brand: Price: $ 240.74 |
Crankshaft Assembly (NLA) | 1 | $ 240.74 | ||
| 7 | 12161-98602 Connecting Rod
SKU: 12161-98602 Weight: 1.000000 Brand: Price: $ 46.38 |
Connecting Rod | 1 | $ 46.38 | ||
| 8 | 09263-17022 Bearing (17x23x13.8)
SKU: 09263-17022 Weight: 0.250000 Brand: Price: $ 18.97 |
Bearing (17x23x13.8) | 1 | $ 18.97 | ||
| 9 | 12211-96001 Crankshaft Pin (NLA)
SKU: 12211-96001 Weight: 0.250000 Brand: Price: $ 16.37 |
Crankshaft Pin (NLA) | 1 | $ 16.37 | ||
| 10 | 12221-98600 Upper Crankshaft (NLA)
SKU: 12221-98600 Weight: 0.100000 Brand: Price: $ 51.73 |
Upper Crankshaft (NLA) | 1 | $ 51.73 | ||
| 11 | 12240-98602 Under Crankshaft (NLA)
SKU: 12240-98602 Weight: 10.000000 Brand: Price: $ 51.73 |
Under Crankshaft (NLA) | 1 | $ 51.73 | ||
| 12 | 09262-20069 Bearing (20x47x44)
SKU: 09262-20069 Weight: 0.250000 Brand: Price: $ 23.69 |
Bearing (20x47x44) | 2 | $ 23.69 | ||
| 13 | 09283-20018 Oil Seal (20x37x9)
SKU: 09283-20018 Weight: 0.060000 Brand: Price: $ 6.16 |
Oil Seal (20x37x9) | 1 | $ 6.16 | ||
| 14 | 09283-10003 Oil Seal
SKU: 09283-10003 Weight: 0.060000 Brand: Price: $ 6.36 |
Oil Seal | 1 | $ 6.36 | ||
| 15 | 09160-38001 Washer
SKU: 09160-38001 Weight: 0.125000 Brand: Price: $ 1.73 |
Washer | 1 | $ 1.73 | ||
| 16 | 09283-20045 Crankshaft Oil Seal
SKU: 09283-20045 Weight: 0.060000 Brand: Price: $ 6.84 |
Crankshaft Oil Seal | 1 | $ 6.84 | ||
| 17-1 | 12100-98601-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-98601-025 Weight: 0.100000 Brand: Price: $ 42.71 |
Piston & Ring Set (OS:0.25) (NLA) | 1 | $ 42.71 | Optional | |
| 17-2 | 12100-98601-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-98601-050 Weight: 1.000000 Brand: Price: $ 75.56 |
Piston & Ring Set (OS:0.50) (NLA) | 1 | $ 75.56 | Optional | |
| 18-1 | 12140-28630-025 Piston Ring Set (OS:0.25) (NLA)
SKU: 12140-28630-025 Weight: 0.100000 Brand: Price: $ 19.52 |
Piston Ring Set (OS:0.25) (NLA) | 1 | $ 19.52 | Optional | |
| 18-2 | 12140-28630-050 Piston Ring Set (OS:0.50)
SKU: 12140-28630-050 Weight: 0.100000 Brand: Price: $ 36.80 |
Piston Ring Set (OS:0.50) | 1 | $ 36.80 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
