Suzuki DT 8c Parts Listings 1988 to 1997

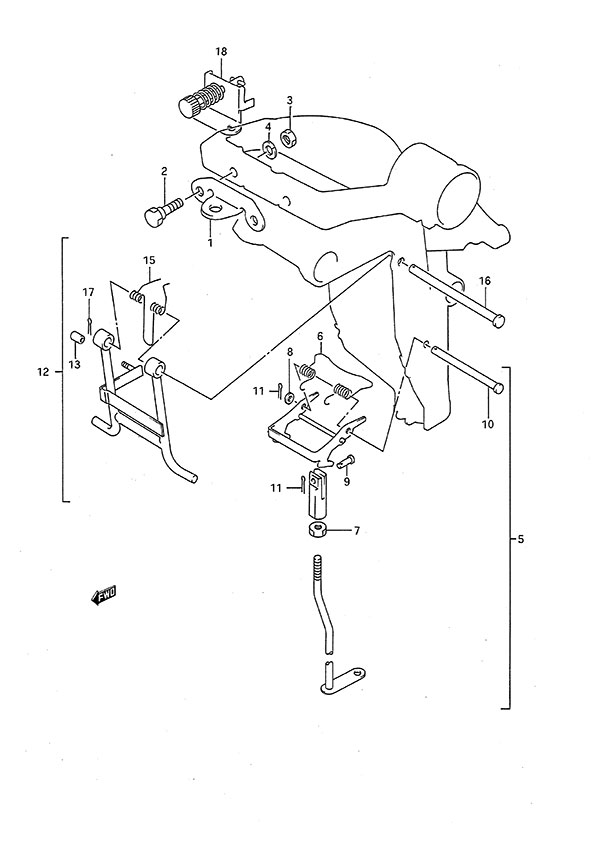

Fig. 41 - Opt: Reverse Lock Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43755-93900 Attachment Bracket (NLA)
SKU: 43755-93900 Weight: 1.500000 Brand: Price: $ 2.42 |
Attachment Bracket (NLA) | 1 | $ 2.42 | ||
| 2 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 2 | $ 5.06 | ||
| 3 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 4 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 5 | 45200-92D01 Reverse Lock Set (NLA)
SKU: 45200-92D01 Weight: 6.500000 Brand: Price: $ 56.21 |
Reverse Lock Set (NLA) | 1 | $ 56.21 | ||
| 6 | 45211-92D00 Reverse Lock Spring (NLA)
SKU: 45211-92D00 Weight: 0.100000 Brand: Price: $ 7.59 |
Reverse Lock Spring (NLA) | 1 | $ 7.59 | ||
| 7 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 8 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 9 | 09200-05007 Pin (NLA)
SKU: 09200-05007 Weight: 0.100000 Brand: Price: $ 1.76 |
Pin (NLA) | 1 | $ 1.76 | ||
| 10 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 11 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 12 | 45700-92D01 Shallow Water Drive Assy
SKU: 45700-92D01 Weight: 0.100000 Brand: Price: $ 80.46 |
Shallow Water Drive Assy | 1 | $ 80.46 | ||
| 13 | 45255-95500 Knob (NLA)
SKU: 45255-95500 Weight: 0.100000 Brand: Price: $ 2.64 |
Knob (NLA) | 1 | $ 2.64 | ||
| 15 | 45722-92D00 Spring (NLA)
SKU: 45722-92D00 Weight: 0.100000 Brand: Price: $ 6.93 |
Spring (NLA) | 1 | $ 6.93 | ||
| 16 | 09200-08066 Pin (NLA)
SKU: 09200-08066 Weight: 0.100000 Brand: Price: $ 3.04 |
Pin (NLA) | 1 | $ 3.04 | ||
| 17 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 18 | 67100-99700 Remote Control Attachment (NLA)
SKU: 67100-99700 Weight: 0.100000 Brand: Price: $ 22.58 |
Remote Control Attachment (NLA) | 1 | $ 22.58 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
