Suzuki DT 8c Parts Listings 1988 to 1997

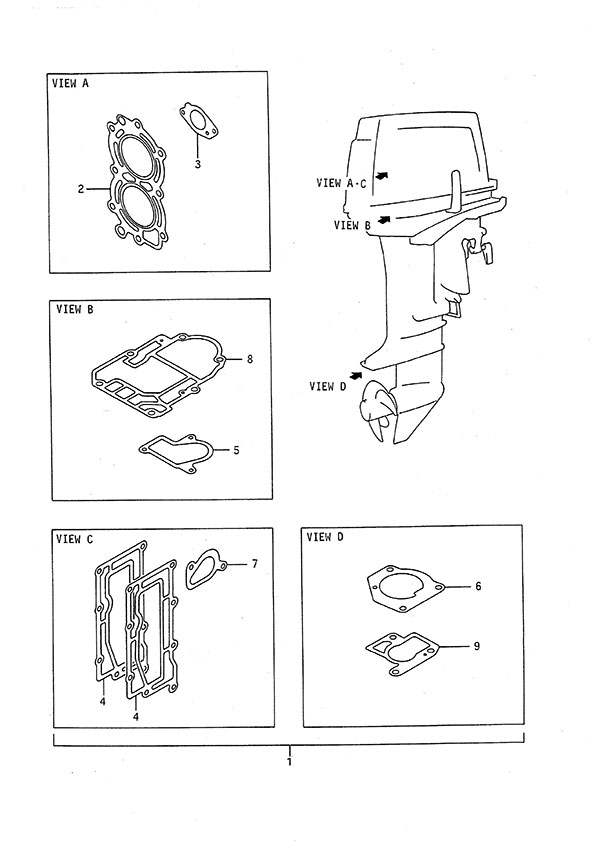

Fig. 40 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-92840 Engine Gasket Set
SKU: 11400-92840 Weight: 0.180000 Brand: Price: $ 81.04 |
Engine Gasket Set | 1 | $ 81.04 | ||
| 2 | 11141-92D20 Cylinder Head Gasket (NLA)
SKU: 11141-92D20 Weight: 0.120000 Brand: Price: $ 28.67 |
Cylinder Head Gasket (NLA) | 1 | $ 28.67 | ||
| 3 | 13125-91D00 Carburetor Gasket
SKU: 13125-91D00 Weight: 0.060000 Brand: Price: $ 3.19 |
Carburetor Gasket | 1 | $ 3.19 | ||
| 4 | 14151-92D10 Exhaust Cover Gasket (NLA)
SKU: 14151-92D10 Weight: 0.060000 Brand: Price: $ 6.94 |
Exhaust Cover Gasket (NLA) | 2 | $ 6.94 | ||
| 5 | 14213-92D10 Exhaust Tube Gasket
SKU: 14213-92D10 Weight: 0.060000 Brand: Price: $ 5.22 |
Exhaust Tube Gasket | 1 | $ 5.22 | ||
| 6 | 17472-92D10 Water Pump Plate Gasket
SKU: 17472-92D10 Weight: 0.060000 Brand: Price: $ 4.47 |
Water Pump Plate Gasket | 1 | $ 4.47 | ||
| 7 | 17685-92D10 Thermostat Gasket (NLA)
SKU: 17685-92D10 Weight: 0.060000 Brand: Price: $ 3.86 |
Thermostat Gasket (NLA) | 1 | $ 3.86 | ||
| 8 | 52113-92D20 Drive Shaft Housing Gasket (NLA)
SKU: 52113-92D20 Weight: 0.060000 Brand: Price: $ 11.92 |
Drive Shaft Housing Gasket (NLA) | 1 | $ 11.92 | ||
| 9 | 56132-92D10 Drive Shaft Bearing Housing Gasket
SKU: 56132-92D10 Weight: 0.060000 Brand: Price: $ 5.47 |
Drive Shaft Bearing Housing Gasket | 1 | $ 5.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
