Suzuki DT 8c Parts Listings 1988 to 1997

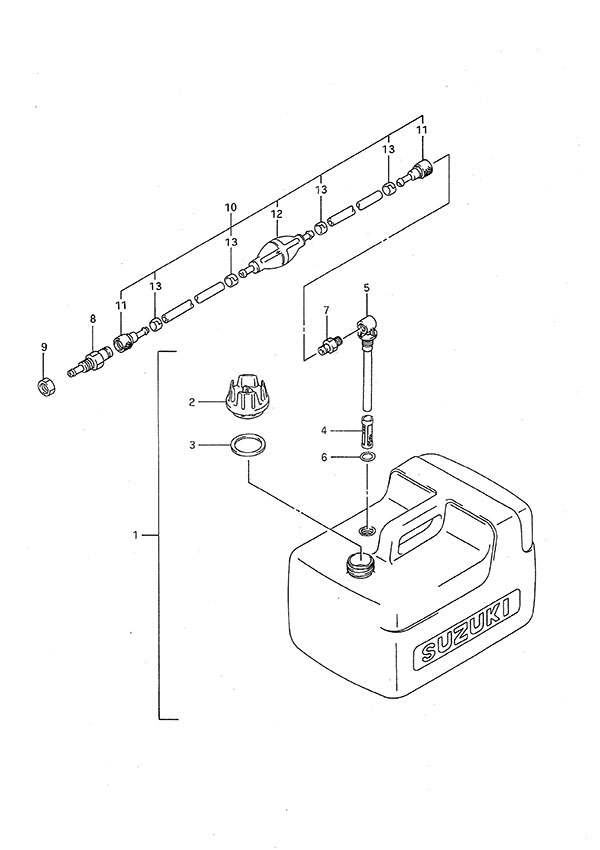

Fig. 31 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65000-99J01 3 Gallon Fuel Tank
SKU: 65000-99J01 Weight: 5.000000 Brand: Price: $ 133.96 |
3 Gallon Fuel Tank | 1 | $ 133.96 | ||
| 2 | 65520-99100 Fuel Tank Cap (NLA)
SKU: 65520-99100 Weight: 0.180000 Brand: Price: $ 4.15 |
Fuel Tank Cap (NLA) | 1 | $ 4.15 | ||
| 3 | 65561-95D00 Fuel Tank Cap Gasket
SKU: 65561-95D00 Weight: 0.125000 Brand: Price: $ 1.96 |
Fuel Tank Cap Gasket | 1 | $ 1.96 | ||
| 4 | 65831-95D00 Fuel Outlet Filter
SKU: 65831-95D00 Weight: 0.060000 Brand: Price: $ 13.54 |
Fuel Outlet Filter | 1 | $ 13.54 | ||
| 5 | 65890-99100 Outlet Assembly
SKU: 65890-99100 Weight: 0.250000 Brand: Price: $ 59.19 |
Outlet Assembly | 1 | $ 59.19 | ||
| 6 | 65892-95D00 Fuel Outlet O-Ring
SKU: 65892-95D00 Weight: 0.060000 Brand: Price: $ 4.66 |
Fuel Outlet O-Ring | 1 | $ 4.66 | ||
| 7 | 99105-00192 Fuel Tank Connector (11mm)
SKU: 99105-00192 Weight: 0.125000 Brand: Price: $ 11.26 |
Fuel Tank Connector (11mm) | 1 | $ 11.26 | ||
| 8 | 65720-985L1 Fuel Connector (11mm)
SKU: 65720-985L1 Weight: 0.080000 Brand: Price: $ 31.82 |
Fuel Connector (11mm) | 1 | $ 31.82 | ||
| 9 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 10 | 65700-95D18 Fuel Hose
SKU: 65700-95D18 Weight: 2.000000 Brand: Price: $ 194.30 |
Fuel Hose | 1 | $ 194.30 | ||
| 11 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 2 | $ 30.19 | ||
| 12 | 65770-99703 Squeeze Pump (NLA)
SKU: 65770-99703 Weight: 0.200000 Brand: Price: $ 19.84 |
Squeeze Pump (NLA) | 1 | $ 19.84 | ||
| 13 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
