Suzuki DT 8c Parts Listings 1988 to 1997

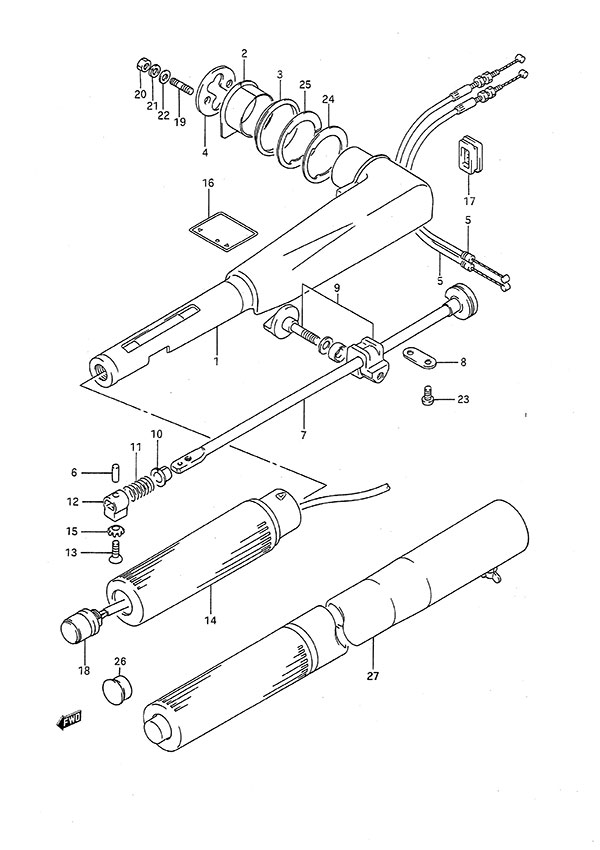

Fig. 29 - Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-92D10-0ED Tiller Handle (NLA)
SKU: 63111-92D10-0ED Weight: 1.250000 Brand: Price: $ 126.22 |
Tiller Handle (NLA) | 1 | $ 126.22 | ||
| 2 | 63115-92D01 Tiller Handle Bushing
SKU: 63115-92D01 Weight: 0.060000 Brand: Price: $ 5.38 |
Tiller Handle Bushing | 1 | $ 5.38 | ||
| 3 | 63116-92D01 Tiller Handle Bushing
SKU: 63116-92D01 Weight: 0.060000 Brand: Price: $ 5.38 |
Tiller Handle Bushing | 1 | $ 5.38 | ||
| 4 | 63125-92D01 Tiller Handle Plate (NLA)
SKU: 63125-92D01 Weight: 0.060000 Brand: Price: $ 8.44 |
Tiller Handle Plate (NLA) | 1 | $ 8.44 | ||
| 5 | 63610-92D01 Throttle Cable Assembly
SKU: 63610-92D01 Weight: 0.080000 Brand: Price: $ 17.02 |
Throttle Cable Assembly | 2 | $ 17.02 | ||
| 6 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 7 | 63220-92D03 Handle Rod (NLA)
SKU: 63220-92D03 Weight: 0.500000 Brand: Price: $ 38.48 |
Handle Rod (NLA) | 1 | $ 38.48 | ||
| 8 | 63241-92D00 Handle Rod Support (NLA)
SKU: 63241-92D00 Weight: 0.060000 Brand: Price: $ 3.18 |
Handle Rod Support (NLA) | 1 | $ 3.18 | ||
| 9 | 63240-96300 Handle Grip Adjuster
SKU: 63240-96300 Weight: 0.060000 Brand: Price: $ 13.03 |
Handle Grip Adjuster | 1 | $ 13.03 | ||
| 10 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 11 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 12 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 13 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 14 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 15 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 16 | 63215-93400 Handle Grip Mark
SKU: 63215-93400 Weight: 0.060000 Brand: Price: $ 2.14 |
Handle Grip Mark | 1 | $ 2.14 | ||
| 17 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 18-1 | 37800-89E12 Engine Stop Switch Assembly (NLA)
SKU: 37800-89E12 Weight: 0.250000 Brand: Price: $ 25.32 |
Engine Stop Switch Assembly (NLA) | 1 | $ 25.32 | 1988 | |
| 18-2 | 37800-92D22 Stop Switch Assembly (NLA)
SKU: 37800-92D22 Weight: 0.120000 Brand: Price: $ 26.13 |
Stop Switch Assembly (NLA) | 1 | $ 26.13 | 1989 to 1992 | |
| 19-1 | 09108-06062 Stud Bolt (6x12)
SKU: 09108-06062 Weight: 0.060000 Brand: Price: $ 1.62 |
Stud Bolt (6x12) | 2 | $ 1.62 | 1988 to 1995 | |
| 19-2 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 2 | $ 1.74 | 1996 to 1997 | |
| 20-1 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | 1988 to 1995 | |
| 20-2 | 09159-06079 Nut
SKU: 09159-06079 Weight: 0.250000 Brand: Price: $ 2.71 |
Nut | 2 | $ 2.71 | 1996 to 1997 | |
| 21 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 22 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | 1992 to 1996 | |
| 23 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 24 | 63117-92D00 Tiller Handle Shim
SKU: 63117-92D00 Weight: 0.060000 Brand: Price: $ 5.38 |
Tiller Handle Shim | 1 | $ 5.38 | ||
| 25 | 63118-92D00 Tiller Handle Shim (NLA)
SKU: 63118-92D00 Weight: 0.060000 Brand: Price: $ 5.52 |
Tiller Handle Shim (NLA) | 1 | $ 5.52 | 1988 to 1991 | |
| 26 | 63213-94400 Stop Switch Cap
SKU: 63213-94400 Weight: 0.060000 Brand: Price: $ 7.13 |
Stop Switch Cap | 1 | $ 7.13 | 1993 to 1997 | |
| 27 | 63300-93900 Extension Bar Assembly (NLA)
SKU: 63300-93900 Weight: 0.100000 Brand: Price: $ 122.61 |
Extension Bar Assembly (NLA) | 1 | $ 122.61 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
