Suzuki DT 8c Parts Listings 1989 to 1993

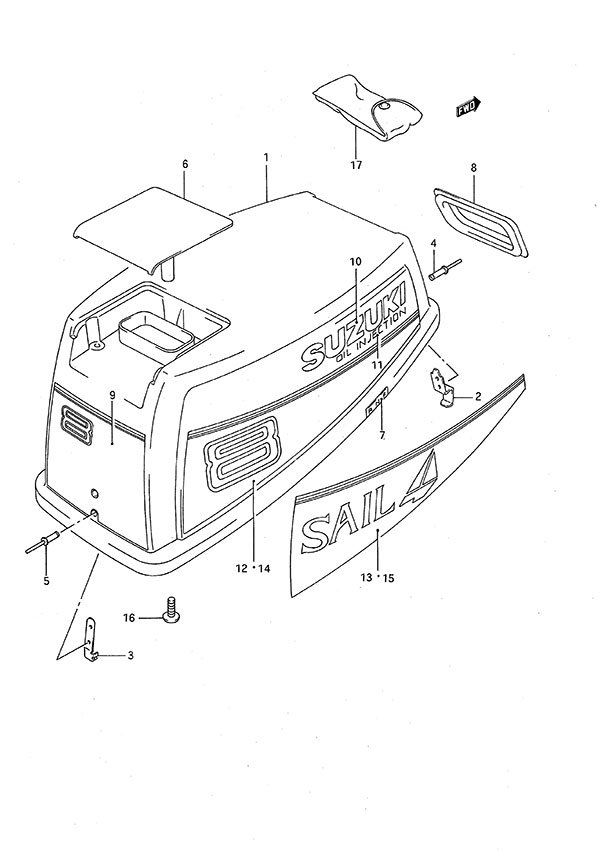

Fig. 24 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61401-92830-0ED Engine Cover Set (NLA)
SKU: 61401-92830-0ED Weight: 0.100000 Brand: Price: $ 187.68 |
Engine Cover Set (NLA) | 1 | $ 187.68 | 1989 to 1993 Sail 1992 | |
| 1-2 | 61401-92840-01T Engine Cover Set (NLA)
SKU: 61401-92840-01T Weight: 0.100000 Brand: Price: $ 190.40 |
Engine Cover Set (NLA) | 1 | $ 190.40 | ||
| 1-3 | 61401-92850-0ED Engine Cover Set (NLA)
SKU: 61401-92850-0ED Weight: 0.100000 Brand: Price: $ 181.58 |
Engine Cover Set (NLA) | 1 | $ 181.58 | Sail 1989 to 1991 | |
| 1-4 | 61401-92860-01T Engine Cover Set (NLA)
SKU: 61401-92860-01T Weight: 0.100000 Brand: Price: $ 181.58 |
Engine Cover Set (NLA) | 1 | $ 181.58 | Sail 1989 to 1991 | |
| 2 | 61412-92D00 Engine Cover Upper Hook (NLA)
SKU: 61412-92D00 Weight: 0.100000 Brand: Price: $ 2.38 |
Engine Cover Upper Hook (NLA) | 1 | $ 2.38 | ||
| 3 | 61611-92D00 Fastener (NLA)
SKU: 61611-92D00 Weight: 0.100000 Brand: Price: $ 3.18 |
Fastener (NLA) | 1 | $ 3.18 | ||
| 4 | 09229-04007 Rivet (NLA)
SKU: 09229-04007 Weight: 0.100000 Brand: Price: $ 0.95 |
Rivet (NLA) | 2 | $ 0.95 | ||
| 5 | 09229-04020 Rivet
SKU: 09229-04020 Weight: 0.100000 Brand: Price: $ 2.77 |
Rivet | 2 | $ 2.77 | ||
| 6 | 61431-92D00-0ED Tilt Up Handle (NLA)
SKU: 61431-92D00-0ED Weight: 0.100000 Brand: Price: $ 37.26 |
Tilt Up Handle (NLA) | 1 | $ 37.26 | ||
| 7 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 8 | 61622-93901 Recoil Starter Seal (NLA)
SKU: 61622-93901 Weight: 0.080000 Brand: Price: $ 7.02 |
Recoil Starter Seal (NLA) | 1 | $ 7.02 | ||
| 9-1 | 61435-92D60-70G Rear Emblem Mark (NLA)
SKU: 61435-92D60-70G Weight: 0.100000 Brand: Price: $ 7.35 |
Rear Emblem Mark (NLA) | 1 | $ 7.35 | For Gray | |
| 9-2 | 61435-92D60-8EH Rear Emblem Mark (NLA)
SKU: 61435-92D60-8EH Weight: 0.100000 Brand: Price: $ 6.23 |
Rear Emblem Mark (NLA) | 1 | $ 6.23 | For White | |
| 10-1 | 61441-98620 Suzuki Emblem (NLA)
SKU: 61441-98620 Weight: 0.200000 Brand: Price: $ 0.00 |
Suzuki Emblem (NLA) | 2 | $ 0.00 | For Gray | |
| 10-2 | 68111-47C10-019 Suzuki Emblem
SKU: 68111-47C10-019 Weight: 0.060000 Brand: Price: $ 20.62 |
Suzuki Emblem | 2 | $ 20.62 | For White | |
| 11-1 | 61442-92D00-764 Oil Injection Mark (NLA)
SKU: 61442-92D00-764 Weight: 0.060000 Brand: Price: $ 4.00 |
Oil Injection Mark (NLA) | 2 | $ 4.00 | For Gray | |
| 11-2 | 61442-92D00-019 Oil Injection Mark (NLA)
SKU: 61442-92D00-019 Weight: 0.100000 Brand: Price: $ 2.97 |
Oil Injection Mark (NLA) | 2 | $ 2.97 | For White | |
| 12 | 61443-92D60-70G Starboard Cover Decal (NLA)
SKU: 61443-92D60-70G Weight: 0.060000 Brand: Price: $ 10.56 |
Starboard Cover Decal (NLA) | 1 | $ 10.56 | For Gray | |
| 13-1 | 61443-92D70-70G Starboard Cover Decal (NLA)
SKU: 61443-92D70-70G Weight: 0.100000 Brand: Price: $ 10.04 |
Starboard Cover Decal (NLA) | 1 | $ 10.04 | For Gray | |
| 13-2 | 61443-92D70-8EH Starboard Cover Decal (NLA)
SKU: 61443-92D70-8EH Weight: 0.100000 Brand: Price: $ 9.06 |
Starboard Cover Decal (NLA) | 1 | $ 9.06 | For White | |
| 14-1 | 61453-92D60-70G Port Cover Decal (NLA)
SKU: 61453-92D60-70G Weight: 0.060000 Brand: Price: $ 10.80 |
Port Cover Decal (NLA) | 1 | $ 10.80 | For Gray | |
| 14-2 | 61453-92D60-8EH Port Cover Decal (NLA)
SKU: 61453-92D60-8EH Weight: 0.100000 Brand: Price: $ 10.15 |
Port Cover Decal (NLA) | 1 | $ 10.15 | For White | |
| 15-1 | 61453-92D70-70G Port Cover Decal (NLA)
SKU: 61453-92D70-70G Weight: 0.100000 Brand: Price: $ 10.04 |
Port Cover Decal (NLA) | 1 | $ 10.04 | For Gray | |
| 15-2 | 61453-92D70-8EH Port Cover Decal (NLA)
SKU: 61453-92D70-8EH Weight: 0.100000 Brand: Price: $ 10.15 |
Port Cover Decal (NLA) | 1 | $ 10.15 | For White | |
| 16 | 03241-0616C SCREW
SKU: 03241-0616C Weight: 0.200000 Brand: Price: $ 2.72 |
SCREW | 3 | $ 2.72 | ||
| 17 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
