Suzuki DT 8c Parts Listings 1988 to 1997

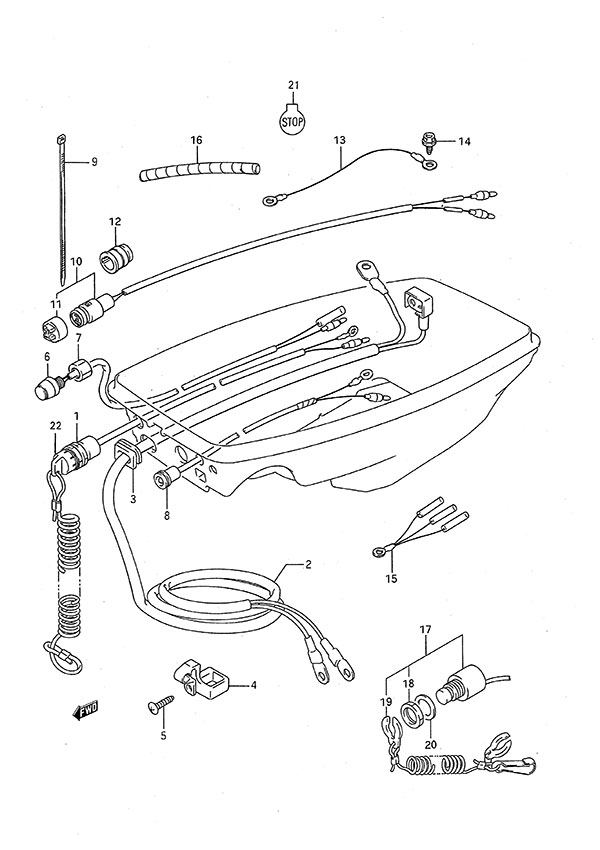

Fig. 16 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 37830-89X51 Emergency Switch Assembly (NLA)
SKU: 37830-89X51 Weight: 0.250000 Brand: Price: $ 49.45 |
Emergency Switch Assembly (NLA) | 1 | $ 49.45 | 1988 | |
| 1-2 | 37830-89E04 Stop Switch Assembly
SKU: 37830-89E04 Weight: 0.180000 Brand: Price: $ 50.66 |
Stop Switch Assembly | 1 | $ 50.66 | 1989 to 1992 | |
| 2 | 33810-92D00 Starter Cable (NLA)
SKU: 33810-92D00 Weight: 0.100000 Brand: Price: $ 38.00 |
Starter Cable (NLA) | 1 | $ 38.00 | Electric Starter | |
| 3 | 33811-96300 Grommet (NLA)
SKU: 33811-96300 Weight: 0.100000 Brand: Price: $ 1.94 |
Grommet (NLA) | 1 | $ 1.94 | Electric Starter | |
| 4 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | Electric Starter | |
| 5 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | Electric Starter | |
| 6 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | Electric Starter | |
| 7 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | Electric Starter | |
| 8-1 | 36360-89E10 Oil & Water Warning Lamp
SKU: 36360-89E10 Weight: 0.250000 Brand: Price: $ 53.41 |
Oil & Water Warning Lamp | 1 | $ 53.41 | 1988 | |
| 8-2 | 36360-92D20 Oil Level Indicator (NLA)
SKU: 36360-92D20 Weight: 0.100000 Brand: Price: $ 30.10 |
Oil Level Indicator (NLA) | 1 | $ 30.10 | 1989 to 1997 | |
| 9 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | Manual Starter | |
| 10 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | Manual Starter | |
| 11 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 12 | 39603-92D00 Receptacle Grommet (NLA)
SKU: 39603-92D00 Weight: 0.100000 Brand: Price: $ 2.11 |
Receptacle Grommet (NLA) | 1 | $ 2.11 | Manual Starter | |
| 13 | 36895-92D10 Lead (NLA)
SKU: 36895-92D10 Weight: 0.100000 Brand: Price: $ 2.97 |
Lead (NLA) | 1 | $ 2.97 | ||
| 14 | 09103-06049 Bolt (6x12) (NLA)
SKU: 09103-06049 Weight: 0.100000 Brand: Price: $ 0.72 |
Bolt (6x12) (NLA) | 1 | $ 0.72 | ||
| 15-1 | 36896-92D00 Lead (NLA)
SKU: 36896-92D00 Weight: 0.100000 Brand: Price: $ 2.97 |
Lead (NLA) | 1 | $ 2.97 | 1988 to 1993 | |
| 15-2 | 33445-94710 Lead (NLA)
SKU: 33445-94710 Weight: 0.100000 Brand: Price: $ 4.30 |
Lead (NLA) | 1 | $ 4.30 | 1994 to 1997 | |
| 16 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 17 | 37830-89E04 Stop Switch Assembly
SKU: 37830-89E04 Weight: 0.180000 Brand: Price: $ 50.66 |
Stop Switch Assembly | 1 | $ 50.66 | 1993 to 1997 | |
| 18 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | 1993 to 1997 | |
| 19 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | 1993 to 1997 | |
| 20 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | 1993 to 1997 | |
| 21 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 | ||
| 22 | 37823-94401 Emergency Stop Switch Cap
SKU: 37823-94401 Weight: 0.080000 Brand: Price: $ 16.35 |
Emergency Stop Switch Cap | 1 | $ 16.35 | Optional 1988 to 1992 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
