Suzuki DT 8c Parts Listings 1988 to 1997

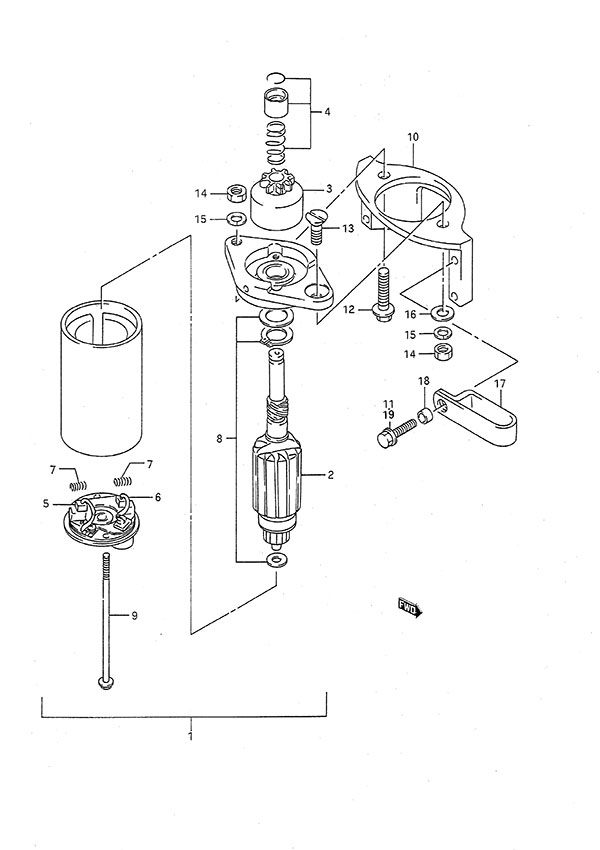

Fig. 12 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-92D11 Starter Motor Assembly (NLA)
SKU: 31100-92D11 Weight: 10.000000 Brand: Price: $ 595.31 |
Starter Motor Assembly (NLA) | 1 | $ 595.31 | ||
| 2 | 31310-92D10 Armature (NLA)
SKU: 31310-92D10 Weight: 0.100000 Brand: Price: $ 189.04 |
Armature (NLA) | 1 | $ 189.04 | ||
| 3 | 31320-92D10 Pinion Assembly (NLA)
SKU: 31320-92D10 Weight: 0.100000 Brand: Price: $ 88.73 |
Pinion Assembly (NLA) | 1 | $ 88.73 | ||
| 4 | 31312-92D10 Pinion Stopper Set (NLA)
SKU: 31312-92D10 Weight: 0.100000 Brand: Price: $ 10.62 |
Pinion Stopper Set (NLA) | 1 | $ 10.62 | ||
| 5 | 31131-89E00 Brush (+) (NLA)
SKU: 31131-89E00 Weight: 0.100000 Brand: Price: $ 6.22 |
Brush (+) (NLA) | 1 | $ 6.22 | ||
| 6 | 31132-89E00 Brush (-) (NLA)
SKU: 31132-89E00 Weight: 0.100000 Brand: Price: $ 6.22 |
Brush (-) (NLA) | 1 | $ 6.22 | ||
| 7 | 31135-92D10 Spring (NLA)
SKU: 31135-92D10 Weight: 0.100000 Brand: Price: $ 4.46 |
Spring (NLA) | 2 | $ 4.46 | ||
| 8 | 31360-92D10 Washer Kit (NLA)
SKU: 31360-92D10 Weight: 0.100000 Brand: Price: $ 4.60 |
Washer Kit (NLA) | 1 | $ 4.60 | ||
| 9 | 31281-92D10 Through Bolt (NLA)
SKU: 31281-92D10 Weight: 0.100000 Brand: Price: $ 7.23 |
Through Bolt (NLA) | 2 | $ 7.23 | ||
| 10 | 31911-92D01-0ED Starting Motor Bracket (NLA)
SKU: 31911-92D01-0ED Weight: 0.100000 Brand: Price: $ 27.95 |
Starting Motor Bracket (NLA) | 1 | $ 27.95 | ||
| 11 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 4 | $ 1.49 | ||
| 12 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 1 | $ 3.59 | ||
| 13 | 09126-08008 Screw (NLA)
SKU: 09126-08008 Weight: 0.125000 Brand: Price: $ 2.18 |
Screw (NLA) | 1 | $ 2.18 | ||
| 14 | 08310-00087 Nut (8mm)
SKU: 08310-00087 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut (8mm) | 2 | $ 1.85 | ||
| 15 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 16 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | ||
| 17 | 33816-92D00 Magneto Leads Guide (NLA)
SKU: 33816-92D00 Weight: 0.100000 Brand: Price: $ 2.62 |
Magneto Leads Guide (NLA) | 1 | $ 2.62 | ||
| 18 | 09180-06309 Spacer
SKU: 09180-06309 Weight: 0.100000 Brand: Price: $ 2.06 |
Spacer | 1 | $ 2.06 | ||
| 19 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | Manual Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
