Suzuki DT 8c Parts Listings 1988 to 1997

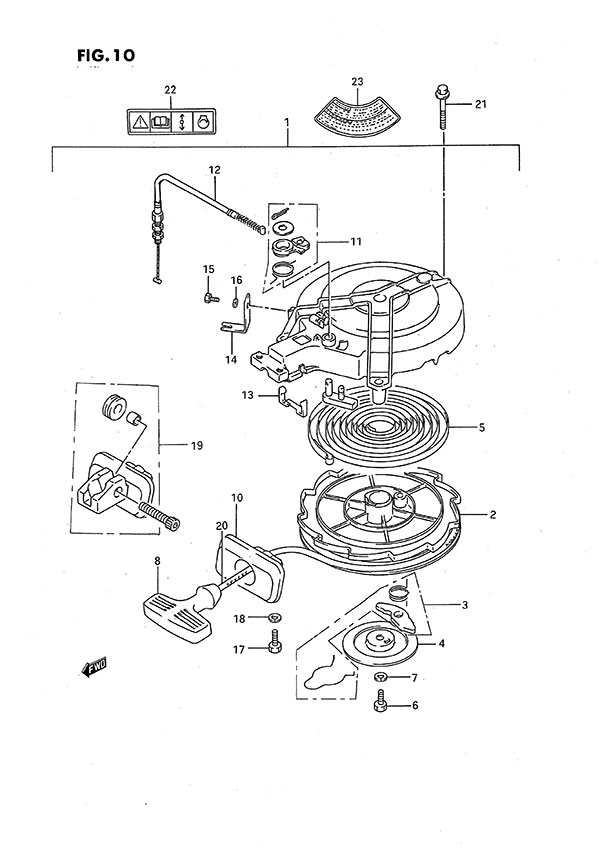

Fig. 10 - Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 18100-92D01 Recoil Starter Assembly (NLA)
SKU: 18100-92D01 Weight: 2.200000 Brand: Price: $ 156.22 |
Recoil Starter Assembly (NLA) | 1 | $ 156.22 | ||
| 2 | 18120-93900 Sheave Drum
SKU: 18120-93900 Weight: 0.500000 Brand: Price: $ 59.58 |
Sheave Drum | 1 | $ 59.58 | ||
| 1-2 | 18100-92D11 Recoil Starter Assembly (NLA)
SKU: 18100-92D11 Weight: 2.000000 Brand: Price: $ 167.50 |
Recoil Starter Assembly (NLA) | 1 | $ 167.50 | Sail | |
| 3 | 18130-93900 Ratchet Set
SKU: 18130-93900 Weight: 0.100000 Brand: Price: $ 16.19 |
Ratchet Set | 1 | $ 16.19 | ||
| 4 | 18151-93900 Plate
SKU: 18151-93900 Weight: 0.100000 Brand: Price: $ 8.60 |
Plate | 1 | $ 8.60 | ||
| 5 | 18142-93900 Recoil Spring
SKU: 18142-93900 Weight: 0.250000 Brand: Price: $ 29.96 |
Recoil Spring | 1 | $ 29.96 | ||
| 6 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 7 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 8 | 18210-93002 Grip Assembly
SKU: 18210-93002 Weight: 0.250000 Brand: Price: $ 16.38 |
Grip Assembly | 1 | $ 16.38 | ||
| 10 | 18181-93900 Rope Guide (NLA)
SKU: 18181-93900 Weight: 0.250000 Brand: Price: $ 21.91 |
Rope Guide (NLA) | 1 | $ 21.91 | ||
| 11 | 18280-93900 NSI Set
SKU: 18280-93900 Weight: 0.100000 Brand: Price: $ 12.27 |
NSI Set | 1 | $ 12.27 | ||
| 12 | 18292-92D00 Cable (NLA)
SKU: 18292-92D00 Weight: 0.100000 Brand: Price: $ 12.17 |
Cable (NLA) | 1 | $ 12.17 | ||
| 13 | 18186-92D00 Holder Guide (NLA)
SKU: 18186-92D00 Weight: 0.100000 Brand: Price: $ 4.82 |
Holder Guide (NLA) | 1 | $ 4.82 | ||
| 14 | 18295-92D00 Holder Cable (NLA)
SKU: 18295-92D00 Weight: 0.100000 Brand: Price: $ 3.10 |
Holder Cable (NLA) | 1 | $ 3.10 | ||
| 15 | 01500-06127 BOLT
SKU: 01500-06127 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 16 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 17 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 18 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 19 | 18190-92D00 Guide Set (NLA)
SKU: 18190-92D00 Weight: 0.100000 Brand: Price: $ 22.90 |
Guide Set (NLA) | 1 | $ 22.90 | Sail | |
| 20 | 99000-81159-50M Starter Rope 6mm Diameter (NLA)
SKU: 99000-81159-50M Weight: 1.000000 Brand: Price: $ 254.49 |
Starter Rope 6mm Diameter (NLA) | 1 | $ 254.49 | L:50000->1500 | |
| 21 | 29103-94400 Bolt (6x35)
SKU: 29103-94400 Weight: 0.125000 Brand: Price: $ 2.55 |
Bolt (6x35) | 3 | $ 2.55 | ||
| 22 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 23 | 61582-98110 Warning Mark (NLA)
SKU: 61582-98110 Weight: 0.100000 Brand: Price: $ 3.37 |
Warning Mark (NLA) | 1 | $ 3.37 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
