Suzuki DT 8c Parts Listings 1988 to 1997

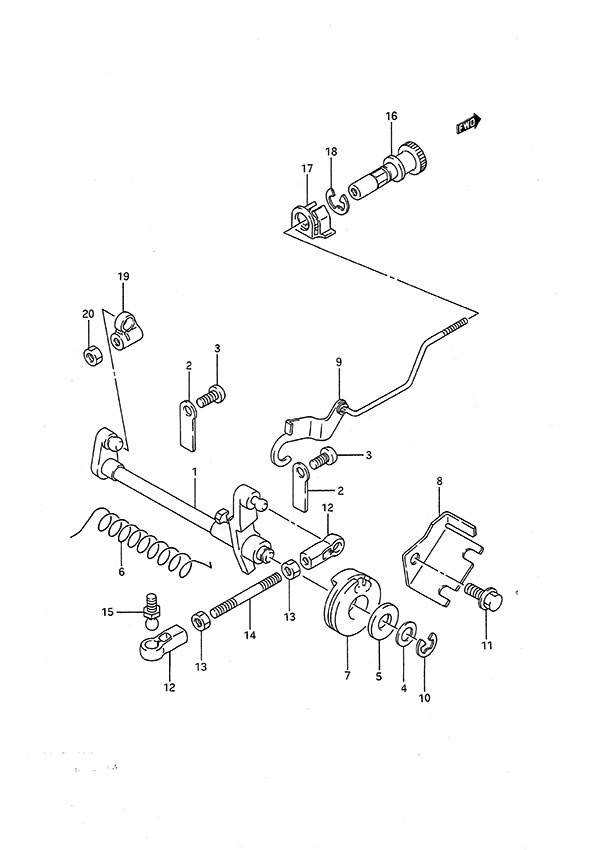

Fig. 9 - Throttle Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 19110-92D10 Throttle Shaft (NLA)
SKU: 19110-92D10 Weight: 0.200000 Brand: Price: $ 12.27 |
Throttle Shaft (NLA) | 1 | $ 12.27 | 1988 to 1990 | |
| 1-2 | 19110-92D00 Throttle Shaft (NLA)
SKU: 19110-92D00 Weight: 0.100000 Brand: Price: $ 13.06 |
Throttle Shaft (NLA) | 1 | $ 13.06 | 1991 to 1997 | |
| 2 | 19115-92D00 Throttle Shaft Holder (NLA)
SKU: 19115-92D00 Weight: 0.100000 Brand: Price: $ 0.98 |
Throttle Shaft Holder (NLA) | 2 | $ 0.98 | ||
| 3 | 02112-06107 SCREW
SKU: 02112-06107 Weight: 0.125000 Brand: Price: $ 1.44 |
SCREW | 2 | $ 1.44 | ||
| 4 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 5 | 09161-08009 Washer
SKU: 09161-08009 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer | 1 | $ 1.70 | ||
| 6 | 19117-92D00 Throttle Shaft Spring (NLA)
SKU: 19117-92D00 Weight: 0.100000 Brand: Price: $ 2.30 |
Throttle Shaft Spring (NLA) | 1 | $ 2.30 | ||
| 7 | 19148-92D00 Throttle Drum (NLA)
SKU: 19148-92D00 Weight: 0.100000 Brand: Price: $ 4.74 |
Throttle Drum (NLA) | 1 | $ 4.74 | ||
| 8 | 19184-92D01 Throttle Cable Bracket (NLA)
SKU: 19184-92D01 Weight: 0.100000 Brand: Price: $ 3.42 |
Throttle Cable Bracket (NLA) | 1 | $ 3.42 | ||
| 9 | 19830-92D00 Slow Adjust Rod (NLA)
SKU: 19830-92D00 Weight: 0.100000 Brand: Price: $ 10.83 |
Slow Adjust Rod (NLA) | 1 | $ 10.83 | ||
| 10 | 09383-07001 E Ring (NLA)
SKU: 09383-07001 Weight: 0.060000 Brand: Price: $ 0.90 |
E Ring (NLA) | 1 | $ 0.90 | ||
| 11 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 12 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 13 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 14 | 19171-92D10 Oil Pump Control Rod (NLA)
SKU: 19171-92D10 Weight: 0.100000 Brand: Price: $ 2.47 |
Oil Pump Control Rod (NLA) | 1 | $ 2.47 | ||
| 15 | 09119-05010 Pivot Ball
SKU: 09119-05010 Weight: 0.060000 Brand: Price: $ 6.97 |
Pivot Ball | 1 | $ 6.97 | ||
| 16 | 19841-92D00 Slow Adjust Knob (NLA)
SKU: 19841-92D00 Weight: 0.100000 Brand: Price: $ 4.05 |
Slow Adjust Knob (NLA) | 1 | $ 4.05 | ||
| 17 | 19845-92D01 Slow Adjust Notch (NLA)
SKU: 19845-92D01 Weight: 0.100000 Brand: Price: $ 3.11 |
Slow Adjust Notch (NLA) | 1 | $ 3.11 | ||
| 18 | 09383-08005 E Ring
SKU: 09383-08005 Weight: 0.100000 Brand: Price: $ 2.17 |
E Ring | 1 | $ 2.17 | ||
| 19 | 67467-92D00 Carb Rod Connector (NLA)
SKU: 67467-92D00 Weight: 0.060000 Brand: Price: $ 4.23 |
Carb Rod Connector (NLA) | 1 | $ 4.23 | ||
| 20 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
