Suzuki DT 8c Parts Listings 1988 to 1997

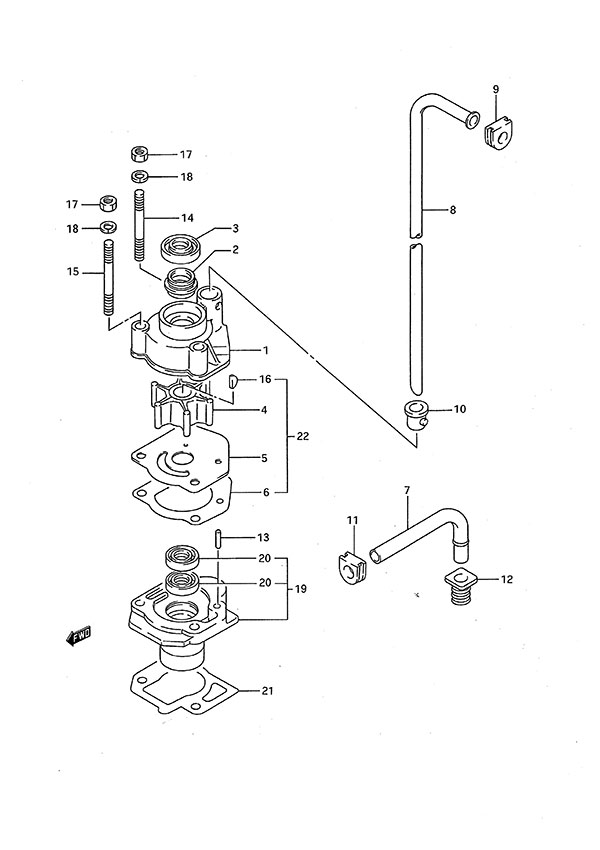

Fig. 7 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-92D00 Water Pump Case (NLA)
SKU: 17410-92D00 Weight: 0.500000 Brand: Price: $ 94.65 |
Water Pump Case (NLA) | 1 | $ 94.65 | ||
| 2 | 17417-92D00 Water Seal (NLA)
SKU: 17417-92D00 Weight: 0.060000 Brand: Price: $ 6.11 |
Water Seal (NLA) | 1 | $ 6.11 | 1992 to 1997 | |
| 3 | 09282-12008 Oil Seal (12x24x4.5)
SKU: 09282-12008 Weight: 0.060000 Brand: Price: $ 6.27 |
Oil Seal (12x24x4.5) | 1 | $ 6.27 | ||
| 4 | 17461-92D02 Water Pump Impeller
SKU: 17461-92D02 Weight: 0.060000 Brand: Price: $ 20.03 |
Water Pump Impeller | 1 | $ 20.03 | ||
| 5 | 17471-92D10 Water Pump Plate
SKU: 17471-92D10 Weight: 0.250000 Brand: Price: $ 6.03 |
Water Pump Plate | 1 | $ 6.03 | ||
| 6 | 17472-92D10 Water Pump Plate Gasket
SKU: 17472-92D10 Weight: 0.060000 Brand: Price: $ 4.47 |
Water Pump Plate Gasket | 1 | $ 4.47 | ||
| 7 | 17521-92D02 Water Inlet Tube
SKU: 17521-92D02 Weight: 0.200000 Brand: Price: $ 12.99 |
Water Inlet Tube | 1 | $ 12.99 | ||
| 8-1 | 17560-92D10 Water Tube (S) (NLA)
SKU: 17560-92D10 Weight: 0.100000 Brand: Price: $ 14.99 |
Water Tube (S) (NLA) | 1 | $ 14.99 | w/Transom (S) | |
| 8-2 | 17560-92D00 Water Tube (L) (NLA)
SKU: 17560-92D00 Weight: 0.100000 Brand: Price: $ 19.36 |
Water Tube (L) (NLA) | 1 | $ 19.36 | Type: L | |
| 8-3 | 17560-92D20 Water Tube (X) (NLA)
SKU: 17560-92D20 Weight: 0.100000 Brand: Price: $ 24.26 |
Water Tube (X) (NLA) | 1 | $ 24.26 | Type: X Sail | |
| 9 | 17563-92D01 Water Tube Grommet
SKU: 17563-92D01 Weight: 0.060000 Brand: Price: $ 3.29 |
Water Tube Grommet | 1 | $ 3.29 | ||
| 10 | 17564-93901 Water Pump Bushing
SKU: 17564-93901 Weight: 0.060000 Brand: Price: $ 2.40 |
Water Pump Bushing | 1 | $ 2.40 | ||
| 11 | 17566-92D01 Water Inlet Grommet
SKU: 17566-92D01 Weight: 0.060000 Brand: Price: $ 4.09 |
Water Inlet Grommet | 1 | $ 4.09 | ||
| 12 | 17568-92D00 Water Pump Grommet
SKU: 17568-92D00 Weight: 0.060000 Brand: Price: $ 4.12 |
Water Pump Grommet | 1 | $ 4.12 | ||
| 13 | 09202-04008 Dowel Pin (4x9)
SKU: 09202-04008 Weight: 0.060000 Brand: Price: $ 1.49 |
Dowel Pin (4x9) | 1 | $ 1.49 | ||
| 14 | 09108-06146 Stud Bolt (6x52)
SKU: 09108-06146 Weight: 0.060000 Brand: Price: $ 4.25 |
Stud Bolt (6x52) | 1 | $ 4.25 | ||
| 15 | 09108-06101 Stud Bolt (6x57)
SKU: 09108-06101 Weight: 0.200000 Brand: Price: $ 3.66 |
Stud Bolt (6x57) | 2 | $ 3.66 | ||
| 16 | 09420-03009 Key
SKU: 09420-03009 Weight: 0.060000 Brand: Price: $ 4.57 |
Key | 1 | $ 4.57 | ||
| 17 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 18 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 3 | $ 1.49 | ||
| 19 | 56130-92D02 Drive Shaft Bearing Housing
SKU: 56130-92D02 Weight: 0.220000 Brand: Price: $ 81.90 |
Drive Shaft Bearing Housing | 1 | $ 81.90 | ||
| 20 | 09282-12005 Oil Seal
SKU: 09282-12005 Weight: 0.060000 Brand: Price: $ 5.12 |
Oil Seal | 2 | $ 5.12 | ||
| 21 | 56132-92D10 Drive Shaft Bearing Housing Gasket
SKU: 56132-92D10 Weight: 0.060000 Brand: Price: $ 5.47 |
Drive Shaft Bearing Housing Gasket | 1 | $ 5.47 | ||
| 22 | 17400-92D01 Water Pump Repair Kit DT8c / DT9.9c
SKU: 17400-92D01 Weight: 0.100000 Brand: Price: $ 34.66 |
Water Pump Repair Kit DT8c / DT9.9c | 1 | $ 34.66 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
