Suzuki DT 8c Parts Listings 1988 to 1997

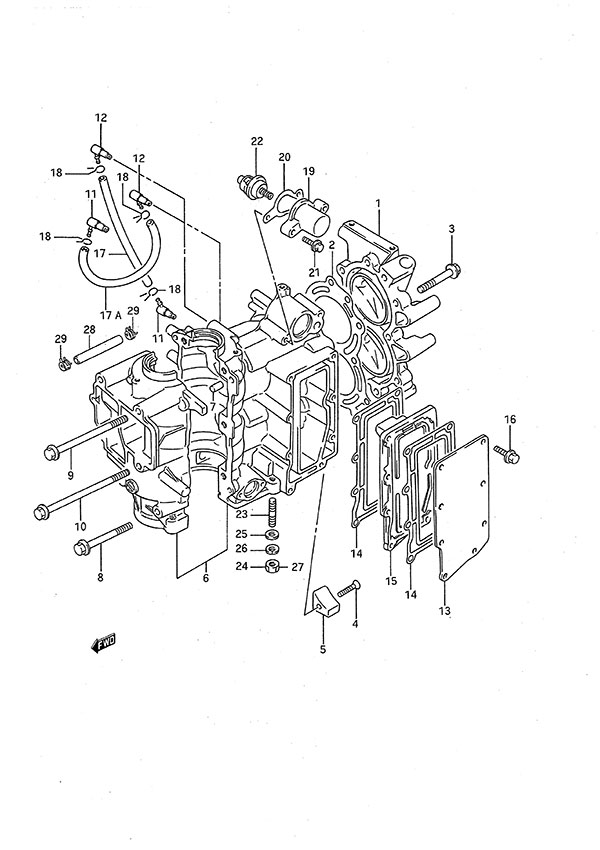

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11110-92D00-0ED Cylinder Head
SKU: 11110-92D00-0ED Weight: 10.000000 Brand: Price: $ 186.95 |
Cylinder Head | 1 | $ 186.95 | ||
| 2 | 11141-92D20 Cylinder Head Gasket (NLA)
SKU: 11141-92D20 Weight: 0.120000 Brand: Price: $ 28.67 |
Cylinder Head Gasket (NLA) | 1 | $ 28.67 | ||
| 3 | 01560-08357 BOLT
SKU: 01560-08357 Weight: 0.060000 Brand: Price: $ 3.72 |
BOLT | 8 | $ 3.72 | ||
| 4 | 09126-06005 Screw (6x30)
SKU: 09126-06005 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x30) | 1 | $ 2.12 | ||
| 5 | 11281-94400 Zinc Anode
SKU: 11281-94400 Weight: 0.100000 Brand: Price: $ 3.13 |
Zinc Anode | 1 | $ 3.13 | ||
| 6-1 | 11301-92D14-0ED Cylinder Assembly (NLA)
SKU: 11301-92D14-0ED Weight: 0.100000 Brand: Price: $ 678.69 |
Cylinder Assembly (NLA) | 1 | $ 678.69 | 1988 to 1994 | |
| 6-2 | 11301-92D17-0ED Cylinder Assembly (NLA)
SKU: 11301-92D17-0ED Weight: 0.100000 Brand: Price: $ 560.32 |
Cylinder Assembly (NLA) | 1 | $ 560.32 | S/N 461527 Newer | |
| 6-3 | 11301-92D20-0ED Cylinder Assembly (NLA)
SKU: 11301-92D20-0ED Weight: 0.100000 Brand: Price: $ 548.76 |
Cylinder Assembly (NLA) | 1 | $ 548.76 | Sail 1993 to 1994 | |
| 7 | 04221-06129 PIN 6X12
SKU: 04221-06129 Weight: 0.060000 Brand: Price: $ 1.49 |
PIN 6X12 | 2 | $ 1.49 | ||
| 8 | 01550-08507 BOLT
SKU: 01550-08507 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 2 | $ 3.61 | ||
| 9 | 01550-08857 BOLT
SKU: 01550-08857 Weight: 0.150000 Brand: Price: $ 3.00 |
BOLT | 2 | $ 3.00 | ||
| 10 | 09103-08258 Bolt (8x95) (NLA)
SKU: 09103-08258 Weight: 0.100000 Brand: Price: $ 3.14 |
Bolt (8x95) (NLA) | 2 | $ 3.14 | ||
| 11 | 16710-95D10 Oil Check Valve
SKU: 16710-95D10 Weight: 0.125000 Brand: Price: $ 18.94 |
Oil Check Valve | 2 | $ 18.94 | ||
| 12-1 | 16721-92D10 Oil Nozzle (NLA)
SKU: 16721-92D10 Weight: 0.100000 Brand: Price: $ 6.34 |
Oil Nozzle (NLA) | 2 | $ 6.34 | 1988 | |
| 12-2 | 16721-89E00 Oil Nozzle (NLA)
SKU: 16721-89E00 Weight: 0.100000 Brand: Price: $ 7.56 |
Oil Nozzle (NLA) | 2 | $ 7.56 | 1989 | |
| 12-3 | 16725-89E02 Oil Nozzle (NLA)
SKU: 16725-89E02 Weight: 0.100000 Brand: Price: $ 3.10 |
Oil Nozzle (NLA) | 2 | $ 3.10 | 1990 to 1997 | |
| 13 | 14141-92D01-0ED Exhaust Cover (NLA)
SKU: 14141-92D01-0ED Weight: 0.100000 Brand: Price: $ 52.33 |
Exhaust Cover (NLA) | 1 | $ 52.33 | ||
| 14 | 14151-92D10 Exhaust Cover Gasket (NLA)
SKU: 14151-92D10 Weight: 0.060000 Brand: Price: $ 6.94 |
Exhaust Cover Gasket (NLA) | 2 | $ 6.94 | ||
| 15 | 14131-92D00 Exhaust Plate
SKU: 14131-92D00 Weight: 0.500000 Brand: Price: $ 34.76 |
Exhaust Plate | 1 | $ 34.76 | ||
| 16 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 8 | $ 1.49 | ||
| 17 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | L:600->150 | |
| 17A | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | L:600->120 | |
| 18 | 09401-06101 Clamp
SKU: 09401-06101 Weight: 0.060000 Brand: Price: $ 2.04 |
Clamp | 4 | $ 2.04 | ||
| 19 | 17681-92D00-0ED Thermostat Cover (NLA)
SKU: 17681-92D00-0ED Weight: 0.200000 Brand: Price: $ 28.76 |
Thermostat Cover (NLA) | 1 | $ 28.76 | ||
| 20 | 17685-92D10 Thermostat Gasket (NLA)
SKU: 17685-92D10 Weight: 0.060000 Brand: Price: $ 3.86 |
Thermostat Gasket (NLA) | 1 | $ 3.86 | ||
| 21 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 2 | $ 1.49 | ||
| 22 | 17670-92D11 Thermostat 50c
SKU: 17670-92D11 Weight: 0.080000 Brand: Price: $ 47.84 |
Thermostat 50c | 1 | $ 47.84 | ||
| 23 | 09108-08219 Stud Bolt (8x25)
SKU: 09108-08219 Weight: 0.200000 Brand: Price: $ 5.08 |
Stud Bolt (8x25) | 2 | $ 5.08 | ||
| 24 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | 1988 to 1994 | |
| 25 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | 1988 to 1994 | |
| 26 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | 1988 to 1994 | |
| 27 | 09159-08104 Nut
SKU: 09159-08104 Weight: 0.100000 Brand: Price: $ 5.74 |
Nut | 2 | $ 5.74 | 1995 to 1997 | |
| 28 | 09354-53103-600 Hose (5.3x10x600)
SKU: 09354-53103-600 Weight: 0.140000 Brand: Price: $ 10.78 |
Hose (5.3x10x600) | 1 | $ 10.78 | Sail L:600->75 | |
| 29 | 09401-10411 Clip
SKU: 09401-10411 Weight: 0.060000 Brand: Price: $ 2.43 |
Clip | 2 | $ 2.43 | Sail |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
