Suzuki DT 9.9c Parts Listings 1994 to 1997

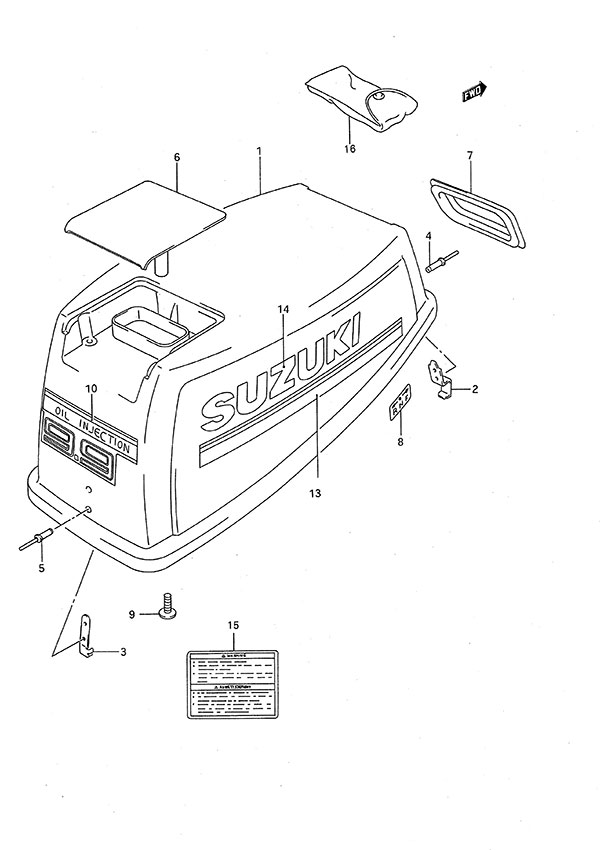

Fig. 28 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-92830-0ED Engine Cover Set (NLA)
SKU: 61410-92830-0ED Weight: 30.000000 Brand: Price: $ 173.48 |
Engine Cover Set (NLA) | 1 | $ 173.48 | ||
| 2 | 61412-92D00 Engine Cover Upper Hook (NLA)
SKU: 61412-92D00 Weight: 0.100000 Brand: Price: $ 2.38 |
Engine Cover Upper Hook (NLA) | 1 | $ 2.38 | ||
| 3 | 61611-92D00 Fastener (NLA)
SKU: 61611-92D00 Weight: 0.100000 Brand: Price: $ 3.18 |
Fastener (NLA) | 1 | $ 3.18 | ||
| 4 | 09229-04007 Rivet (NLA)
SKU: 09229-04007 Weight: 0.100000 Brand: Price: $ 0.95 |
Rivet (NLA) | 2 | $ 0.95 | ||
| 5 | 09229-04020 Rivet
SKU: 09229-04020 Weight: 0.100000 Brand: Price: $ 2.77 |
Rivet | 2 | $ 2.77 | ||
| 6 | 61431-92D00-0ED Tilt Up Handle (NLA)
SKU: 61431-92D00-0ED Weight: 0.100000 Brand: Price: $ 37.26 |
Tilt Up Handle (NLA) | 1 | $ 37.26 | ||
| 7 | 61622-93901 Recoil Starter Seal (NLA)
SKU: 61622-93901 Weight: 0.080000 Brand: Price: $ 7.02 |
Recoil Starter Seal (NLA) | 1 | $ 7.02 | ||
| 8 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 9 | 03241-0616C SCREW
SKU: 03241-0616C Weight: 0.200000 Brand: Price: $ 2.72 |
SCREW | 3 | $ 2.72 | ||
| 10 | 61435-92D81 Rear Emblem Mark (NLA)
SKU: 61435-92D81 Weight: 0.060000 Brand: Price: $ 10.05 |
Rear Emblem Mark (NLA) | 1 | $ 10.05 | ||
| 13 | 61440-98100 Engine Cover Stripe Set (NLA)
SKU: 61440-98100 Weight: 0.060000 Brand: Price: $ 22.12 |
Engine Cover Stripe Set (NLA) | 1 | $ 22.12 | ||
| 14 | 68111-43400-1RR Suzuki Emblem (NLA)
SKU: 68111-43400-1RR Weight: 0.200000 Brand: Price: $ 8.79 |
Suzuki Emblem (NLA) | 2 | $ 8.79 | ||
| 15 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | ||
| 16 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
