Suzuki DT 9.9c Parts Listings 1988 to 1997

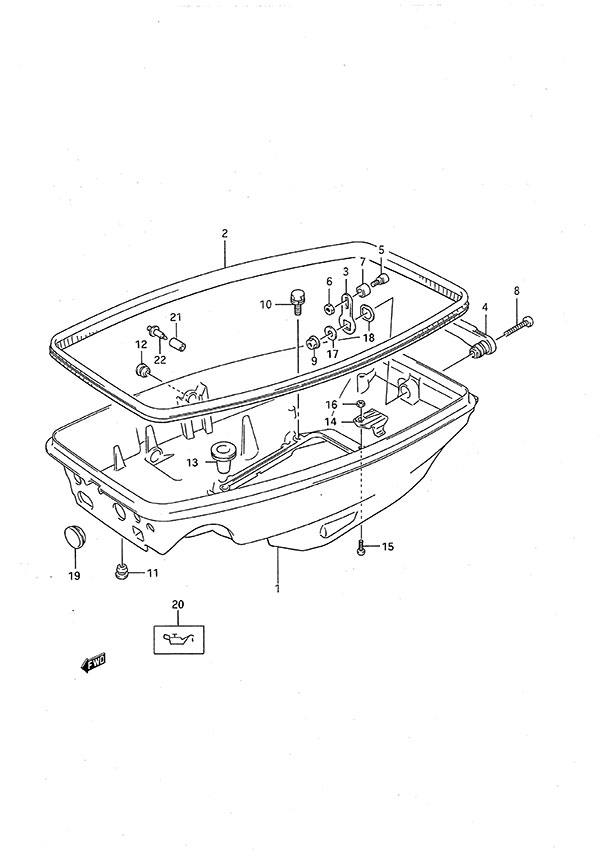

Fig. 22 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61111-92D10-0ED Lower Engine Cover (NLA)
SKU: 61111-92D10-0ED Weight: 50.000000 Brand: Price: $ 206.52 |
Lower Engine Cover (NLA) | 1 | $ 206.52 | ||
| 2 | 61112-92D00 Under Cover Seal (NLA)
SKU: 61112-92D00 Weight: 9.000000 Brand: Price: $ 24.91 |
Under Cover Seal (NLA) | 1 | $ 24.91 | ||
| 3 | 61631-92D00 Lower Engine Cover Hook (NLA)
SKU: 61631-92D00 Weight: 0.500000 Brand: Price: $ 4.05 |
Lower Engine Cover Hook (NLA) | 1 | $ 4.05 | ||
| 4 | 61633-92D01 Hook Lever (NLA)
SKU: 61633-92D01 Weight: 0.100000 Brand: Price: $ 10.08 |
Hook Lever (NLA) | 1 | $ 10.08 | ||
| 5 | 61635-98602 Lower Hook Pin
SKU: 61635-98602 Weight: 0.060000 Brand: Price: $ 6.25 |
Lower Hook Pin | 1 | $ 6.25 | ||
| 6 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 7 | 61636-98600 Lower Hook Roller
SKU: 61636-98600 Weight: 0.125000 Brand: Price: $ 3.46 |
Lower Hook Roller | 1 | $ 3.46 | ||
| 8 | 09125-06094 Screw (NLA)
SKU: 09125-06094 Weight: 0.060000 Brand: Price: $ 2.45 |
Screw (NLA) | 1 | $ 2.45 | ||
| 9 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 10-1 | 09117-06031 Bolt (6x20)
SKU: 09117-06031 Weight: 0.060000 Brand: Price: $ 3.53 |
Bolt (6x20) | 4 | $ 3.53 | 1988 to 1994 | |
| 10-2 | 09117-06046 Bolt (6x20) (NLA)
SKU: 09117-06046 Weight: 0.100000 Brand: Price: $ 1.40 |
Bolt (6x20) (NLA) | 4 | $ 1.40 | 1995 to 1997 | |
| 11 | 09250-08007 Cap
SKU: 09250-08007 Weight: 0.200000 Brand: Price: $ 2.02 |
Cap | 1 | $ 2.02 | ||
| 12 | 09250-10012 Cap (NLA)
SKU: 09250-10012 Weight: 0.060000 Brand: Price: $ 1.46 |
Cap (NLA) | 1 | $ 1.46 | 1988 to 1991 | |
| 13 | 23131-94300 Clutch Rod Boot (NLA)
SKU: 23131-94300 Weight: 0.100000 Brand: Price: $ 2.71 |
Clutch Rod Boot (NLA) | 1 | $ 2.71 | ||
| 14 | 61138-92D00 Water Cover (NLA)
SKU: 61138-92D00 Weight: 0.100000 Brand: Price: $ 2.32 |
Water Cover (NLA) | 1 | $ 2.32 | ||
| 15 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 1 | $ 1.57 | ||
| 16 | 08310-00047 Nut
SKU: 08310-00047 Weight: 0.100000 Brand: Price: $ 1.93 |
Nut | 1 | $ 1.93 | ||
| 17 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 | ||
| 18 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 1 | $ 2.04 | ||
| 19 | 09250-18003 Plug
SKU: 09250-18003 Weight: 0.125000 Brand: Price: $ 2.12 |
Plug | 1 | $ 2.12 | ||
| 20-1 | 36367-94401-019 Oil Level Label (NLA)
SKU: 36367-94401-019 Weight: 0.100000 Brand: Price: $ 1.03 |
Oil Level Label (NLA) | 1 | $ 1.03 | For White, Silver | |
| 20-2 | 36367-95D10-064 Oil/Water Lamp Label (NLA)
SKU: 36367-95D10-064 Weight: 0.100000 Brand: Price: $ 1.73 |
Oil/Water Lamp Label (NLA) | 1 | $ 1.73 | For Gray | |
| 21 | 09354-53103-600 Hose (5.3x10x600)
SKU: 09354-53103-600 Weight: 0.140000 Brand: Price: $ 10.78 |
Hose (5.3x10x600) | 1 | $ 10.78 | 1992 to 1997 L:600->15 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
