Suzuki DT 9.9c Parts Listings 1988 to 1997

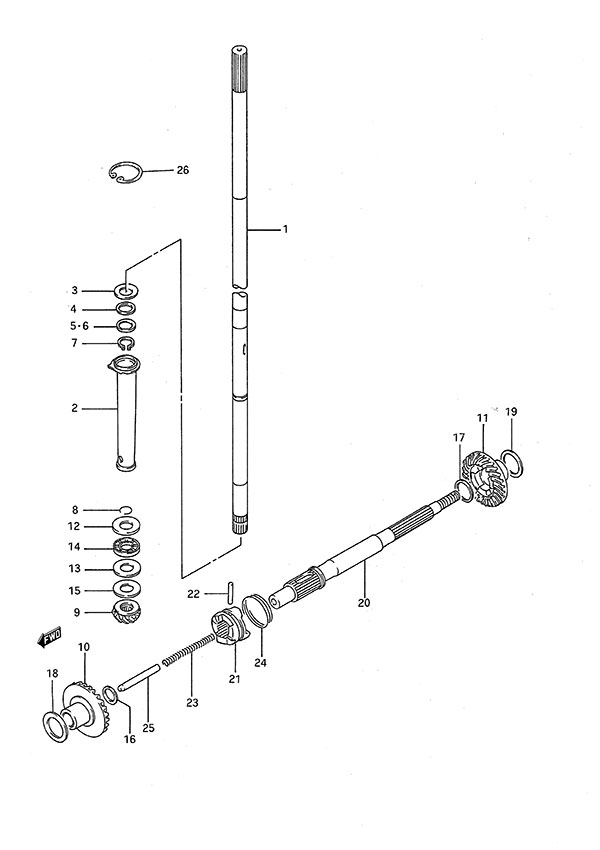

Fig. 21 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-92D15 Driveshaft Assembly (S) (NLA)
SKU: 57110-92D15 Weight: 0.100000 Brand: Price: $ 120.93 |
Driveshaft Assembly (S) (NLA) | 1 | $ 120.93 | w/Transom (S) | |
| 1-2 | 57110-92D02 Driveshaft Assembly (L) (NLA)
SKU: 57110-92D02 Weight: 0.100000 Brand: Price: $ 74.61 |
Driveshaft Assembly (L) (NLA) | 1 | $ 74.61 | Type: L S/N 012439 Older | |
| 1-3 | 57110-92D05 Driveshaft Assembly (L) (NLA)
SKU: 57110-92D05 Weight: 0.100000 Brand: Price: $ 127.77 |
Driveshaft Assembly (L) (NLA) | 1 | $ 127.77 | Type: L S/N 012440 Newer | |
| 1-4 | 57110-92D25 Driveshaft Assembly (X) (NLA)
SKU: 57110-92D25 Weight: 10.000000 Brand: Price: $ 154.05 |
Driveshaft Assembly (X) (NLA) | 1 | $ 154.05 | Type: X Sail | |
| 2 | 57133-92D02 Drive Shaft Spring Collar (NLA)
SKU: 57133-92D02 Weight: 0.100000 Brand: Price: $ 7.92 |
Drive Shaft Spring Collar (NLA) | 1 | $ 7.92 | ||
| 3 | 09181-14167 Washer (1.00)
SKU: 09181-14167 Weight: 0.200000 Brand: Price: $ 2.54 |
Washer (1.00) | 1 | $ 2.54 | ||
| 4-1 | 09181-12130 Washer (0.50)
SKU: 09181-12130 Weight: 0.200000 Brand: Price: $ 2.06 |
Washer (0.50) | 1 | $ 2.06 | 1988 to 1990 | |
| 4-2 | 09181-12130 Washer (0.50)
SKU: 09181-12130 Weight: 0.200000 Brand: Price: $ 2.06 |
Washer (0.50) | 2 | $ 2.06 | 1991 to 1997 | |
| 5 | 09181-12139 Washer (1.00) (NLA)
SKU: 09181-12139 Weight: 0.200000 Brand: Price: $ 1.64 |
Washer (1.00) (NLA) | 1 | $ 1.64 | 1988 to 1990 | |
| 6 | 09181-14162 Washer (0.80) (NLA)
SKU: 09181-14162 Weight: 0.200000 Brand: Price: $ 2.14 |
Washer (0.80) (NLA) | 2 | $ 2.14 | 1991 to 1997 | |
| 7 | 08331-3112A Circlip
SKU: 08331-3112A Weight: 0.060000 Brand: Price: $ 1.78 |
Circlip | 1 | $ 1.78 | ||
| 8 | 09380-12006 Snap Ring (NLA)
SKU: 09380-12006 Weight: 0.100000 Brand: Price: $ 0.66 |
Snap Ring (NLA) | 1 | $ 0.66 | 1988 to 1990 | |
| 9 | 57311-92D03 Pinion Gear (NLA)
SKU: 57311-92D03 Weight: 0.080000 Brand: Price: $ 54.90 |
Pinion Gear (NLA) | 1 | $ 54.90 | ||
| 10 | 57510-92D00 Forward Gear (NLA)
SKU: 57510-92D00 Weight: 0.260000 Brand: Price: $ 103.19 |
Forward Gear (NLA) | 1 | $ 103.19 | ||
| 11 | 57521-92D00 Reverse Gear (NLA)
SKU: 57521-92D00 Weight: 0.250000 Brand: Price: $ 103.19 |
Reverse Gear (NLA) | 1 | $ 103.19 | ||
| 12 | 09160-18024 Washer (NLA)
SKU: 09160-18024 Weight: 0.060000 Brand: Price: $ 15.81 |
Washer (NLA) | 1 | $ 15.81 | ||
| 13 | 09160-17044 Washer (NLA)
SKU: 09160-17044 Weight: 0.200000 Brand: Price: $ 15.81 |
Washer (NLA) | 1 | $ 15.81 | ||
| 14 | 09263-17040 Pinion Bearing (NLA)
SKU: 09263-17040 Weight: 0.060000 Brand: Price: $ 36.14 |
Pinion Bearing (NLA) | 1 | $ 36.14 | ||
| 15-1 | 09181-17214 Shim (0.50) (NLA)
SKU: 09181-17214 Weight: 0.060000 Brand: Price: $ 2.30 |
Shim (0.50) (NLA) | 1 | $ 2.30 | 1988 to 1996 | |
| 15-2 | 09181-17214 Shim (0.50) (NLA)
SKU: 09181-17214 Weight: 0.060000 Brand: Price: $ 2.30 |
Shim (0.50) (NLA) | 1 | $ 2.30 | 1997 | |
| 15-3 | 09181-17015 Shim (0.6) (NLA)
SKU: 09181-17015 Weight: 0.100000 Brand: Price: $ 1.06 |
Shim (0.6) (NLA) | 2 | $ 1.06 | 1988 to 1996 | |
| 15-4 | 09181-17215 Shim (0.6) (NLA)
SKU: 09181-17215 Weight: 0.060000 Brand: Price: $ 2.30 |
Shim (0.6) (NLA) | 2 | $ 2.30 | 1994 | |
| 15-5 | 09181-17016 Shim (0.70) (NLA)
SKU: 09181-17016 Weight: 0.100000 Brand: Price: $ 1.06 |
Shim (0.70) (NLA) | 1 | $ 1.06 | 1988 to 1996 | |
| 15-6 | 09181-17216 Shim (0.70) (NLA)
SKU: 09181-17216 Weight: 0.100000 Brand: Price: $ 2.30 |
Shim (0.70) (NLA) | 1 | $ 2.30 | 1997 | |
| 15-7 | 08221-17306 Shim (0.80) (NLA)
SKU: 08221-17306 Weight: 0.060000 Brand: Price: $ 1.15 |
Shim (0.80) (NLA) | 1 | $ 1.15 | 1988 to 1996 | |
| 15-8 | 09181-17218 Shim (0.80) (NLA)
SKU: 09181-17218 Weight: 0.100000 Brand: Price: $ 2.12 |
Shim (0.80) (NLA) | 1 | $ 2.12 | 1997 | |
| 15-9 | 09181-17017 Shim (0.90) (NLA)
SKU: 09181-17017 Weight: 0.100000 Brand: Price: $ 1.06 |
Shim (0.90) (NLA) | 1 | $ 1.06 | 1988 to 1996 | |
| 15-10 | 09181-17220 Shim (0.9) (NLA)
SKU: 09181-17220 Weight: 0.100000 Brand: Price: $ 2.30 |
Shim (0.9) (NLA) | 1 | $ 2.30 | 1997 | |
| 15-11 | 09181-17223 Thrust Washer (1.00)
SKU: 09181-17223 Weight: 0.200000 Brand: Price: $ 3.01 |
Thrust Washer (1.00) | 1 | $ 3.01 | ||
| 16 | 09160-13012 Washer (NLA)
SKU: 09160-13012 Weight: 0.060000 Brand: Price: $ 2.08 |
Washer (NLA) | 1 | $ 2.08 | ||
| 17-1 | 09160-16034 Washer (16x20x1.1) (NLA)
SKU: 09160-16034 Weight: 0.200000 Brand: Price: $ 2.40 |
Washer (16x20x1.1) (NLA) | 1 | $ 2.40 | ||
| 17-2 | 09160-16035 Washer (16x20x1.3) (NLA)
SKU: 09160-16035 Weight: 0.100000 Brand: Price: $ 2.20 |
Washer (16x20x1.3) (NLA) | 1 | $ 2.20 | ||
| 17-3 | 08211-16202 Shim (1.5) (NLA)
SKU: 08211-16202 Weight: 0.100000 Brand: Price: $ 0.91 |
Shim (1.5) (NLA) | 1 | $ 0.91 | ||
| 17-4 | 09181-16128 Shim (1.5) (NLA)
SKU: 09181-16128 Weight: 0.100000 Brand: Price: $ 2.04 |
Shim (1.5) (NLA) | 1 | $ 2.04 | 1997 | |
| 17-5 | 09160-16036 Washer (16x20x1.7) (NLA)
SKU: 09160-16036 Weight: 0.100000 Brand: Price: $ 1.61 |
Washer (16x20x1.7) (NLA) | 1 | $ 1.61 | ||
| 17-6 | 09160-16037 Washer (16x20x1.9) (NLA)
SKU: 09160-16037 Weight: 0.100000 Brand: Price: $ 1.77 |
Washer (16x20x1.9) (NLA) | 1 | $ 1.77 | ||
| 18-1 | 09181-20158 Shim (0.50)
SKU: 09181-20158 Weight: 0.060000 Brand: Price: $ 2.72 |
Shim (0.50) | 1 | $ 2.72 | 1988 to 1996 | |
| 18-2 | 09181-20158 Shim (0.50)
SKU: 09181-20158 Weight: 0.060000 Brand: Price: $ 2.72 |
Shim (0.50) | 1 | $ 2.72 | 1997 | |
| 18-3 | 09181-20028 Shim (0.60) (NLA)
SKU: 09181-20028 Weight: 0.100000 Brand: Price: $ 0.73 |
Shim (0.60) (NLA) | 2 | $ 0.73 | 1988 to 1996 | |
| 18-4 | 09181-20159 Shim (0.60) (NLA)
SKU: 09181-20159 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.60) (NLA) | 2 | $ 1.94 | 1997 | |
| 18-5 | 09181-20029 Shim (0.70) (NLA)
SKU: 09181-20029 Weight: 0.100000 Brand: Price: $ 0.63 |
Shim (0.70) (NLA) | 1 | $ 0.63 | 1988 to 1996 | |
| 18-6 | 09181-20160 Shim (0.70) (NLA)
SKU: 09181-20160 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.70) (NLA) | 1 | $ 1.94 | 1997 | |
| 18-7 | 08221-20286 Shim (0.80) (NLA)
SKU: 08221-20286 Weight: 0.060000 Brand: Price: $ 0.74 |
Shim (0.80) (NLA) | 1 | $ 0.74 | 1988 to 1996 | |
| 18-8 | 09181-20162 Shim (0.80) (NLA)
SKU: 09181-20162 Weight: 0.100000 Brand: Price: $ 1.94 |
Shim (0.80) (NLA) | 1 | $ 1.94 | 1997 | |
| 18-9 | 09181-20164 Shim (0.90)(NLA)
SKU: 09181-20164 Weight: 0.060000 Brand: Price: $ 2.07 |
Shim (0.90)(NLA) | 1 | $ 2.07 | ||
| 18-10 | 09181-20167 Shim (1.00)
SKU: 09181-20167 Weight: 0.200000 Brand: Price: $ 2.62 |
Shim (1.00) | 1 | $ 2.62 | ||
| 19-1 | 08221-22285 Shim (0.50) (NLA)
SKU: 08221-22285 Weight: 0.060000 Brand: Price: $ 0.90 |
Shim (0.50) (NLA) | 1 | $ 0.90 | 1988 to 1997 | |
| 19-2 | 09181-22130 Shim (0.50)
SKU: 09181-22130 Weight: 0.200000 Brand: Price: $ 2.95 |
Shim (0.50) | 1 | $ 2.95 | 1997 | |
| 19-3 | 09181-22004 Shim (0.60) (NLA)
SKU: 09181-22004 Weight: 0.100000 Brand: Price: $ 1.03 |
Shim (0.60) (NLA) | 2 | $ 1.03 | 1988 to 1996 | |
| 19-4 | 09181-22131 Shim (0.60) (NLA)
SKU: 09181-22131 Weight: 0.100000 Brand: Price: $ 2.14 |
Shim (0.60) (NLA) | 2 | $ 2.14 | 1997 | |
| 19-5 | 09181-22132 Shim (0.70)
SKU: 09181-22132 Weight: 0.200000 Brand: Price: $ 2.95 |
Shim (0.70) | 1 | $ 2.95 | ||
| 19-6 | 09181-22134 Shim (0.80) (NLA)
SKU: 09181-22134 Weight: 0.200000 Brand: Price: $ 2.25 |
Shim (0.80) (NLA) | 1 | $ 2.25 | ||
| 19-7 | 09181-22006 Shim (0.90) (NLA)
SKU: 09181-22006 Weight: 0.100000 Brand: Price: $ 1.11 |
Shim (0.90) (NLA) | 1 | $ 1.11 | 1988 to 1996 | |
| 19-8 | 09181-22136 Shim (0.90) (NLA)
SKU: 09181-22136 Weight: 0.100000 Brand: Price: $ 2.14 |
Shim (0.90) (NLA) | 1 | $ 2.14 | 1997 | |
| 19-9 | 09181-22139 Shim (1.00)
SKU: 09181-22139 Weight: 0.200000 Brand: Price: $ 3.01 |
Shim (1.00) | 1 | $ 3.01 | ||
| 20 | 57610-92D01 Propeller Shaft Assembly (NLA)
SKU: 57610-92D01 Weight: 0.100000 Brand: Price: $ 94.55 |
Propeller Shaft Assembly (NLA) | 1 | $ 94.55 | ||
| 21 | 57621-92D01 Clutch Dog Shifter (NLA)
SKU: 57621-92D01 Weight: 0.500000 Brand: Price: $ 25.08 |
Clutch Dog Shifter (NLA) | 1 | $ 25.08 | ||
| 22 | 09202-04018 Pin (NLA)
SKU: 09202-04018 Weight: 0.100000 Brand: Price: $ 1.66 |
Pin (NLA) | 1 | $ 1.66 | ||
| 23 | 09440-05027 Return Spring
SKU: 09440-05027 Weight: 0.100000 Brand: Price: $ 1.36 |
Return Spring | 1 | $ 1.36 | ||
| 24 | 09440-27011 Clutch Dog Spring (NLA)
SKU: 09440-27011 Weight: 0.060000 Brand: Price: $ 1.31 |
Clutch Dog Spring (NLA) | 1 | $ 1.31 | ||
| 25 | 57631-92D00 Push Rod (NLA)
SKU: 57631-92D00 Weight: 0.100000 Brand: Price: $ 6.64 |
Push Rod (NLA) | 1 | $ 6.64 | ||
| 26 | 08331-41229 Circlip
SKU: 08331-41229 Weight: 0.060000 Brand: Price: $ 2.56 |
Circlip | 1 | $ 2.56 | 1991 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
