Suzuki DT 9.9c Parts Listings 1988 to 1997

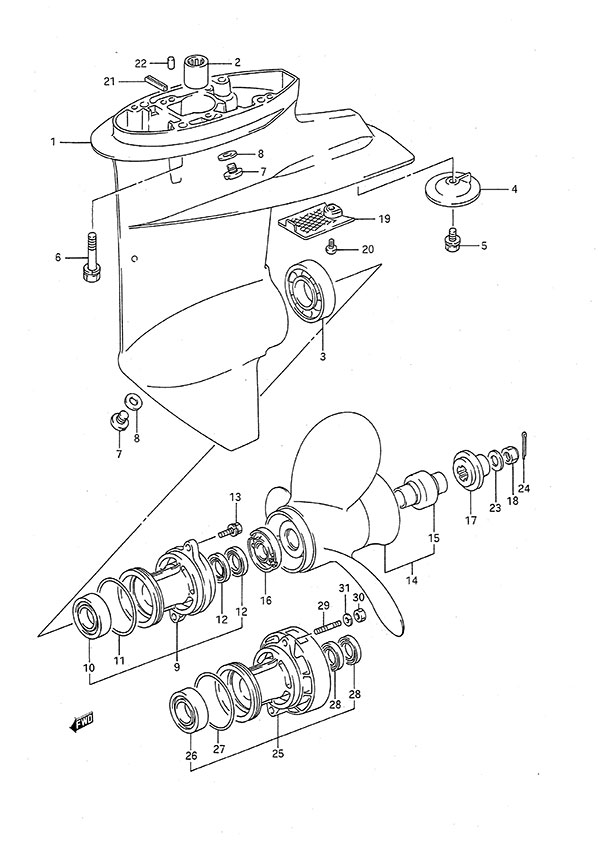

Fig. 20 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-92D01-0ED Gear Case Housing (NLA)
SKU: 55100-92D01-0ED Weight: 50.000000 Brand: Price: $ 389.35 |
Gear Case Housing (NLA) | 1 | $ 389.35 | ||
| 2 | 09263-12025 Bearing (12x19x20) (NLA)
SKU: 09263-12025 Weight: 0.200000 Brand: Price: $ 16.36 |
Bearing (12x19x20) (NLA) | 1 | $ 16.36 | ||
| 3 | 09262-20069 Bearing (20x47x44)
SKU: 09262-20069 Weight: 0.250000 Brand: Price: $ 23.69 |
Bearing (20x47x44) | 1 | $ 23.69 | ||
| 4 | 55321-939L0 Zinc Anode
SKU: 55321-939L0 Weight: 0.120000 Brand: Price: $ 4.90 |
Zinc Anode | 1 | $ 4.90 | ||
| 5 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 6 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 4 | $ 6.05 | ||
| 7 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 8 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 9 | 56120-92D00-0ED Propeller Shaft Housing (NLA)
SKU: 56120-92D00-0ED Weight: 0.600000 Brand: Price: $ 99.52 |
Propeller Shaft Housing (NLA) | 1 | $ 99.52 | ||
| 10 | 09262-22021 Bearing (22x44x12) (NLA)
SKU: 09262-22021 Weight: 0.200000 Brand: Price: $ 17.83 |
Bearing (22x44x12) (NLA) | 1 | $ 17.83 | ||
| 11 | 09280-52004 O-Ring (NLA)
SKU: 09280-52004 Weight: 0.060000 Brand: Price: $ 2.24 |
O-Ring (NLA) | 1 | $ 2.24 | ||
| 12 | 09282-16003 Oil Seal (NLA)
SKU: 09282-16003 Weight: 0.060000 Brand: Price: $ 6.99 |
Oil Seal (NLA) | 2 | $ 6.99 | ||
| 13 | 09117-06031 Bolt (6x20)
SKU: 09117-06031 Weight: 0.060000 Brand: Price: $ 3.53 |
Bolt (6x20) | 2 | $ 3.53 | ||
| 14-1 | 58100-92DL0-019 E700 Propeller 3x9x7 1/4 (NLA)
SKU: 58100-92DL0-019 Weight: 1.500000 Brand: Price: $ 156.87 |
E700 Propeller 3x9x7 1/4 (NLA) | 1 | $ 156.87 | ||
| 14-2 | 58100-92DM0-019 E800 Propeller 3x9x8 1/4
SKU: 58100-92DM0-019 Weight: 1.500000 Brand: Price: $ 175.79 |
E800 Propeller 3x9x8 1/4 | 1 | $ 175.79 | ||
| 14-3 | 58100-92D21-019 E900 Propeller 3x9x9 1/4 (NLA)
SKU: 58100-92D21-019 Weight: 1.460000 Brand: Price: $ 148.85 |
E900 Propeller 3x9x9 1/4 (NLA) | 1 | $ 148.85 | ||
| 14-4 | 58100-92D62-019 EY610 Propeller 3x10x6 1/2 (NLA)
SKU: 58100-92D62-019 Weight: 2.100000 Brand: Price: $ 134.70 |
EY610 Propeller 3x10x6 1/2 (NLA) | 1 | $ 134.70 | Sail | |
| 15 | 58120-92D01 Type E Propeller Bushing (NLA)
SKU: 58120-92D01 Weight: 0.140000 Brand: Price: $ 32.97 |
Type E Propeller Bushing (NLA) | 1 | $ 32.97 | ||
| 16 | 57632-92D00 Propeller Stopper
SKU: 57632-92D00 Weight: 0.120000 Brand: Price: $ 41.27 |
Propeller Stopper | 1 | $ 41.27 | ||
| 17 | 57633-92D00 Propeller Nut Spacer (NLA)
SKU: 57633-92D00 Weight: 0.160000 Brand: Price: $ 25.52 |
Propeller Nut Spacer (NLA) | 1 | $ 25.52 | ||
| 18-1 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | 1988 to 1994 | |
| 18-2 | 09141-10007 Nut (NLA)
SKU: 09141-10007 Weight: 0.100000 Brand: Price: $ 6.47 |
Nut (NLA) | 1 | $ 6.47 | 1995 to 1997 | |
| 19 | 17631-92D01 Water Filter
SKU: 17631-92D01 Weight: 0.060000 Brand: Price: $ 5.05 |
Water Filter | 1 | $ 5.05 | ||
| 20 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 21 | 55332-92D01 Exhaust Seal Rubber
SKU: 55332-92D01 Weight: 0.060000 Brand: Price: $ 4.33 |
Exhaust Seal Rubber | 1 | $ 4.33 | ||
| 22 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 23 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 24 | 09204-02004 Cotter Pin
SKU: 09204-02004 Weight: 0.060000 Brand: Price: $ 1.32 |
Cotter Pin | 1 | $ 1.32 | ||
| 25 | 56120-92D20-0ED Propeller Shaft Housing (NLA)
SKU: 56120-92D20-0ED Weight: 1.000000 Brand: Price: $ 99.52 |
Propeller Shaft Housing (NLA) | 1 | $ 99.52 | Sail | |
| 26 | 09262-22021 Bearing (22x44x12) (NLA)
SKU: 09262-22021 Weight: 0.200000 Brand: Price: $ 17.83 |
Bearing (22x44x12) (NLA) | 1 | $ 17.83 | Sail | |
| 27 | 09280-52004 O-Ring (NLA)
SKU: 09280-52004 Weight: 0.060000 Brand: Price: $ 2.24 |
O-Ring (NLA) | 1 | $ 2.24 | Sail | |
| 28 | 09282-16003 Oil Seal (NLA)
SKU: 09282-16003 Weight: 0.060000 Brand: Price: $ 6.99 |
Oil Seal (NLA) | 2 | $ 6.99 | Sail | |
| 29 | 09108-06106 Stud Bolt (NLA)
SKU: 09108-06106 Weight: 0.060000 Brand: Price: $ 2.11 |
Stud Bolt (NLA) | 2 | $ 2.11 | Sail | |
| 30 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | Sail | |
| 31 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | Sail |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
