Suzuki DT 9.9c Parts Listings 1988 to 1997

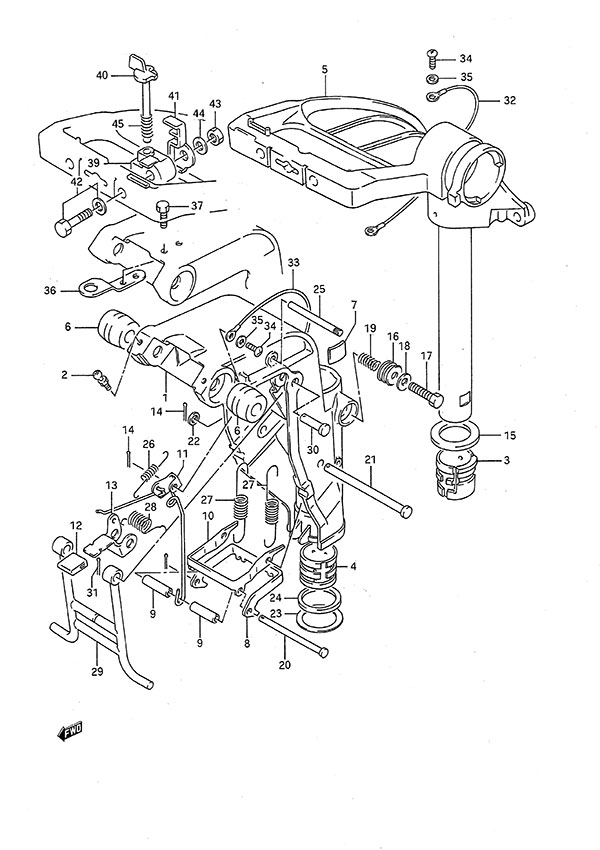

Fig. 18 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-92D30-0ED Swivel Bracket (NLA)
SKU: 43111-92D30-0ED Weight: 10.000000 Brand: Price: $ 261.35 |
Swivel Bracket (NLA) | 1 | $ 261.35 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 3 | 43710-92D00 Steering Bushing Set (NLA)
SKU: 43710-92D00 Weight: 0.250000 Brand: Price: $ 19.69 |
Steering Bushing Set (NLA) | 1 | $ 19.69 | ||
| 4 | 43712-92D00 Lower Steering Bushing (NLA)
SKU: 43712-92D00 Weight: 0.200000 Brand: Price: $ 5.90 |
Lower Steering Bushing (NLA) | 1 | $ 5.90 | ||
| 5 | 43750-92D03-0ED Steering Bracket (NLA)
SKU: 43750-92D03-0ED Weight: 3.200000 Brand: Price: $ 240.74 |
Steering Bracket (NLA) | 1 | $ 240.74 | ||
| 6 | 09306-10016 Bushing (NLA)
SKU: 09306-10016 Weight: 0.060000 Brand: Price: $ 4.74 |
Bushing (NLA) | 2 | $ 4.74 | ||
| 7 | 43411-92D00 Steering Adjuster Plate (NLA)
SKU: 43411-92D00 Weight: 0.100000 Brand: Price: $ 2.30 |
Steering Adjuster Plate (NLA) | 1 | $ 2.30 | ||
| 8 | 45231-92D00 Reverse Lock Arm (NLA)
SKU: 45231-92D00 Weight: 1.500000 Brand: Price: $ 16.27 |
Reverse Lock Arm (NLA) | 1 | $ 16.27 | ||
| 9 | 09180-05060 Spacer
SKU: 09180-05060 Weight: 0.060000 Brand: Price: $ 4.85 |
Spacer | 2 | $ 4.85 | ||
| 10 | 45241-92D00 Reverse Lock Arm Link (NLA)
SKU: 45241-92D00 Weight: 0.100000 Brand: Price: $ 10.45 |
Reverse Lock Arm Link (NLA) | 1 | $ 10.45 | ||
| 11 | 45250-92D00 Release Link (NLA)
SKU: 45250-92D00 Weight: 0.100000 Brand: Price: $ 12.60 |
Release Link (NLA) | 1 | $ 12.60 | ||
| 12 | 45255-92D10 Release Lever Rubber (NLA)
SKU: 45255-92D10 Weight: 0.125000 Brand: Price: $ 6.97 |
Release Lever Rubber (NLA) | 1 | $ 6.97 | ||
| 13-1 | 45261-92D02 Release Lever (NLA)
SKU: 45261-92D02 Weight: 0.100000 Brand: Price: $ 7.19 |
Release Lever (NLA) | 1 | $ 7.19 | ||
| 13-2 | 45261-92D11 Release Lever (NLA)
SKU: 45261-92D11 Weight: 0.100000 Brand: Price: $ 6.10 |
Release Lever (NLA) | 1 | $ 6.10 | Sail | |
| 14 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 3 | $ 1.70 | ||
| 15 | 43721-92D00 Upper Bushing Plate (NLA)
SKU: 43721-92D00 Weight: 0.100000 Brand: Price: $ 3.13 |
Upper Bushing Plate (NLA) | 1 | $ 3.13 | ||
| 16 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 17 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 18 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 19 | 09440-11022 Spring
SKU: 09440-11022 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 20 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
| 21 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 22 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 23 | 09160-30046 Washer (NLA)
SKU: 09160-30046 Weight: 0.100000 Brand: Price: $ 4.11 |
Washer (NLA) | 1 | $ 4.11 | ||
| 24 | 09284-30001 Oil Seal (NLA)
SKU: 09284-30001 Weight: 0.100000 Brand: Price: $ 3.49 |
Oil Seal (NLA) | 1 | $ 3.49 | ||
| 25 | 45254-92D00 Release Arm Pin (NLA)
SKU: 45254-92D00 Weight: 0.100000 Brand: Price: $ 2.92 |
Release Arm Pin (NLA) | 1 | $ 2.92 | ||
| 26 | 09443-08048 Spring (NLA)
SKU: 09443-08048 Weight: 0.060000 Brand: Price: $ 3.36 |
Spring (NLA) | 1 | $ 3.36 | ||
| 27 | 09443-13027 Spring (NLA)
SKU: 09443-13027 Weight: 0.060000 Brand: Price: $ 6.97 |
Spring (NLA) | 2 | $ 6.97 | ||
| 28 | 09448-13011 Spring (NLA)
SKU: 09448-13011 Weight: 0.060000 Brand: Price: $ 6.64 |
Spring (NLA) | 1 | $ 6.64 | ||
| 29-1 | 45710-92D03 Shallow Water Drive Assembly
SKU: 45710-92D03 Weight: 0.500000 Brand: Price: $ 169.63 |
Shallow Water Drive Assembly | 1 | $ 169.63 | S/N 581450 Older | |
| 29-2 | 45710-92D20 Shallow Water Drive Assembly (NLA)
SKU: 45710-92D20 Weight: 0.550000 Brand: Price: $ 85.29 |
Shallow Water Drive Assembly (NLA) | 1 | $ 85.29 | S/N 581451 Newer | |
| 30 | 09200-08065 Pin (NLA)
SKU: 09200-08065 Weight: 0.100000 Brand: Price: $ 4.62 |
Pin (NLA) | 2 | $ 4.62 | ||
| 31 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 32 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 2 | $ 12.07 | ||
| 33 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 34 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 5 | $ 1.88 | ||
| 35 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 5 | $ 2.90 | ||
| 36 | 43514-92D02 Steering Lock Plate (NLA)
SKU: 43514-92D02 Weight: 0.100000 Brand: Price: $ 7.59 |
Steering Lock Plate (NLA) | 1 | $ 7.59 | Sail | |
| 37 | 09117-05001 Bolt (NLA)
SKU: 09117-05001 Weight: 0.060000 Brand: Price: $ 1.43 |
Bolt (NLA) | 2 | $ 1.43 | Sail | |
| 39 | 43511-92D02-0ED Steering Bracket (NLA)
SKU: 43511-92D02-0ED Weight: 0.100000 Brand: Price: $ 28.52 |
Steering Bracket (NLA) | 1 | $ 28.52 | Sail | |
| 40 | 43512-92D01 Steering Lock Shaft
SKU: 43512-92D01 Weight: 0.060000 Brand: Price: $ 4.65 |
Steering Lock Shaft | 1 | $ 4.65 | Sail | |
| 41 | 43515-92D01 Steering Lock Shaft Stopper (NLA)
SKU: 43515-92D01 Weight: 0.100000 Brand: Price: $ 3.39 |
Steering Lock Shaft Stopper (NLA) | 1 | $ 3.39 | Sail | |
| 42 | 09116-08159 Bolt (8x55)
SKU: 09116-08159 Weight: 0.060000 Brand: Price: $ 3.89 |
Bolt (8x55) | 1 | $ 3.89 | Sail | |
| 43 | 09140-08019 Nut (8mm)
SKU: 09140-08019 Weight: 0.060000 Brand: Price: $ 2.02 |
Nut (8mm) | 1 | $ 2.02 | Sail | |
| 44 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 1 | $ 2.68 | Sail | |
| 45 | 09440-11008 Spring (NLA)
SKU: 09440-11008 Weight: 0.060000 Brand: Price: $ 1.22 |
Spring (NLA) | 1 | $ 1.22 | Sail |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
